DS-7332HQHI-K4 c/w HIK logo Dvr wifi reader 64 chan K1T341

16 Ports PoE Managed Ethernet Switch (UTEPO) | UTP7216E-POE-L2

Name: 16 Ports PoE Managed Ethernet Switch (UTEPO) | UTP7216E-POE-L2
Brand: Viskou E-Shop
SKU: 11.907.804.0038
Price: 584 SGD
Availability: InStock

UTP7216E-POE-L2

- 24x1000Mbps POE RJ45 + 4x1000Mbps SFP
- PoE Protocol: IEEE802.3 af/at standard,
- Max. 30W for single POE output, the total POE output consumption is 390W.
- Switch capacity: 56Gbp

S$584.00 ~~S$1,050.00~~

(Excluding GST)

Quantity

1 In Stock, Ubi

5 In Stock, Bukit batok

58 In Stock, Tuas

Add to Favorite Items

Description

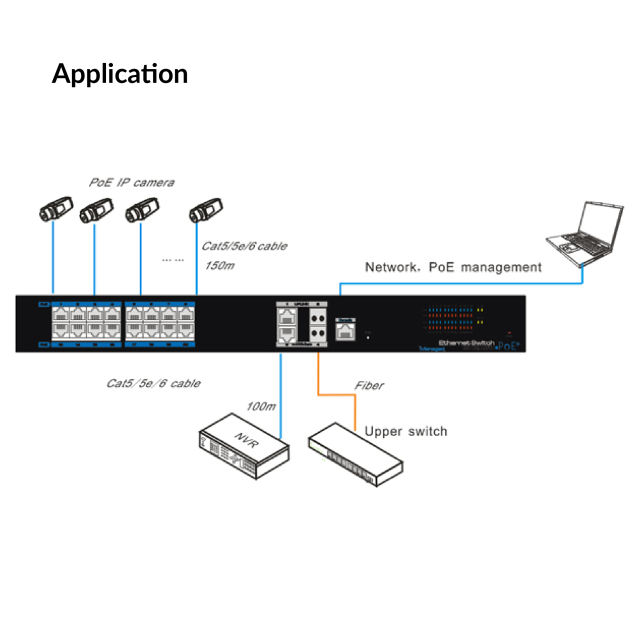

The 16-port managed PoE Ethernet switch, provides 16*100Mbps downlink PoE Ethernet ports with IEEE802.3af/at supporting and 2*1000Mpbs uplink optical ports and 2*1000Mpbs uplink Ethernet ports. The switch support Layer 2 network management and PoE management based on web and provides high-speed data forwarding. It is widely used in security surveillance, network engineering projects and so on.

Downstream Ports	16* 10/100Base-TX (PoE)
Uplink Ports	21000Base-X SFP Port and 210/100/1000Base-T
Network Standard	IEEE802.3 , IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE802.3X, IEEE 802.1Q IEEE 802.1p IEEE 802.3ad , IEEE 802.1D, IEEE 802.1X
Switching Capacity	11.2Gbps
Packet Forwarding Rate	8.33Mpps
Forwarding Modes	Store and Forward
MAC Address Table	16K
PoE Standard	802.3af/at(PSE)
PoE Power Method	End-span
PoE Line Pair	1/2(+)，3/6(-)
PoE Output Power	54V DC , 30 watts max
PoE Budget	270 watts max
Surge Immunity	6KV Execute：IEC61000-4-5
ESD Immunity	6KV Contact discharge
	8KV Air discharge
	Execute：IEC61000-4-2
Input Voltage	100~240V AC；50/60Hz
Power Consumption	＜320W(Including PoE)
