UTP7308GE-POE
8 Ports Industrial Full Gigabit PoE Managed Switch

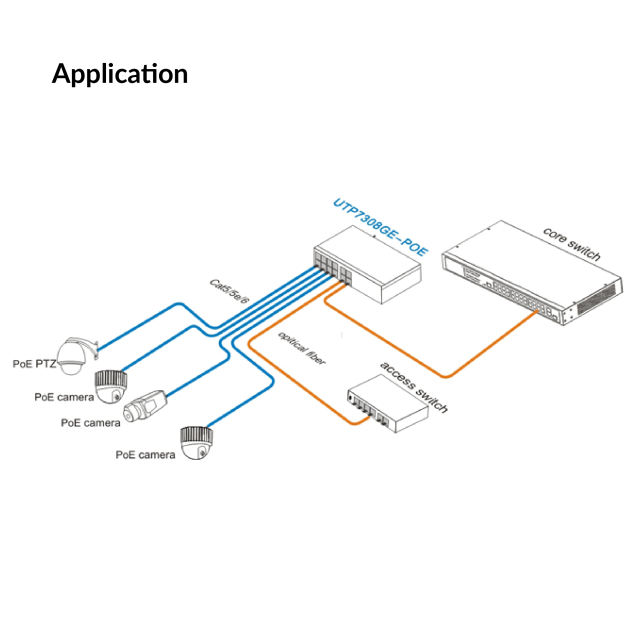

UTP7308GE-POE is 8 Ports Industrial Full Gigabit PoE Managed Switch. Provide 8* 10/100/1000Base-T RJ45 PoE ports (Microsemi PoE solution,1 port 60W,7 ports 30W), 4* 1000BASE-X SFP ports(Uplinks). The switch provides up to 4Mbit cache, Support 4K high-definition video transmission. Besides, the 8 downlink PoE ports support IEEE802.3af/at standard. It support Web-based network management, support VLAN, QoS, RSTP, SNMP etc. network function; Working temperature 40℃～75℃, strong level of protection from lightning, anti-interference. It fully satisfies the needs of security video surveillance project.
Product Specifications
| Model |
UTP7308GE-POE(MS60) |
| Downlink Ports |
8*10/100/1000Base-T PoE RJ45 ports |
| Uplink Ports |
4*1000Base-X SFP slots |
| Console Port |
1*RJ45-RS232 serial port(115200,8,N,1) |
| Init Key |
Short press:Restart; |
| >5s restore factory settings |
| Standard and Protocols |
IEEE 802.3, IEEE802.3u, IEEE 802.3ab, IEEE802.3z, IEEE802.3x, IEEE 802.3af, IEEE 802.3at, IEEE 802.1Q, IEEE 802.1D, IEEE 802.1p, IEEE 802.1x IEC61000-4-5 IEC61000-4-2 IEC61000-4-4 |
| Switching Capacity |
24Gbps |
| Packet Forwarding Rate |
18Mpps |
| Forwarding Modes |
Store and Forward |
| Packet Buffer |
4Mbit |
| MAC Address Table |
8K |
| Jumbo Frame |
10K bytes |
| PoE Standard |
802.3af/at |
| PoE Power Method |
End-span |
| PoE Line Pair |
1/2(+)，3/6(-) |
| PoE Output Power |
Microsemi PSE solution:Port T1 60W HPoE，Port T2~T8 are standard PoE(30W) |
| Alarm Signal Output by Relay |
Support relay alarm for power off, ports network link-off , ports PoE off（Set by Web Software） |
| Surge Immunity |
6KV Per: IEC61000-4-5 |
| ESD Immunity |
ESD Level 4 Per: IEC61000-4-2 |
| EFT Level 4 Per: IEC61000-4-4 |
| Input Voltage |
48~57V DC |
| Power Consumption |
Self consumption＜30W |
| Operating Temperature |
-40℃~75℃ |
| Storage Temperature |
-40℃~85℃ |
| Operating Humidity |
5%-95%（No- condensation） |

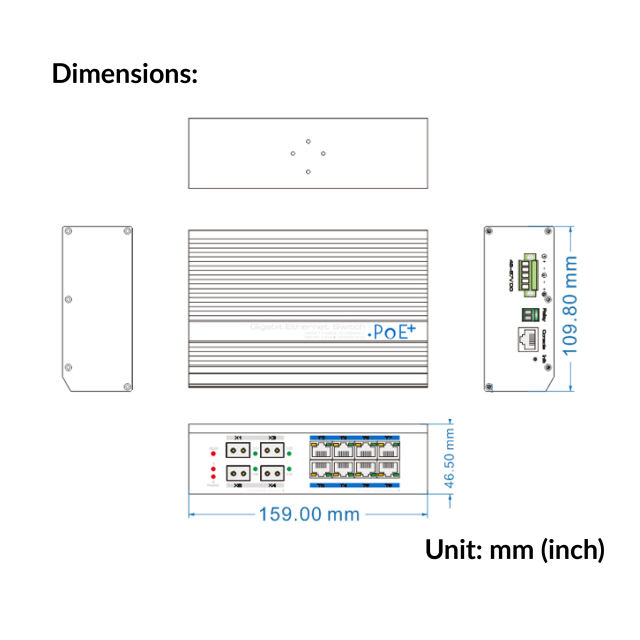

| Dimension(LxWxH) |
159mm×110mm×46.5mm |
