Single channel HD video, power transceiver (UTEPO) | UTP101PV-HD12

Name: Single channel HD video, power transceiver (UTEPO) | UTP101PV-HD12
Brand: Viskou E-Shop
SKU: TEMP632
Price: 14 SGD
Availability: InStock

UTP101PV-HD12

- Video Balun 1ch Power & HD Video UTP Transceiver
- Transmit video and provide camera power at the same time.
- HDCVI, HDTVI, AHD,

S$14.00 ~~S$25.00~~

(Excluding GST)

Quantity

32 In Stock, Ubi

47 In Stock, Bukit batok

130 In Stock, Tuas

Add to Favorite Items

Description

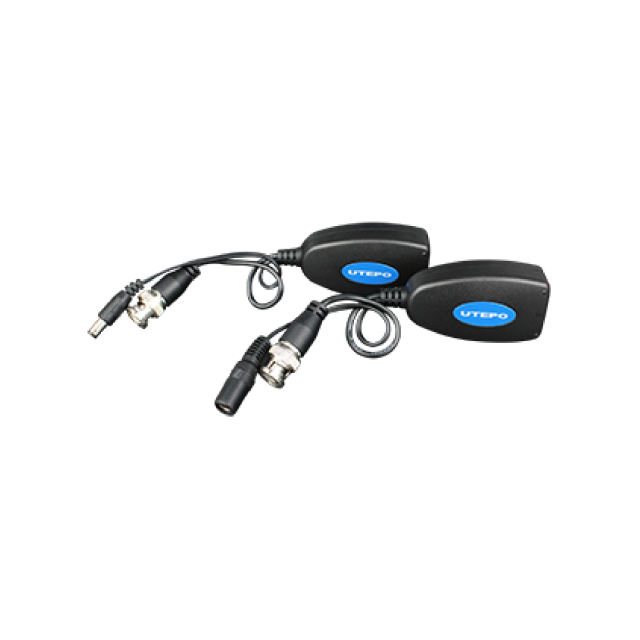

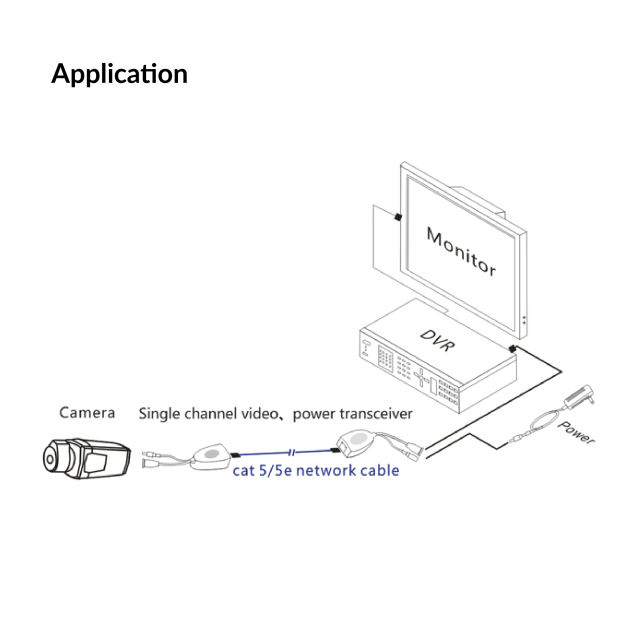

The product is a transceiver that can transmit CCTV video and power at the same time.The device conclude a transmitter and a receiver, uses cat 5/5e/6 twisted cable as transmission medium, It can real-time receive color video or mono PAL/NTSC/SECAM video or HDCVI, AHD, HDTVI HD video, also transmit DC power to 300m, supply 12V DC power to camera, simplified project wiring. In practical project ,it features long transmission distance, good transmission effect, super anti-interference.Widely used in security, teaching these complex environment.

Transmission Signal	1 channel
Transmission Distance	HDTVI-720P/1080P: 200m;4MP: 230m; 8MP: 180m;
	HDCVI-720P: 300m ; 1080P/8MP: 200m; 4MP: 250m;
	AHD: -1080P: 350m; 4MP: 250m; 5MP: 180m; 8MP: 300m;
	Analog video: 600m;
Coaxial Video Port	Male BNC
Twisted-pair Video Port	1*RJ45 port
Video Compatibility	HDCVI/HDTVI/AHD/Analog,
	PAL/NTSC/SECAM Video
Bandwidth	0～50MHz
Anti-interference	>60dB
Coaxial Port Protection	2KV(common-mode)
	Per: IEC61000-4-5
Twisted pair video port protection	2KV(different-mode)4KV(common-mode)
ESD	1a Contact discharge level 3
	1b Air discharge level 3
	Per: IEC61000-4-2
Operating Temperature	0～55℃
Storage Temperature	-20℃~70℃
Humidity	0～95% Non-condensing

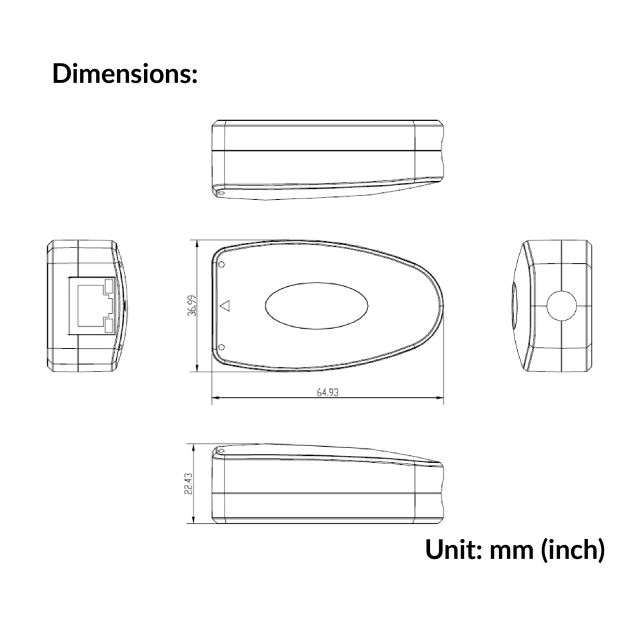

Size	79mm×36mm×22mm（with connector )
Shell	ABS proiect plastic
Weight	42g
