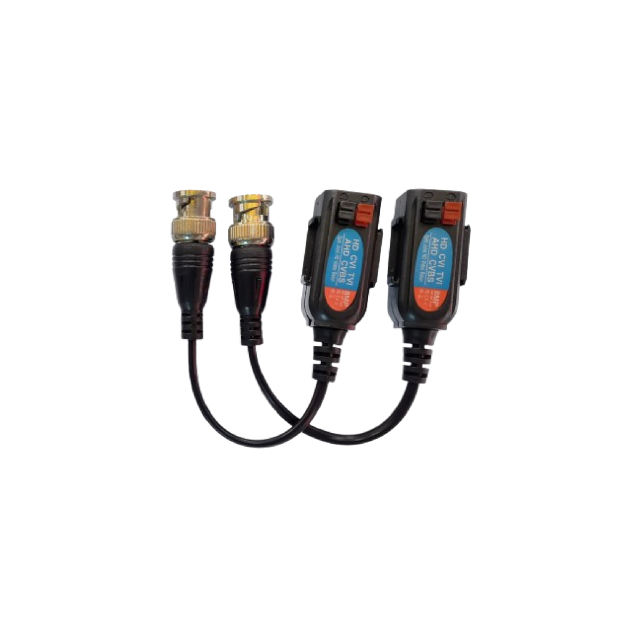

MESILIX Single Channel HD-Video Power Transceiver | MS-XA-MSLHD12

Name: MESILIX Single Channel HD-Video Power Transceiver | MS-XA-MSLHD12
Brand: Viskou – Connecting Intelligence, Powering The Future
SKU: VEMP103826
Price: 15 SGD
Availability: InStock

MS-XA-MSLHD12(Video Balun with Power)

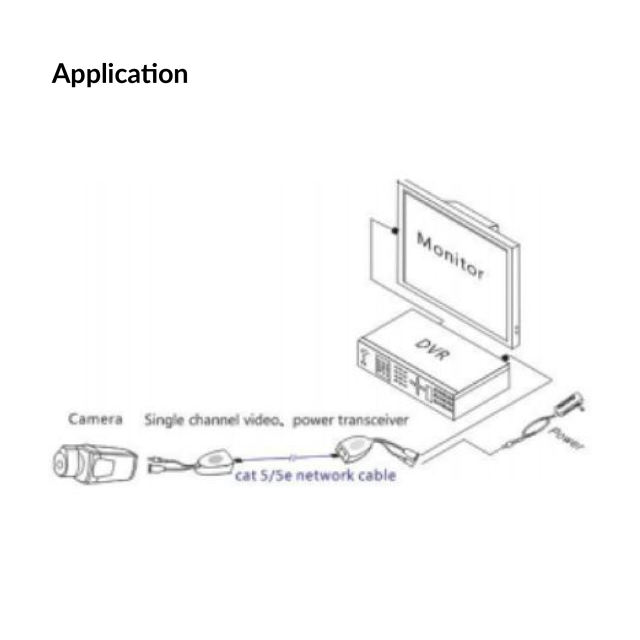

- Supply 12V DC power to camera,simplified project wiring.
- With extend coaxial cable,easy to install DVR,RJ45、BNC、DC.
- Real-time transmit color video or mono PAL/NTSC/SECAM and HDCVI、AHD、HDTVI HD video,also transmit DC power to 300m.

S$15.00 ~~S$30.00~~

(Excluding GST)

Add to Favorite Items

Description

MS-XA-MSLHD12(Video Balun with Power)
MESILIX Single Channel HD-Video Power Transceiver

Product Specifications

Parameters	Specifications
Transmission signal	1 channel
	HDTVI-720P/1080P:200m;4MP:230m;8MP:180m:
	HDCVI-720P:300m;1080P/8MP:200m;4MP:250m;
	AHD:-1080P:350m;4MP:250m;
Transmission Distance	5MP:180m;8MP:300m;
	Analog video:600m;
	4MP:270m;8MP:250m
	AnalogVideo:500m;
Coaxial Video Port	Male BNC
Twisted-pair Video Port	1*RJ45 port
Video Compatibility	HDCVI/HDTVI/AHD/Analog,PAL/NTSC/SECAM Video
Bandwidth	0~50MHz
Anti interference	>60dB
Coaxial Port Protection	2KV(common-mode)
	Per:IEC61000-4-5
Twisted pair video port protection	2KV(different-mode) 4KV(common-mode)
ESD	1a Contact discharge level 3
	1b Air discharge level 3
	Per:IEC61000-4-2
Working Temperature	0~55°C
Storage Temperature	-20°C~70°C
Humidity	0~95% Non-condensing
Size	79mm×36mm×22mm(with connector)
Shell	ABS project plastic
Weight	42g

Datasheet

Download Datasheet
