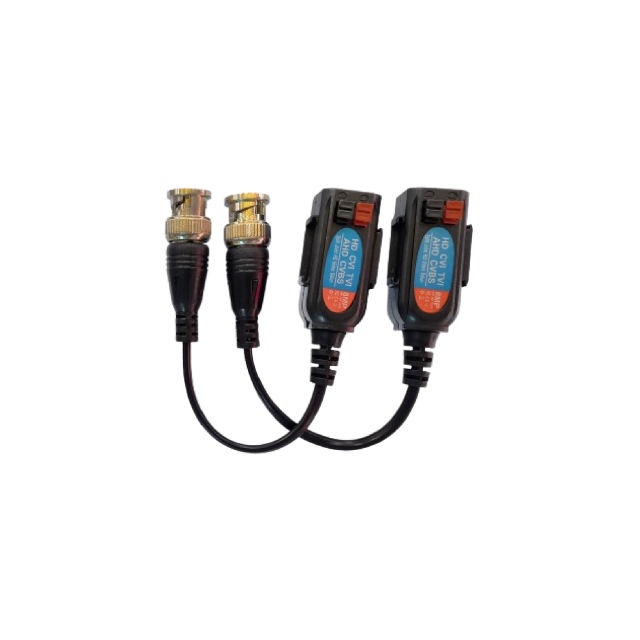

MESILIX Passive Analog HD-Video Transceiver | MS-XA-MSLHD6

Name: MESILIX Passive Analog HD-Video Transceiver | MS-XA-MSLHD6
Brand: Viskou – Connecting Intelligence, Powering The Future
SKU: VEMP103825
Price: 5 SGD
Availability: InStock

MS-XA-MSLHD6 (Video Balun)

- Excellent anti-interference,surge protection,ESD protection.
- Built-in extended coaxial cable,convenient for intensive engineering projects.
- Plug-and-play; Real-time and stable HDCVI/HDTVI/AHD/Analog transmission result.

S$5.00 ~~S$10.00~~

(Excluding GST)

Add to Favorite Items

Description

MS-XA-MSLHD6 (Video Balun)
MESILIX Passive Analog HD-Video Transceiver

Product Specifications

Parameters	Specifications
Video Port	1 channel
	HDCVI-720P:400m;1080P:250m;
	4MP:250m;8MP:200m
	HDTVI-720P:250m;1080P:250m;
Recommend Transmission Distance	4MP:200m;8MP:160m
(with passive product)	AHD-720P:300m;1080P:300m
	4MP:270m;8MP:250m
	AnalogVideo:500m;
Coaxial Video Port	Male BNC
Twisted-pair Video Port	2-channel pushing terminal
Video Compatibility	HDCVI/HDTVI/AHD/Analog,PAL/NTSC/SECAM Video
Bandwidth	0~75MHz
Surge Protection	2KV Per:IEC61000-4-5
ESD	Level 3,1a Contact Discharge,Level 3,1b Air Discharge
Working Temperature	-10~55°C
Storage Temperature	-40°C~85°C
Humidity (Non condensing)	0~95%
Out Shell	ABS
Weight	20g

Datasheet

Download Datasheet
