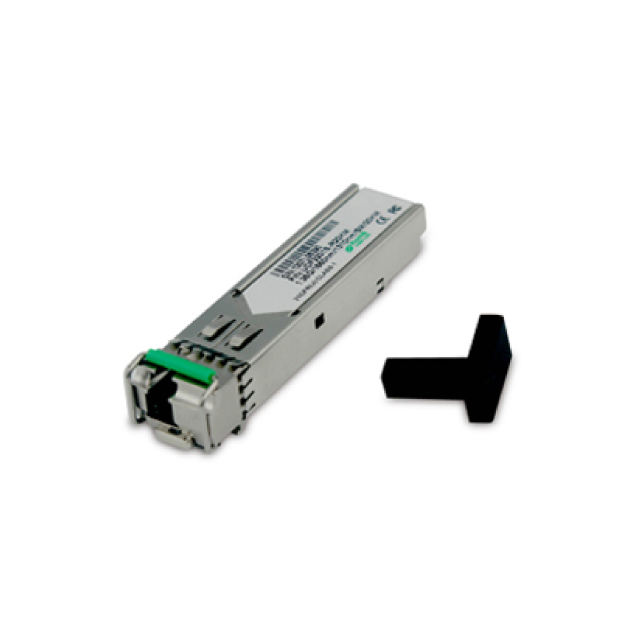

SFP Optical Module (UTEPO) | SFP-1.25G-20KM
- Dual Fiber, 10G
- LC Port, 1310, 10km
Power |
Power Supply |
The Host Power Supply |
|
Voltage Range |
DC 3.15V~3.45V |
|
Consumption |
1W |
Optical Characteristics |
Optical Wave Length |
1310nm |
|
Emission Light Power |
-8~-3dBm |
|
Receiver Sensitivity |
-24 dBm |
Transmission Characteristics |
Optical Fiber Type |
Single mode 9/125um |
|

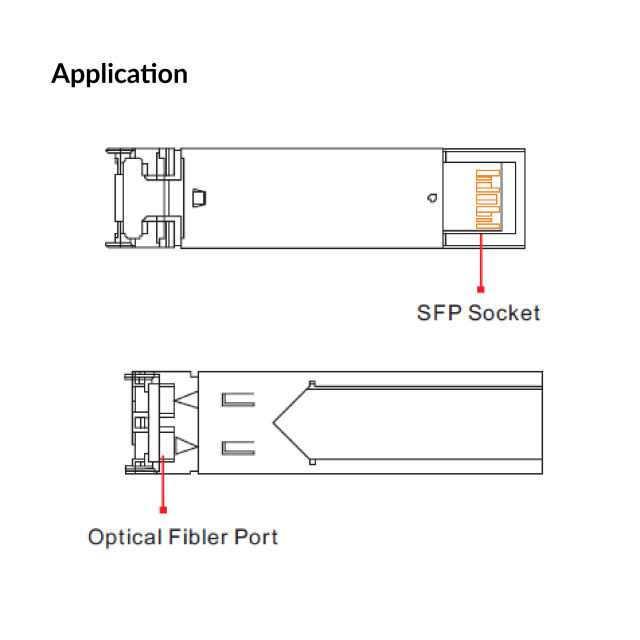

Optical Fiber Port |
LC |
|
Transmission Distance |
Single mode 20km |
Protection |
ESD |
1a contact discharge 3 level |
|
|
1b air discharge 3 level |
|
|
Per: IEC61000-4-2 |
Environmental |
Working Temperature |
0℃~70℃ |
|
Storage Temperature |
-40℃~70℃ |
|
Humidity (Non- |
0~95% |
Mechanical |

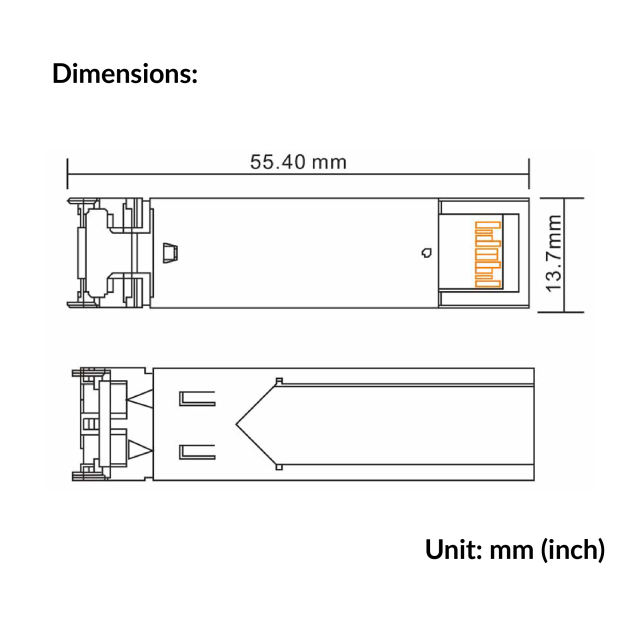

Dimension (L×W×H) |
55.4mm×13.7mm×6.25mm |
|
Material |
Stainless steel |
|
Color |
White |
|
Weight |
17g |
