Parameters
|
Specifications
|
Power supply
|
DC Input: 48V-56V/2A; PoE 44V-56V
Output: POC 44V-56V
Power Consumption ≥ 3W
|
Transmission
|
Transmission medium: Elevator traveling cable, coaxial cable, twisted pair
Transmission distance: Max 2000M
Maximum Link Rates 90Mbps
Multicast: Support IGMP multicast protocol
RS485: Baud rate: 9600,115200 optional
Ethernet: 10Mbps/100Mbps adaptive
|
Connectors
|
DC Input: 2.1- 5.5mm plug
DC Output: RJ45(1,2,4,5) positive; (3,6,7,8) negative
Ethernet (data): RJ45(1,2 and 3,6)
Two- wire signal input and output: 5.08mm ×2 Bolt-on Industrial Terminal
Blocks/BNC/RJ45
Ground: RS485: 5.08mm ×3 Bolt-on Industrial Terminal Blocks
|
LED Indicators
|
Power: Lights up after power on
RJ45 Yellow/POE indicator light, lights up after PD is turned on
RJ45 Green/Network communication indicator, flashing during communication
|
Link
|
Signal connection light, lights up when the master-slave signal is connected, and turns off when the master-slave signal is not connected
|
Master
|
The host indicator light will light up after power on if the switch is turned to M before power on,and will not light up after power on if the switch is turned to S before power on
|
PoE Standard
|
IEEE802.3 at/af Both supports
|
Maximum Power
|
Up to 30W
|
Operation TEMP/Humidity
|
-20~+70°C/ 0%~95% RH non condensing
|
Storage Temperature/Humidity
|
-40~+85°C/ 0%~95% RH non condensing
|
Dimensions
|
(excluding interface dimensions): 121x74.4x29(mm)
|
Weight
|
160g
|
Warranty
|
1-year warranty
|

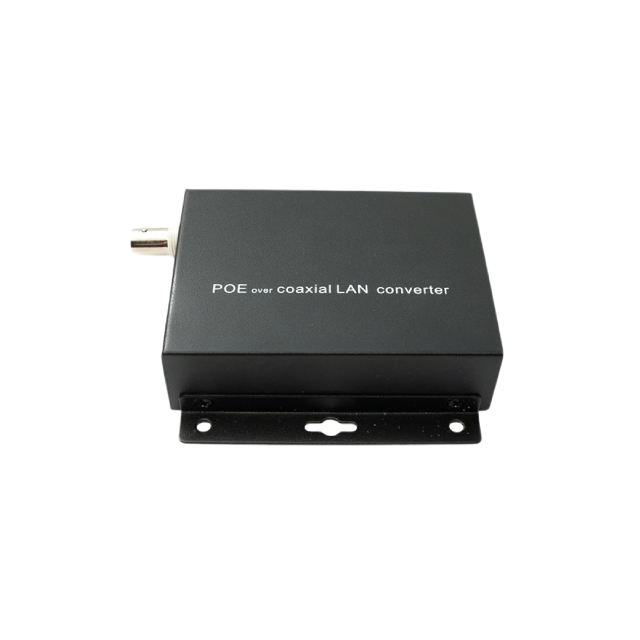

![MESILIX PoE Extender[1 pair] | MS-XA-MSLCOX502](http://ueeshop.ly200-cdn.com/u_file/UPAS/UPAS234/2501/06/products/a77b4bdf07.jpg?x-oss-process=image/quality,q_80/resize,m_lfit,h_640,w_640)
