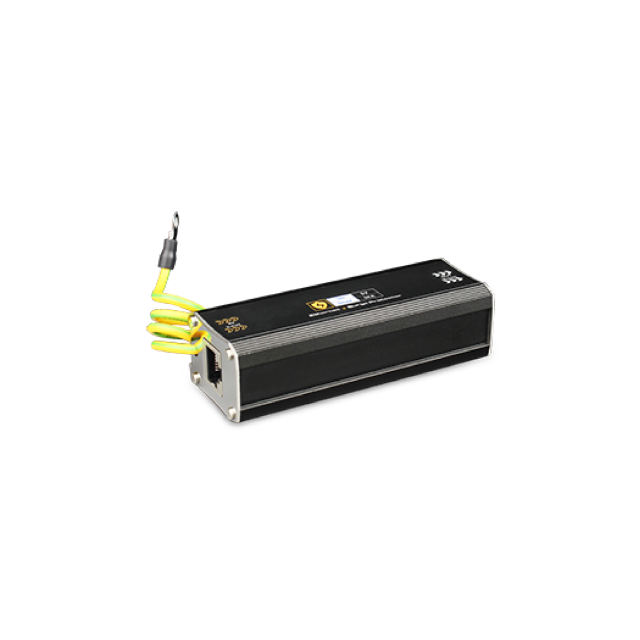

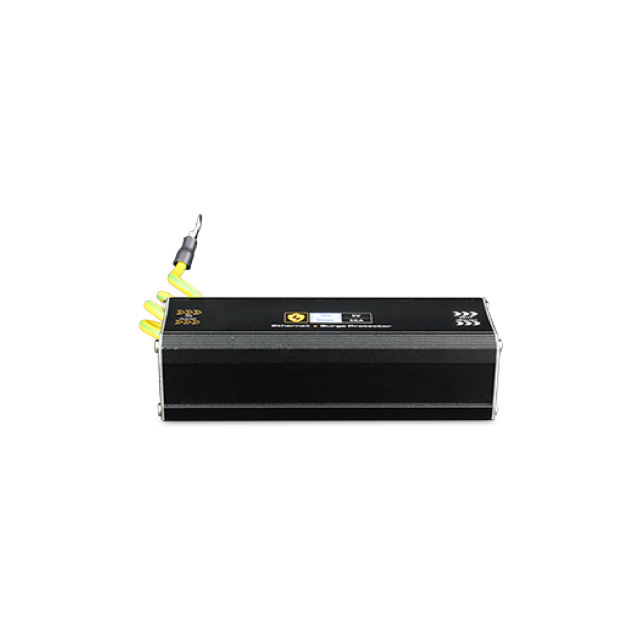

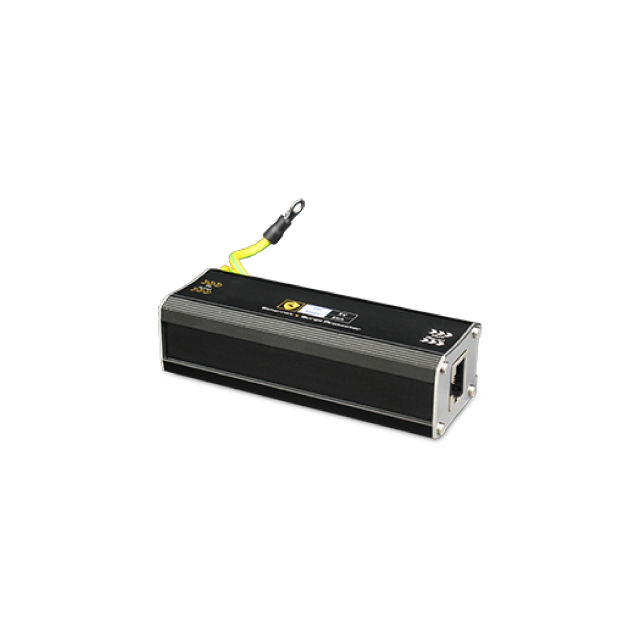

Gigabit PoE Surge Protector | USP201GE-POE
- Support multi-function multi-level over voltage protection
- Grounding mode: the extension cord is directly connected to ground
- Aluminium shell design, compact size and convenient installation
The surge protector is designed for gigabit network PoE signal lightning protection, which can provide network and power lightning protection for other devices.
The device performs an excellent surge protection for data and power protection of IP camera by providing over-voltage protections, to prevent damage caused by induction over-voltage, operating over-voltage and electrostatic discharge. It has the advantages of multi-level protection, large current capacity, low limit voltage, fast response time, and small insertion loss. It can be widely used in security video surveillance, environmental monitoring field and so on.
Working voltage(Un) |
5V |
Nominal discharge current(In) |
3KA |
Maximum discharge current(Imax) |
5KA |
Protection level(Up) |
25V |
Rate |
10/100/1000Mbps |
Response Time |
1ns |
Insertion loss |
0.5dB |
Connector |
RJ45 |
Working voltage(Un) |
48V |
Maximum surge voltage |
4KV |
Surge life |
30,000 @4KV |
Nominal discharge current(In) |
3KA |
Maximum discharge current(Imax) |
5KA |
Protection level (Up) |
200V |
Weight |
100g |
Dimension (L W H) |
100mm 37mm 27mm |
Outer shell |
Aluminium |
