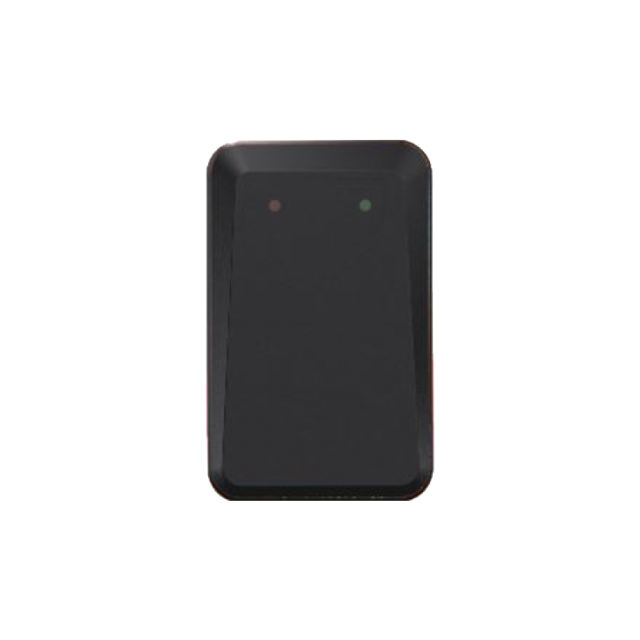

Entrance & Exit Radar | DS-TMG035

Name: Entrance & Exit Radar | DS-TMG035
Brand: Viskou – Connecting Intelligence, Powering The Future
SKU: 315101516
Price: 350 SGD
Availability: InStock

DS-TMG035

- Adjustable detection distance and width
- 79 GHz MMIC with higher resolution and stable detection.
- Recognize target direction, applicable for mixed entrances & exits
* Pre-Order Item. You may place an order anytime

S$350.00 ~~S$600.00~~

(Excluding GST)

Add to Favorite Items

Description

DS-TMG035
Entrance & Exit Radar

Free of Learning, applicable to more complex environments.
Adopted with LED indicators to indicate the radar working status.
60/79 GHz MMIC with higher resolution and more stable detection.
Adjustable detection distance and width with convenient operation and strong universality.
Convenient installation and maintenance with low manual workload and short working hour.
Able to recognize the target moving direction, applicable to mixed entrance and exit scenes.
Strong environmental adaptability without influence of the electromagnetic interference, illumination, dust, rain, snow, etc. towards the detection performance.
Able to record the configuration parameters of radar automatically. The working status can be restored after the power of the radar is cut off and the radar is rebooted.
Communication via RS-485 or Wi-Fi. Wi-Fi version is equipped with mobile phone application, with which you can debug and upgrade the radar with convenient operation.
Adopted with advanced signal processing technology to detect pedestrian and vehicle stably and prevent the boom pole of the barrier gate from falling down when there is pedestrian and vehicle passing.

Specifications:

General	Package Dimensions	148 mm × 115 mm × 65 mm (5.73" × 4.53" × 2.6") (L × W × H)
General	With Package Weight	Approx. 373 g (0.82 lb.)
Dimensions	Dimensions (L × W × H)	96 × 60 × 29 mm
Environment	Working temperature	-40℃~+85℃
Power supply	Working voltage (VDC)	9 to 12 VDC
	Working current (A)	＜ 0.25A
	Consumption (W)	＜ 3W
Technical parameters	Transmitting frequency (GHz)	60/79GHz
	Transmitting power (mW)	≤ 10mW
	Beam width	Vertical 10°, Horizontal 38°
	Response time (ms)	50ms
	Trigger distance (m)	0.3 to 6 m (adjustable)
	Detection area (m)	Horizontal width: 0 to 2 m (adjustable)
	Detection target	Vehicle
	Area vehicle following	Distinguish following distance of vehicle: 0.5 to 2 m (adjustable)
	Online debugging	Serial port/Wi-Fi
	Online upgrade	Serial port upgrade
Weight	Weight	<350 g (0.80 lb)
