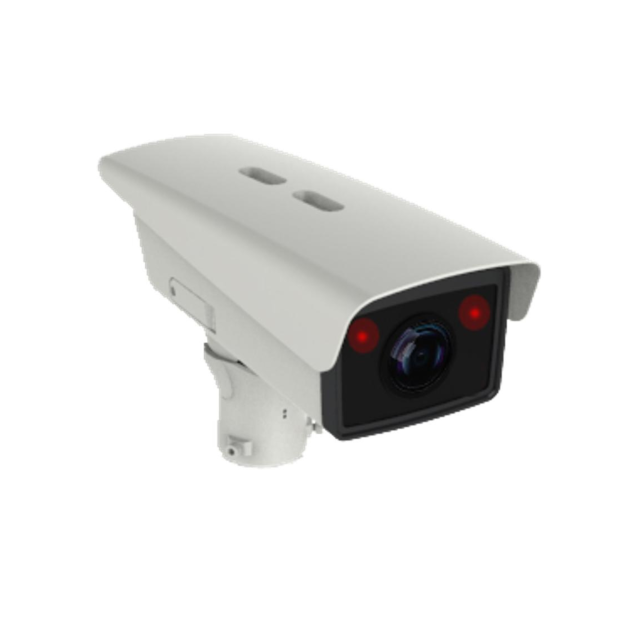

4MP ANPR Intelligent Entrance Video Unit | DS-TCG405-E(S)

Name: 4MP ANPR Intelligent Entrance Video Unit | DS-TCG405-E(S)
Brand: Viskou – Connecting Intelligence, Powering The Future
SKU: 315102873
Price: 1750 SGD
Availability: InStock

DS-TCG405-E(S)

- Up to 2688 × 1520 resolution with real-time video
- 2x pics high-performance LEDs (integrated white light and IR)
- 2.8 to 12 mm motorized vari-focal lens
- Support quick pass of multiple vehicles
- TF Card (up to 1 TB)

S$1,750.00 ~~S$3,500.00~~

(Excluding GST)

Add to Favorite Items

Description

DS-TCG405-E(S)
4MP ANPR Intelligent Entrance Video Unit

Product Specifications

Image Sensor	1/1.8" Progressive Scan CMOS
Min. Illumination	Color: 0.0005Lux@(F1.47, AGC ON) B/W: 0.0001Lux@(F1.47, AGC ON)
Lens	2.8 to 12 mm: F1.2 to F2.5
IR Cut Filter	IR cut filter Blue glass module to reduce ghost phenomenon
Video Compression	Main stream: H.265/H.264/MJPEG, Sub-stream: H.265/H.264/MJPEG,
Image Format	JPEG
Max. Resolution	2688x1520
Frame Rate	25 fps (P)/30 fps (N)
Focus	Auto,Vari-focal lens, motor-driven lens
LED Control	Support automatic light control/time control of LEDs
Memory Card Slot	1 TF card slot, up to 1 TB
Communication Interface	1 RJ45 10M/100M Ethernet port
Relay Output	2-ch relay output, supporting opening and closing of barrier gates
Audio	1 input (line in), 1 output (line out)
Working Temperature	-25°C to 70°C (-13°F to 158°F)
Protection Level	IP67, IK10
Vehicle Type	Car/Van/Bus/Truck/Light Truck/SUV_MPV/Pickup/Pedestrian/Motorcycle/Tricycle
Vehicle Color	Red, Yellow (including orange, golden), Green, Cyan, Blue, Purple, Pink, Brown, White, Gray (including silver), Black
Working Consumption	10 W Max.

Datasheet

Download Datasheet
