| Technical specifications |
Dimensions (diameter x length) |
Φ180 mm x 35 mm |
| Weight |
0.45 kg |

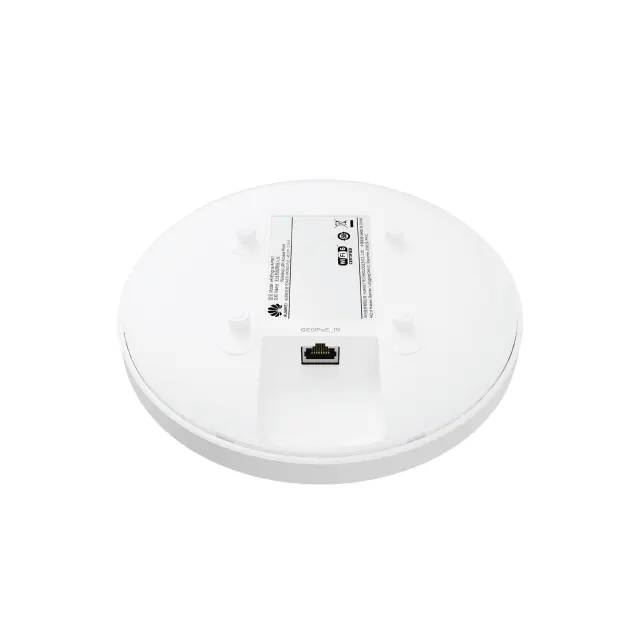

| Port type |
1 x 10M/100M/1GE electrical port
Note:
The GE electrical port supports PoE input. |
| LED indicator |
Indicates the power-on, startup, running, alarm, and fault states of the system. |
| Power specifications |
Power input |
PoE power supply: in compliance with IEEE 802.3af |
| Maximum power consumption |
8.8 W
Note :
The actual maximum power consumption depends on local laws and regulations. |
| Environmental specifications |
Operating temperature |
0°C to +50°C (If the altitude is in the range of 1800 m to 5000 m, the temperature decreases by 1°C every time the altitude increases by 300 m.) |
| Storage temperature |
–40°C to +70°C |
| Operating humidity |
5% to 95% (non-condensing) |
| Altitude |
–60 m to +5000 m |
| Atmospheric pressure |
53 kPa to 106 kPa |
| Radio Specifications |

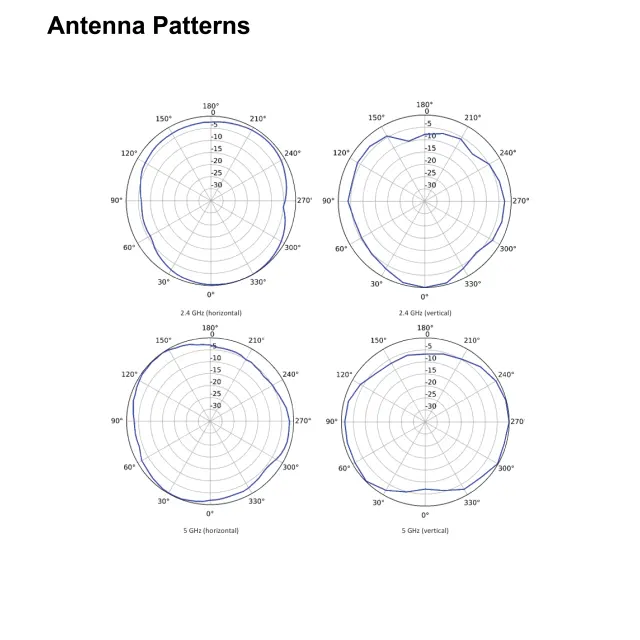

Antenna type |
Built-in smart antennas |
| Antenna gain |
2.4 GHz: 4 dBi 5 GHz: 5 dBi
Note :
1.The preceding gain is the peak gain of a single antenna. 2.Equivalent antenna gain after all 2.4 GHz or 5 GHz antennas are combined: 2 dBi for 2.4 GHz and 3 dBi for 5 GHz. |
| Maximum quantity of SSIDs on each radio |
≤ 6 |
| Device capacity |
≤ 128
Note :
The actual number of users varies according to the environment. |
| Maximum transmit power |
2.4 GHz: 20 dBm (combined power) 5 GHz: 20 dBm (combined power)
Note :
The actual transmit power depends on local laws and regulations. |
| Power adjustment increment |
1 dBm |
| Maximum number of non overlapping channels |
2.4 GHz (2.412 GHz to 2.472 GHz)
− 20 MHz: 3
− 20 MHz: 3
− 40 MHz: 1
− 20 MHz: 3
− 40 MHz: 1
5 GHz (5.18 GHz to 5.825 GHz)
− 20 MHz: 13
− 20 MHz: 13
− 40 MHz: 6
− 20 MHz: 13
− 40 MHz: 6
− 80 MHz: 3
− 20 MHz: 13
− 40 MHz: 6
− 80 MHz: 3
Note :
In this table, the number of non-overlapping channels supported in China is used as an example. The number of non-overlapping channels varies with countries. For details, see Country Codes & Channels Compliance. |
