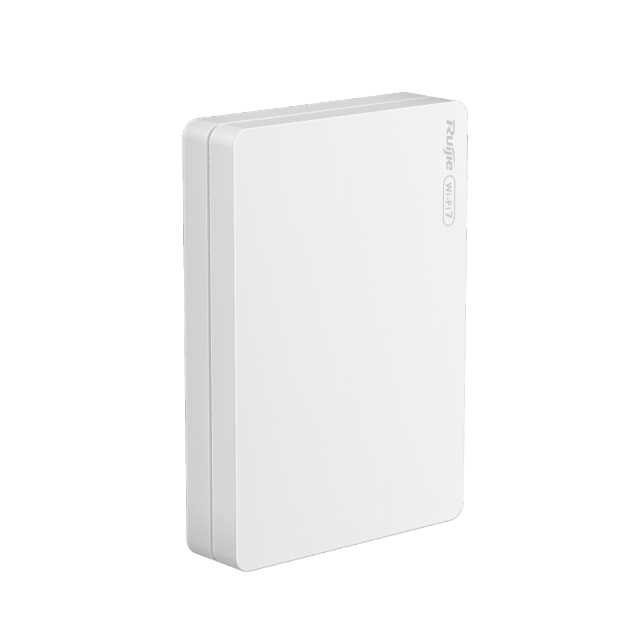

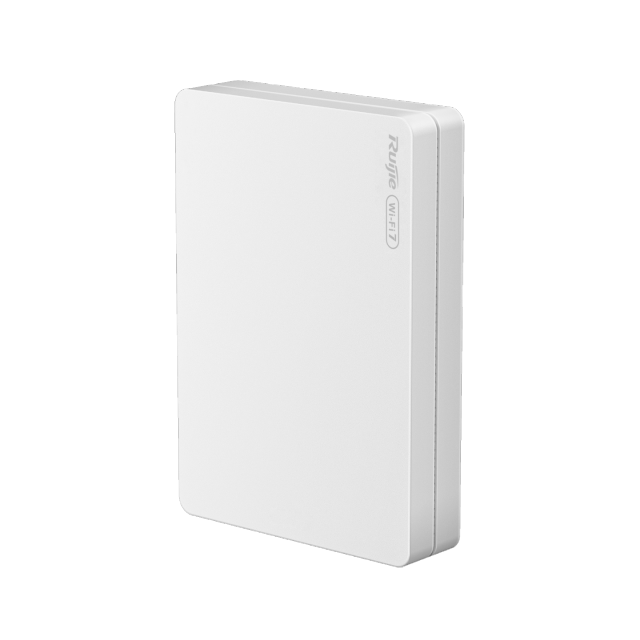

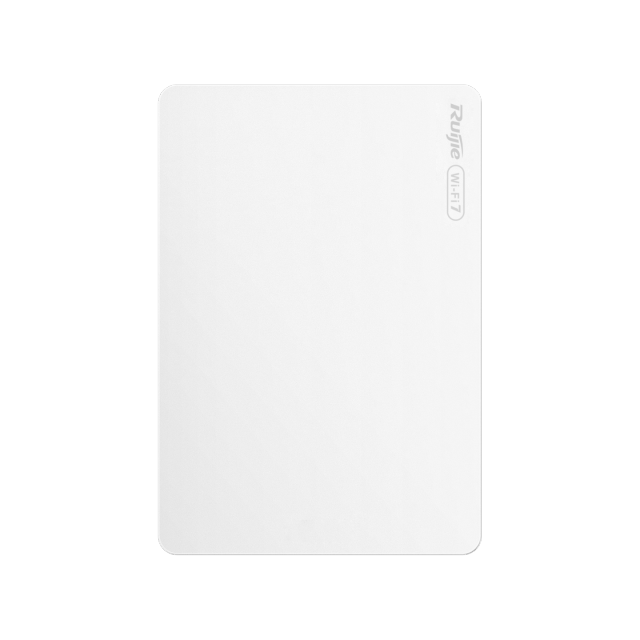

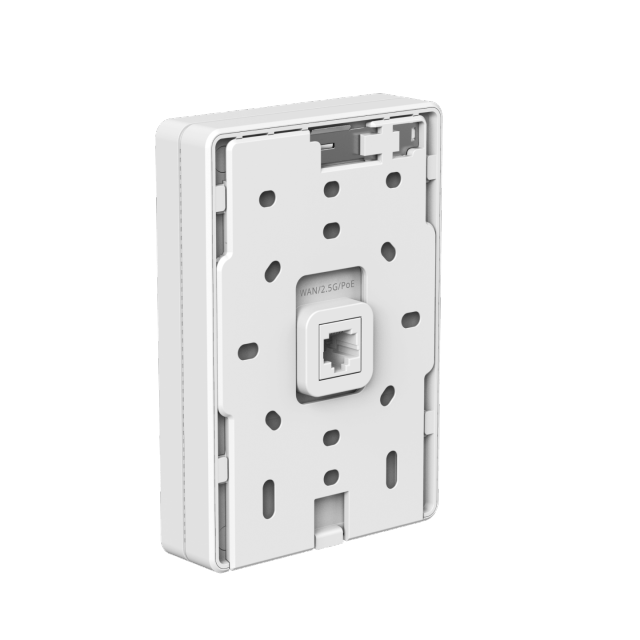

Ruijie BE3600 Dual-Band Wall-Mount Wi-Fi 7 Access Point | RG-RAP72-Wall

Name: Ruijie BE3600 Dual-Band Wall-Mount Wi-Fi 7 Access Point | RG-RAP72-Wall
Brand: Viskou – Connecting Intelligence, Powering The Future
SKU: VEMP103787
Price: 534.8 SGD
Availability: InStock

RG-RAP72-Wall

- 3600 Mbps Wi-Fi 7 Speed.
- 2.5 Gbps High-Speed Uplink.
- PoE Out for IP Phones/IoT.
- 24 mm Ultra-Slim Design.
- Built-in Anti-Theft Lock.

S$534.80 ~~S$1,107.80~~

(Excluding GST)

Add to Favorite Items

Description

RG-RAP72-Wall
Ruijie BE3600 Dual-Band Wall-Mount Wi-Fi 7 Access Pointt

Product Specifications

Product Type	Wall AP
Radio design	Dual-radio 4 spatial streams 2.4 GHz: 2 x 2, MU-MIMO 5 GHz: 2 x 2, MU-MIMO
Maximum wireless data rate	3570 Mbps
6 GHz wireless data rate	No
5 GHz wireless data rate	2882 Mbps
2.4 GHz wireless data rate	688 Mbps
Antenna	5 GHz: 1 built-in omnidirectional antenna Integrated 2.4 GHz and 5 GHz: 2 built-in omnidirectional antennas
Product dimensions (W x D x H)	86 mm x 24 mm x 124 mm (3.39 in. x 0.94 in. x 4.88 in.) (excluding the mounting bracket)
Color	White
Weight	≤ 0.27 kg (0.60 lbs.) (without packaging materials)
Number of 10/100/1000BASE-T ports	4
Number of 10/100/1000/2500BASE-T ports	1
Power supply	PoE/PoE+
PoE budget	10 W (when power source is IEEE 802.3at-compliant)
Maximum power consumption	15 W (excluding PoE output)
Operating temperature	0°C to +40°C (32°F to +104°F)
Mounting options	Junction box
IP rating	IP41
Maximum number of associated wireless clients	64 (2.4 GHz) 511 (5 GHz) 511 (2.4 GHz and 5 GHz enabled)
Maximum number of devices that can be managed	300

Datasheet

Download Datasheet

Customer Reviews

Write a review

Sign In With:

Ruijie BE3600 Dual-Band Wall-Mount Wi-Fi 7 Access Point | RG-RAP72-Wall

Quantity

Product Type

Wall AP

Radio design

Dual-radio 4 spatial streams

2.4 GHz: 2 x 2, MU-MIMO

5 GHz: 2 x 2, MU-MIMO

Maximum wireless data rate

3570 Mbps

6 GHz wireless data rate

No

5 GHz wireless data rate

2882 Mbps

2.4 GHz wireless data rate

688 Mbps

Antenna

5 GHz: 1 built-in omnidirectional antenna Integrated 2.4 GHz and 5 GHz: 2 built-in omnidirectional antennas

Product dimensions (W x D x H)

86 mm x 24 mm x 124 mm (3.39 in. x 0.94 in. x 4.88 in.) (excluding the mounting bracket)

Color

White

Weight

≤ 0.27 kg (0.60 lbs.) (without packaging materials)

Number of 10/100/1000BASE-T ports

4

Number of 10/100/1000/2500BASE-T ports

1

Power supply

PoE/PoE+

PoE budget

10 W (when power source is IEEE 802.3at-compliant)

Maximum power consumption

15 W (excluding PoE output)

Operating temperature

0°C to +40°C (32°F to +104°F)

Mounting options

Junction box

IP rating

IP41

Maximum number of associated wireless clients

64 (2.4 GHz) 511 (5 GHz) 511 (2.4 GHz and 5 GHz enabled)

Maximum number of devices that can be managed

300

Dual-radio
4 spatial streams

5 GHz: 1 built-in omnidirectional antenna
Integrated 2.4 GHz and 5 GHz: 2 built-in omnidirectional antennas

64 (2.4 GHz)
511 (5 GHz)
511 (2.4 GHz and 5 GHz enabled)
