64-ch 3U 4K NVR | DS-9664NI-M16

Name: 64-ch 3U 4K NVR | DS-9664NI-M16
Brand: Viskou E-Shop
SKU: 303616606
Price: 4950 SGD
Availability: InStock

DS-9664NI-M16

- Up to 64-ch IP camera inputs
- Advanced streaming technology
- 2 HDMI & 2 VGA interfaces, 8K or dual 4K video outputs
- Supports special cameras (People Counting/ANPR/Fisheye)

S$4,950.00 ~~S$8,910.00~~

(Excluding GST)

Quantity

1 In Stock, Ubi

1 In Stock, Bukit batok

7 In Stock, Tuas

Add to Favorite Items

Description

DS-9664NI-M16
M Series 8K NVR

Product Specifications

IP Video Input	64-ch
Incoming Bandwidth	400 Mbps
Outgoing Bandwidth	400 Mbps
HDMI 1 Output	8K (7680 × 4320)/30Hz, 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
HDMI 2 Output	4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz *: When HDMI 1 output resolution is 8K, the maximum HDMI 2 output resolution is 1080p.
VGA 1 Output	1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
VGA 2 Output	1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
Video Output Mode	HDMI 1 and VGA 1 provide simultaneous video output, and work as the main output; HDMI 2 and VGA 2 provide simultaneous video output, and work as the auxiliary output
CVBS Output	1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
Audio Input	1-ch, RCA (2.0 Vp-p, 1 KΩ)
Audio Output	2-ch, RCA (Linear, 1 KΩ)
Two-Way Audio	1-ch, RCA (2.0 Vp-p, 1 k Ω)
Decoding Format	H.265/H.265+/H.264/H.264+
Recording Resolution	32 MP/24 MP/12 MP/8 MP/7 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Synchronous playback	16-ch
RAID Type	RAID0, RAID1, RAID5, RAID6, RAID10
Serial Interface	1 RS-485 (full-duplex), 1 RS-232
SATA	16 SATA interfaces supporting hot-plug
eSATA	1 eSATA interface
Capacity	Up to 14 TB capacity for each disk
USB Interface	Front panel: 2 × USB 2.0; Rear panel: 2 × USB 3.0
Chassis	3U chassis

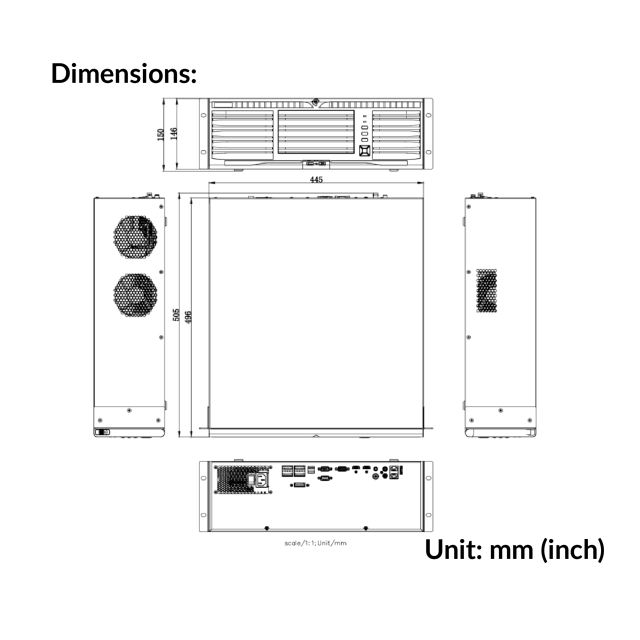

Dimension (W × D × H)	445 × 496 × 150 mm (17.5" × 19.5" × 5.9")
Weight	≤ 12.5 kg (without HDD, 27.6 lb.)

Datasheet

Download Datasheet

Customer Reviews

Write a review

Sign In With:

64-ch 3U 4K NVR | DS-9664NI-M16

Quantity

IP Video Input

64-ch

Incoming Bandwidth

400 Mbps

Outgoing Bandwidth

400 Mbps

HDMI 1 Output

8K (7680 × 4320)/30Hz, 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz

HDMI 2 Output

4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz *: When HDMI 1 output resolution is 8K, the maximum HDMI 2 output resolution is 1080p.

VGA 1 Output

1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz

VGA 2 Output

1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz

Video Output Mode

HDMI 1 and VGA 1 provide simultaneous video output, and work as the main output; HDMI 2 and VGA 2 provide simultaneous video output, and work as the auxiliary output

CVBS Output

1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480

Audio Input

1-ch, RCA (2.0 Vp-p, 1 KΩ)

Audio Output

2-ch, RCA (Linear, 1 KΩ)

Two-Way Audio

1-ch, RCA (2.0 Vp-p, 1 k Ω)

Decoding Format

H.265/H.265+/H.264/H.264+

Recording Resolution

32 MP/24 MP/12 MP/8 MP/7 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF

Synchronous playback

16-ch

RAID Type

RAID0, RAID1, RAID5, RAID6, RAID10

Serial Interface

1 RS-485 (full-duplex), 1 RS-232

SATA

16 SATA interfaces supporting hot-plug

eSATA

1 eSATA interface

Capacity

Up to 14 TB capacity for each disk

USB Interface

Front panel: 2 × USB 2.0; Rear panel: 2 × USB 3.0

Chassis

3U chassis

Dimension (W × D × H)

445 × 496 × 150 mm (17.5" × 19.5" × 5.9")

Weight

≤ 12.5 kg (without HDD, 27.6 lb.)
