| IP video input |
4-ch |
| Incoming bandwidth |
40 Mbps |
| Outgoing bandwidth |
80 Mbps |
| HDMI output |
1-ch, 4K (4096 × 2160)/30Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/30Hz, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz |
| VGA output |
1-ch, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1280×720 /60Hz |
| Video output mode |
HDMI/VGA simultaneous output
|
| CVBS output |
N/A |
| Audio output |
1-ch, RCA (Linear, 1 KΩ) |
| Decoding format |
H.265+/H.265/H.264+/H.264 |
| Recording resolution |
8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/2CIF/CIF/QCIF |
| Synchronous playback |
4-ch |
| Capability |
AI&4K Off: 8-ch@1080p(30fps)
AI/4K On: 6-ch@1080p(30fps)
*: The length or width of camera resolution (each track) cannot exceed 4096 pixels.
|
| Remote connection |
32 |
| Interface |
4, RJ-45 10/100 Mbps self-adaptive Ethernet interface |
| SATA |
1 SATA interface |
| Capacity |
Up to 8 TB capacity for each disk |
| USB interface |
2 × USB 2.0 |
| Power supply |
48 VDC or ≤ 65 W |
| Working temperature |
-10 °C to 55 °C (14 °F to 131 °F) |

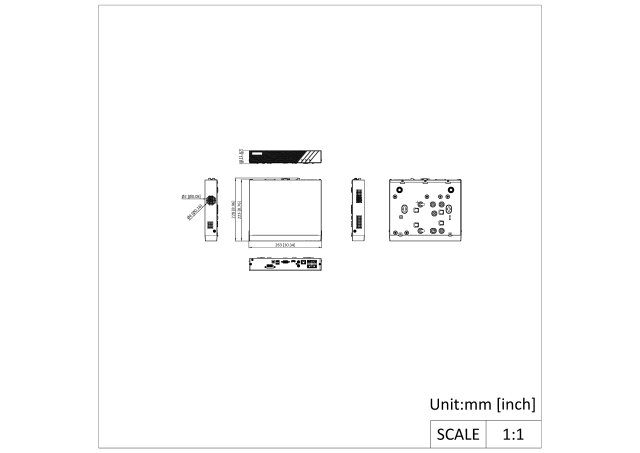

| Dimension (W × D × H) |
263 × 223 × 48 mm (10.34" × 8.76" × 1.87") |
| Weight (without HDD) |
≤ 1.5 kg (3.3 lb) |
