IP video input
|
8-ch
|
Incoming bandwidth
|
80 Mbps
|
Outgoing bandwidth
|
80 Mbps
|
HDMI output
|
1-ch, 4K (4096 × 2160)/30Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/30Hz, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
|
VGA output
|
1-ch, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1280×720 /60Hz
|
Video output mode
|
HDMI/VGA simultaneous output
|
CVBS output
|
N/A
|
Audio output
|
1-ch, RCA (Linear, 1 KΩ)
|
Decoding format
|
H.265+/H.265/H.264+/H.264
|
Recording resolution
|
8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/2CIF/CIF/QCIF
|
Synchronous playback
|
8-ch
|
Capability
|
AI&4K Off: 8-ch@1080p(30fps)
AI/4K On: 6-ch@1080p(30fps)
*: The length or width of camera resolution (each track) cannot exceed 4096 pixels.
|
Remote connection
|
32
|
PoE Interface
|
8, RJ-45 10/100 Mbps self-adaptive Ethernet interface
|
SATA
|
1 SATA interface
|
Capacity
|
Up to 8 TB capacity for each disk
|
USB interface
|
2 × USB 2.0
|
Power supply
|
48 VDC or ≤ 90W
|
Working temperature
|
-10 °C to 55 °C (14 °F to 131 °F)
|

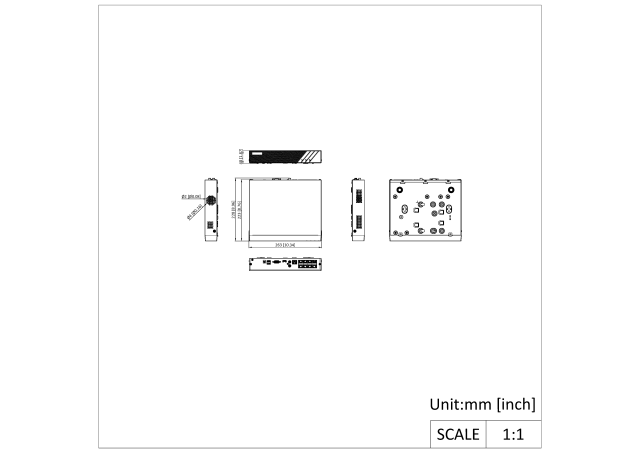

Dimension (W × D × H)
|
263× 223 × 48 mm (10.34" × 8.76" × 1.9")
|
Weight (without HDD)
|
≤ 1.5 kg (3.3 lb)
|
