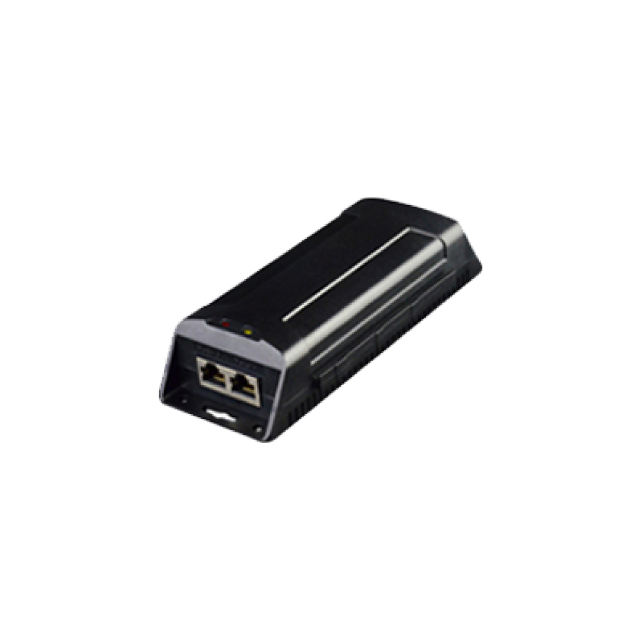

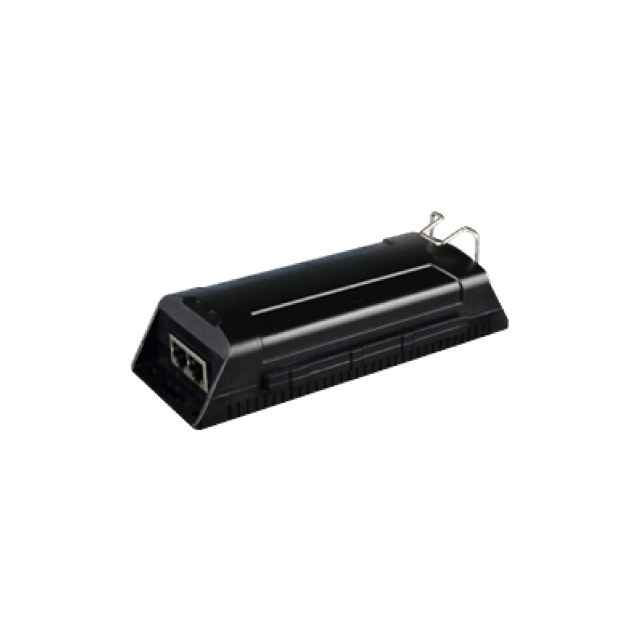

UTP7201GE-PSE60
60W Gigabit PoE Injector
This is a single-port PoE injector with one Ethernet port, one PoE output port, and one AC input power port. It supports end-span PoE and the output power consumption is up to 60W; It features:10/100M/1000Mbps network,100m transmission distance,6KV lightning protection, industrial-level chip, and patent alert. it's an excellent choice for power supply and network transmission on PTZ cameras, all-in-one PC, digital display system.
Specifications
| Interface |
Input Voltage |
AC100V~AC240V |
| Data Input |
1×RJ45 |
| PoE output |
1×RJ45 |
| PoE |
PoE Power Method |
End-span / Mid-span |
| PoE Power Output |
DC 54V/60 watts |
| Output Ripple |
＜5% |
| Power Pin Assignment |
Pair1:1/2(+),3/6(-) Pair2:4/5(-),7/8(+) |
| Ethernet Port |
Communication Port |
1×RJ45 Input |
| Transmission Rate |
10/100/1000Mbps |
| Transmission Medium |
Cat5/5e/6 Cable |
| Distance |
100m (Max.) |
| Status |
Power LED |
1 (Red) |
| PoE LED |
1 (Orange) |
Datasheet
Download Datasheet
