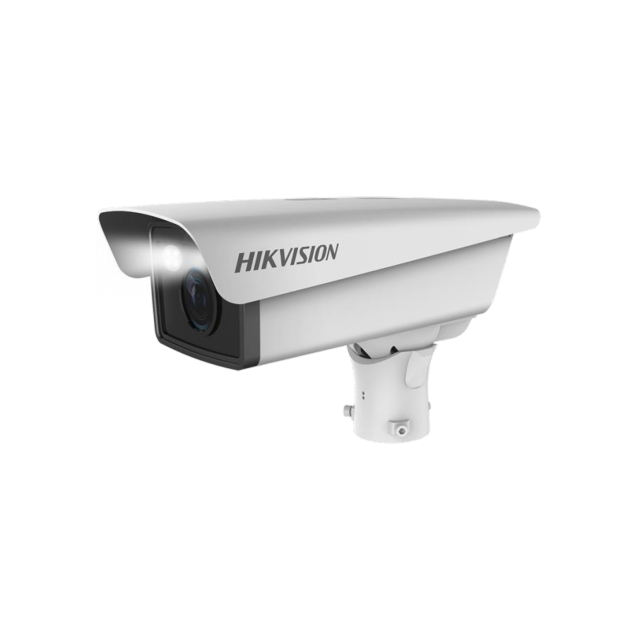

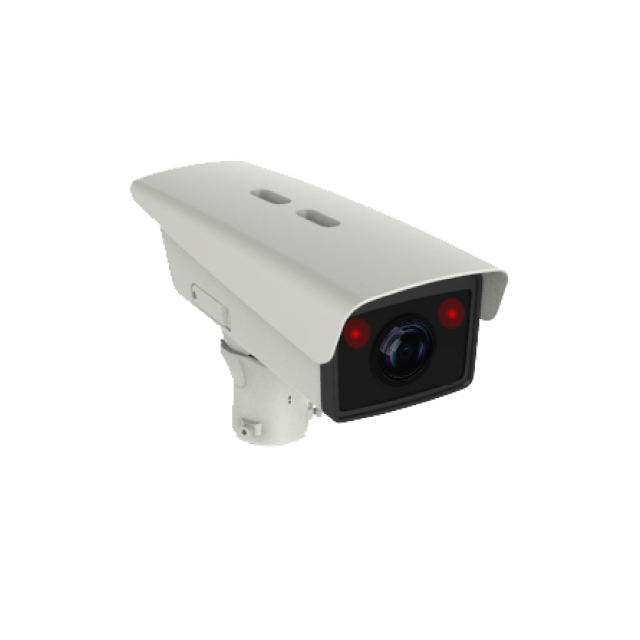

DS-TCG405-E
ANPR Camera
DS-TCG405 camera series, based on deep learning, consists of protective cover, lens, camera, LED and power supply, offers high-definition Progressive Scan CMOS, and integrates intelligent recognition algorithms for specific applications such as entrance management, road safety enforcement, in-vehicle monitoring, parking lot control, etc.
- 1/3" Progressive Scan CMOS
- Up to 2688 × 1520 resolution with real-time video
- 2x pics high-performance LEDs (integrated white light and IR)
- 3.1 to 6mm motorized vari-focal lens
- Support relay output to control vehicle barrier
- Support loop triggering or radar triggering
- Support multi-frame LPR
- Support dirty license plate recognition
- Support quick pass of multiple vehicles
- Support vehicle type, vehicle color and vehicle brand recognition
- Integrated shield, lights, TF Card (up to 128 G)
- Up to 30,000 whitelists
- Offline control
- PoE (802.3af)
- One-touch focus
- Manual capture and ANPR
Product Specifications
Image Sensor
|
1/3" Progressive Scan CMOS
|
Min. Illumination
|
Color: 0.022Lux@(F1.2, AGC ON)
B/W: 0.011Lux@(F1.2, AGC ON)
|
Lens
|
3.1 mm to 6 mm
|
IR Cut Filter
|
Support
|
Video Compression
|
H.264/H.265/MJPEG
|
Image Format
|
JPEG
|
Max. Resolution
|
2688x1520
|
Frame Rate
|
25 fps (2688*1520)
|
Picture Format
|
JPEG with configurable quality
|
LED Control
|
Support automatic light control/time control of LEDs
|
Storage
|
TF
|
Communication Interface
|
1 RJ45 10M/100M Ethernet port
|
Built-in LED
|
2 built-in LEDs (integrated white light and IR)
|
Memory Card Slot
|
1 TF card slot, up to 128GB
|
Working Temperature
|
-25°C to 70°C (-13°F to 158°F)
|
Protection Level
|
IP67, IK10
|
Vehicle Type
|
Car (including SUV, MPV, Pickup)/truck/bus/van
|
Vehicle Color
|
Red, yellow(including orange), green, blue, purple, brown, white, grey(including silvery), black
|
ANPR Recognition Accuracy (Under recommended installation and lighting conditions)
|
Capture rate > 98% Vehicle moving direction recognition accuracy > 96% Mistaken capture rate < 2% (entrance/exit), < 5% (checkpoint)
|
