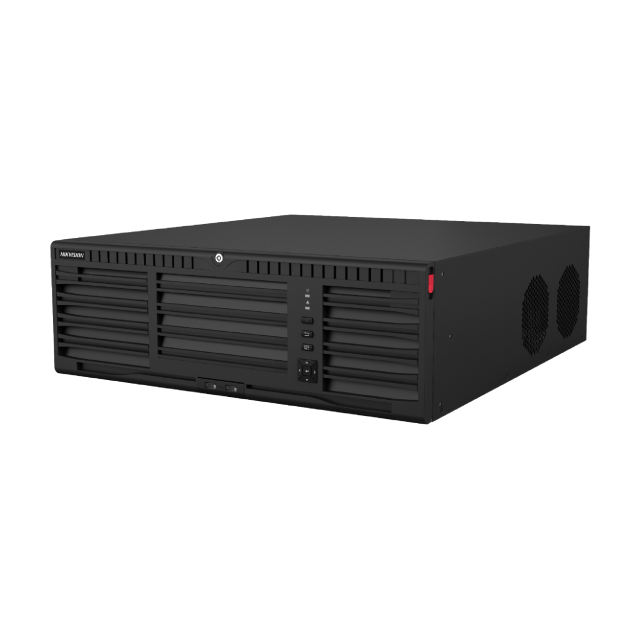

32-ch 3U 4K NVR | DS-9632NI-M16
- Advanced streaming technology
- 2 HDMI & 2 VGA interfaces, 8K or dual 4K video outputs
- Supports special cameras (People Counting/ANPR/Fisheye)
IP Video Input |
32-ch |
Incoming Bandwidth |
320 Mbps |
Outgoing Bandwidth |
400 Mbps |
HDMI 1 Output |
8K (7680 × 4320)/30Hz, 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
HDMI 2 Output |
4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz *: When HDMI 1 output resolution is 8K, the maximum HDMI 2 output resolution is 1080p. |
VGA 1 Output |
1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
VGA 2 Output |
1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
Video Output Mode |
HDMI 1 and VGA 1 provide simultaneous video output, and work as the main output; HDMI 2 and VGA 2 provide simultaneous video output, and work as the auxiliary output |
RAID Type |
RAID0, RAID1, RAID5, RAID6, RAID10 |
SATA |
16 SATA interfaces supporting hot-plug |
eSATA |
1 eSATA interface |
Capacity |
Up to 14 TB capacity for each disk |
Chassis |
3U chassis |

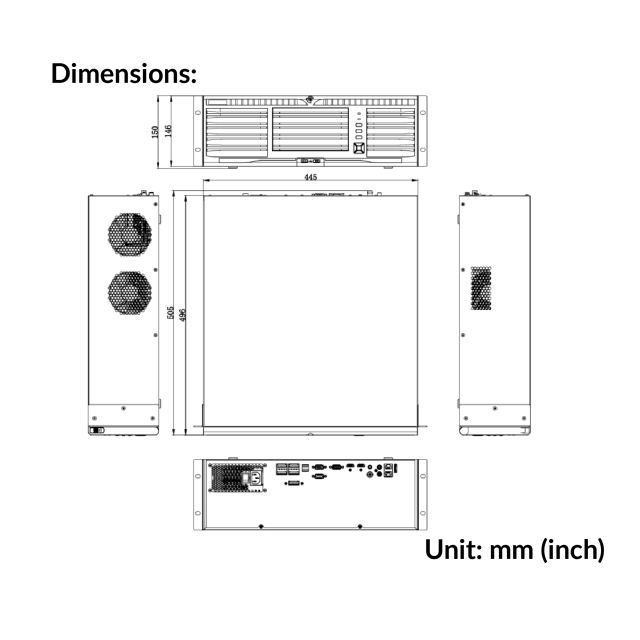

Dimension (W × D × H) |
445 × 496 × 150 mm (17.5" × 19.5" × 5.9") |
Weight |
≤ 12.5 kg (without HDD, 27.6 lb.) |
