16-ch 1U 8K NVR | DS-7616NI-M2

DS-7616NI-M2
- H.265+/H.265/H.264+/H.264 video formats
- Up to 16-ch IP camera inputs
- Up to 16-ch@4 MP decoding capacity
- Up to 256 Mbps incoming bandwidth
- Up to 8-ch IP speakers can be connected
S$862.40 S$1,786.40
(Excluding GST)
Quantity
-
+
Asia
Ubi:
Bukit batok:
Tuas:
Please contact sales for latest stock quantities
  • Description
DS-7616NI-M2
16-ch 1U 8K NVR

Product Specifications
IP Video Input
16-ch
Up to 32 MP resolution
*: After ultra HD resolution mode is enabled, the NVR supports up to 8-ch 32 MP/24 MP IP video inputs.
VGA Output
1920 × 1080/60Hz
Decoding Capability
2-ch@32 MP (30 fps)+2-ch@8MP30fps/10-ch@8 MP (30 fps)/20-ch@4 MP (30 fps)/40-ch@1080p (30 fps)
Dual-Stream Recording
Support
SATA
2 SATA interfaces
Capacity
Up to 16 TB capacity for each disk
Power Supply
12 VDC, 3.33 A
Power Consumption
≤ 15 W (without HDD)
USB Interface
Front panel: 1 × USB 2.0; Rear panel: 1 × USB 3.0
Working Temperature
0 °C to 50 °C (14 °F to 104 °F)
Working Humidity
10% to 90%

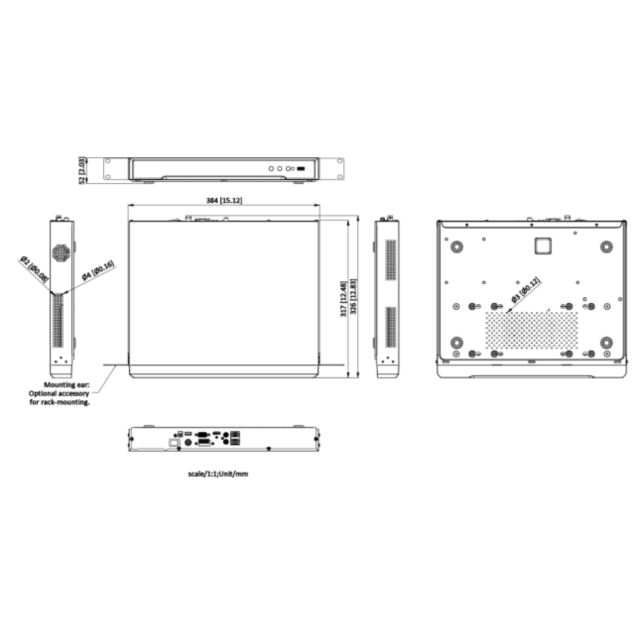

Dimension (W × D × H)
385 × 315× 52 mm (15.2" × 12.4" × 2.0")
Weight
≤ 3 kg (without HDD, 2.2 lb.)


Datasheet
Download Datasheet
