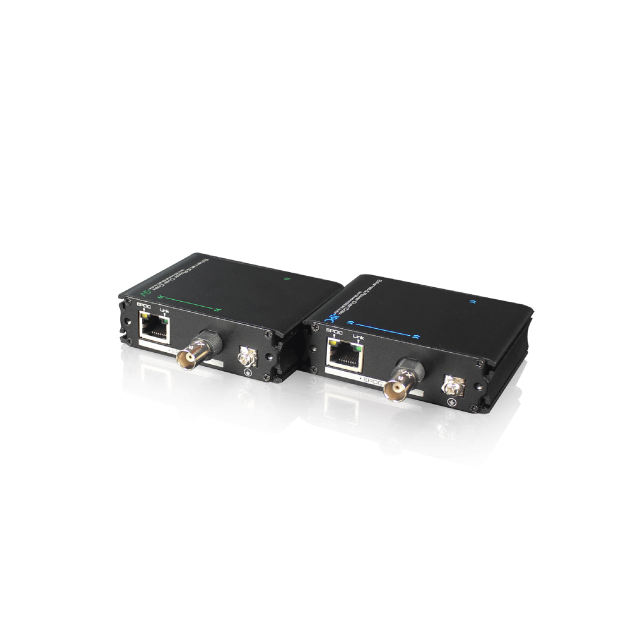

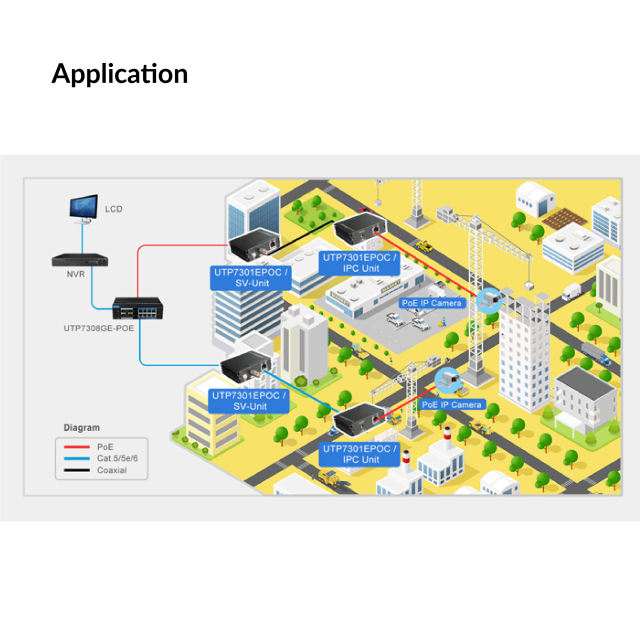

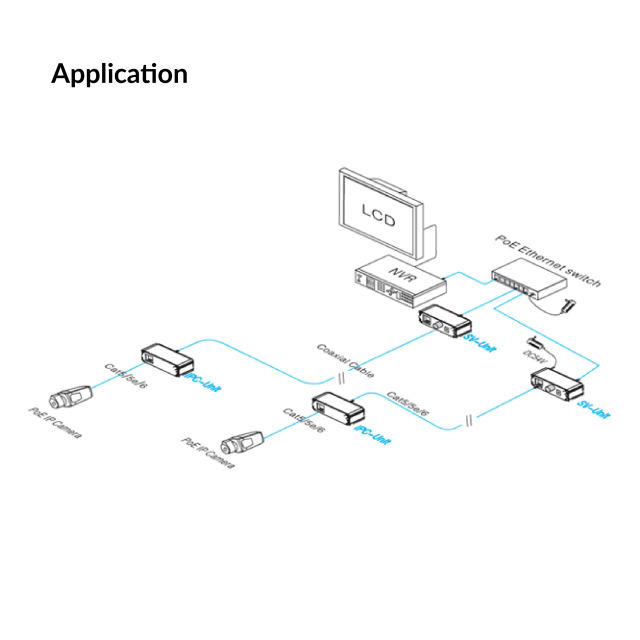

| Consist of SV-Unit and IPC-Unit, UTP7301EPOC can transform Ethernet signal of IPC-Unit to carrier signal, and extend it to SV-Unit along with electric energy synchronously through coaxial cable or network cable. And you can use 54V power adapter or PoE power supply to power up SV-Unit. It meets the requirement for long-distance transmission for Ethernet signal and power supply, and is widely used in mixed wiring security surveillance project of coaxial cable and network cable and network rebuilding project. |
| Power | Power Supply | PoE power supply or power adapter supply |
| Input Voltage | DC 48V～57V | |
| Consumption | ＜2W | |
| Ethernet Port Parameter | Ethernet Port | EPOC: 0--100Mbps Ethernet: 10/100Mbps |
| Transmission bandwidth changes with transmission distance,please refer to table 1 | ||
| Transmission Distance | EPOC Coaxial Cable: 0-500m | |
| EPOC Network Cable: 0-400m | ||
| Transmission Medium | 75-5 Above Coaxial Cable and Cat5e/6 | |
| PoE Agreement | Support IEEE802.3af, IEEE802.3at | |
| PoE Power Method | End-span and Mid-span | |
| Ethernet Exchange | Standard and Protocols | IEEE802.3 10BASE-T, IEEE802.3u 100BASE-TX |
| Ethernet Delay | ＜1ms | |
| Status | Indicator LED | PoE IN/OUT Port: |
| One indicates PoE power supply or DC power status(RJ45 yellow), one indicates Ethernet signal transmission(RJ45 green); | ||
| Protection Level | ESD Immunity | 1a Contact Discharge level 3 |
| 1b Air Discharge level 3 | ||
| Per: IEC61000-4-2 | ||
| Surge Immunity | Per: IEC61000-4-5 level 3 | |
| Operation Environment | Operating Temperature | -40℃~+75℃ |
| Storage Temperature | -40℃~+85℃ | |
| Humidity(No-Condensing) | 0~95% | |

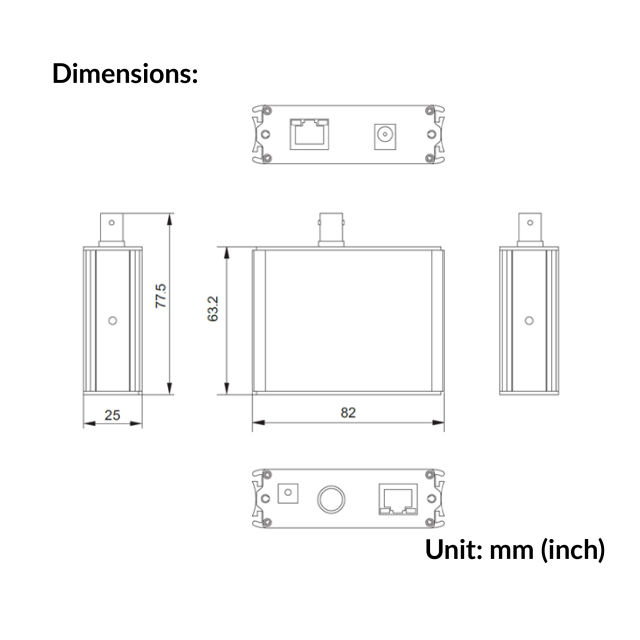

| Mechanical | Dimension(L×W×H) | 63.2mm×82mm×25mm |
| Material | Aluminum | |
| Color | Black | |
| Weight | IPC:153g; SV:154g |
