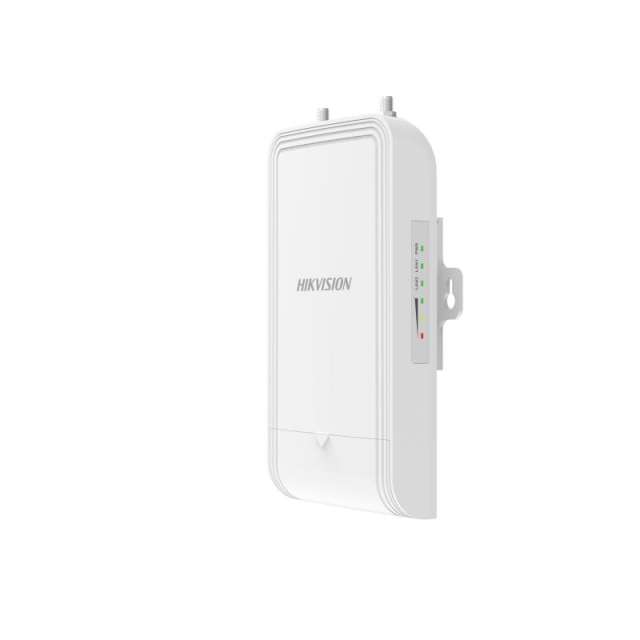

5Ghz 867Mbps 1KM 360° Wireless AP Bridge | DS-3WF0FA-5AC/O

Name: 5Ghz 867Mbps 1KM 360° Wireless AP Bridge | DS-3WF0FA-5AC/O
Brand: Viskou – Connecting Intelligence, Powering The Future
SKU: 317200314
Price: 537.5 SGD
Availability: InStock

DS-3WF0FA-5AC/O

- Up to 1 km wireless transmission distance
- 867 Mbps 802.11ac wireless bridge
- Built-in 8dBi 2 x 2 MIMO antenna
- 802.3af PoE power supply
- Visualized topology management
- Real-Time alarm push technology

S$537.50 ~~S$1,075.00~~

(Excluding GST)

Add to Favorite Items

Description

DS-3WF0FA-5AC/O
5Ghz 867Mbps 1KM 360° Wireless AP Bridge

Specifications

Wireless Parameter	Max. Transmission Rate of Air Interface	≤ 857 Mbps
	Wireless Standard	IEEE 802.11/a/n/ac
	Working Frequency Band	2400 MHz~2483.5 MHz
	Transmitting Power	5150 MHz ~ 5250 MHz,5250 MHz~ 5350 MHz,5470 MHz~ 5725 MHz,5725 MHz~ 5825 MHz,(Note: Available channel may vary with local regulations.)
	Receiving Sensitivity	-87 ± 2 dBm @HT40 MCS0
	Antenna Gain	10 dBi
	Antenna Angle	(H) Beamwidth [3 dB] 360° (V) Beamwidth [3 dB] 8°
	Working Frequency Band	5150 MHz ~ 5250 MHz,5250 MHz~ 5350 MHz,5470 MHz~ 5725 MHz,5725 MHz~ 5825 MHz,(Note: Available channel may vary with local regulations.)
Hardware Parameter	Networks Interface	2 × 10/100 Mbps RJ45 ports
	LED Indicator	Power indicator, LAN indicator, signal intensity indicator
	Reset	Hardware resetting button
	Power Supply	48V 0.33A PoE or PoE(802.3af) 36～57V 0.13A
General	Product Dimensions (W × H × D)	103.6 mm × 58.3 mm × 198.4 mm (4.1'' × 2.3'' × 7.8'')
	Package Dimensions (W × H × D)	550 mm × 238 mm × 167 mm (21.6" × 9.3" × 6.5")
	Net Weight	0.3 kg (0.66 lb)
	Gross Weight	3.5 kg (7.71 lb)
	Working Temperature	-30 °C to 60 °C (-22 °F to 140 °F)

Datasheet

Download Datasheet
