SV900 5G Industrial Vehicle Gateway | VIS555-SV900 (5G Router C/W VPN)

Name: SV900 5G Industrial Vehicle Gateway | VIS555-SV900 (5G Router C/W VPN)
Brand: Viskou – Connecting Intelligence, Powering The Future
SKU: VEMP103555
Price: 1350 SGD
Availability: OutOfStock

VIS555-SV900 (5G Router C/W VPN)

- 1 x RS232, 1 x RS485
- Comprehensive VPN Support
- 512MB RAM, expandable to 1GB
- Suitable for Robotic, Moving Machine
- 4 x 10/100/1000Mbps LAN, 1 x 10/100/1000Mbps WAN
- Support Dual 5G / 5G+4G / 5G / 4G LTE CAT4 High-Speed Network

S$1,350.00 ~~S$2,700.00~~

(Excluding GST)

Add to Favorite Items

Description

VIS555-SV900

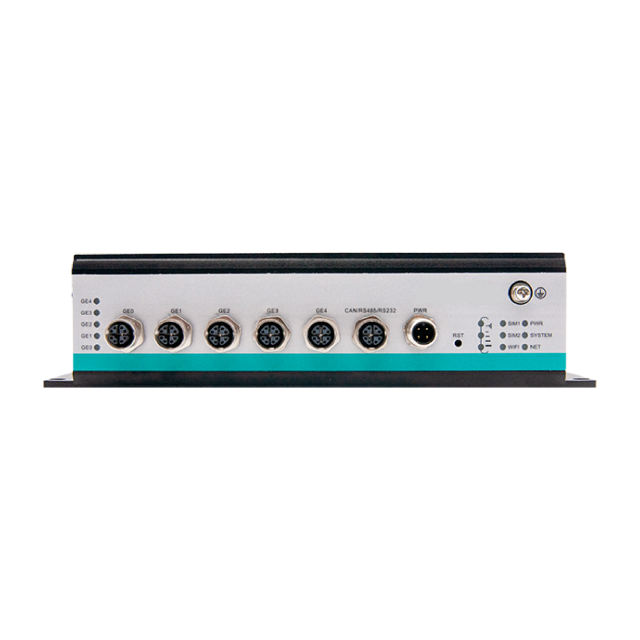

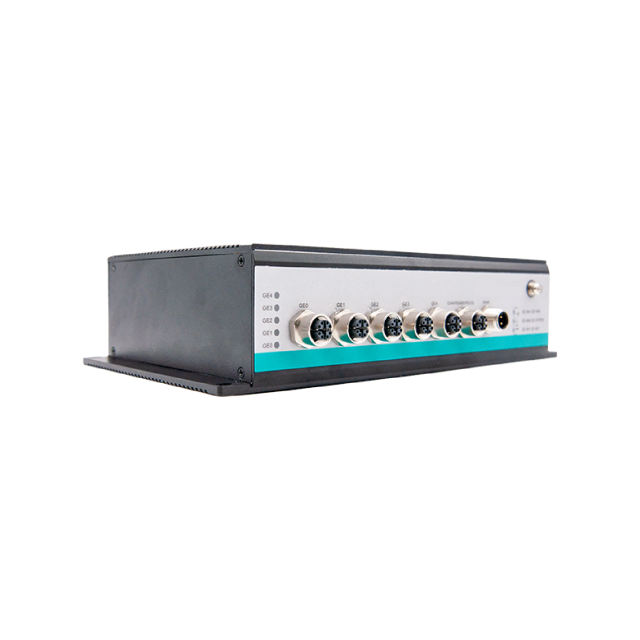

5G Industrial Vehicle Gateway

Product Specifications

Memory	512MB, expandable to 1GB
Network Support	N1/N3/N5/N7/N8/N20/N28/N38/N40/N41/N71/N75/N76/N77/N78/N79 B1/B3/B5/B7/B8/B20/B28/B32/B71 B38/B40/B41/B42/B43
WAN Port	1 (10M/100M/1000M adaptive MDI/MDIX port), M12 aviation connector
LAN Port	4(10M/100M/1000M adaptive MDI/MDIX port), M12 aviation connector
SIM Card Interface	2 (drawer-style card slot, supports 1.8V/3V SIM/UIM cards), compatible with ESIM
Antenna Interface	8 (5G/4G antennas, 50 ohm impedance, Fakra connector) 4 (WiFi antennas, 50 ohm impedance, Fakra connector)
Serial Port, CAN Port	1RS232,1RS485，1*CAN，M12 aviation connector
Casing	Aluminium casing

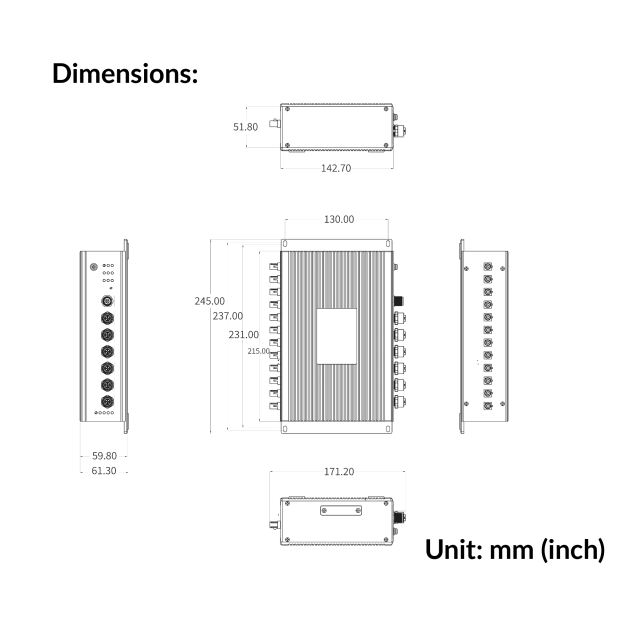

Dimensions (LxWxH)	245 x 171 x 61mm (excluding antenna and mounting components)
Installation Methods	Desktop placement
Weight	Net weight: 1KG (excluding antenna and mounting components)
Protection Level	IP40

Datasheet

Download Datasheet

Customer Reviews

Write a review

Sign In With:

SV900 5G Industrial Vehicle Gateway | VIS555-SV900 (5G Router C/W VPN)

Quantity

Memory

512MB, expandable to 1GB

Network Support

N1/N3/N5/N7/N8/N20/N28/N38/N40/N41/N71/N75/N76/N77/N78/N79 B1/B3/B5/B7/B8/B20/B28/B32/B71 B38/B40/B41/B42/B43

WAN Port

1 (10M/100M/1000M adaptive MDI/MDIX port), M12 aviation connector

LAN Port

4(10M/100M/1000M adaptive MDI/MDIX port), M12 aviation connector

SIM Card Interface

2 (drawer-style card slot, supports 1.8V/3V SIM/UIM cards), compatible with ESIM

Antenna Interface

8 (5G/4G antennas, 50 ohm impedance, Fakra connector) 4 (WiFi antennas, 50 ohm impedance, Fakra connector)

Serial Port, CAN Port

1*RS232,1*RS485，1*CAN，M12 aviation connector

Casing

Aluminium casing

Dimensions (LxWxH)

245 x 171 x 61mm (excluding antenna and mounting components)

Installation Methods

Desktop placement

Weight

Net weight: 1KG (excluding antenna and mounting components)

Protection Level

IP40

N1/N3/N5/N7/N8/N20/N28/N38/N40/N41/N71/N75/N76/N77/N78/N79
B1/B3/B5/B7/B8/B20/B28/B32/B71
B38/B40/B41/B42/B43

2 (drawer-style card slot, supports 1.8V/3V SIM/UIM cards), compatible
with ESIM

8 (5G/4G antennas, 50 ohm impedance, Fakra connector)
4 (WiFi antennas, 50 ohm impedance, Fakra connector)

1RS232,1RS485，1*CAN，M12 aviation connector
