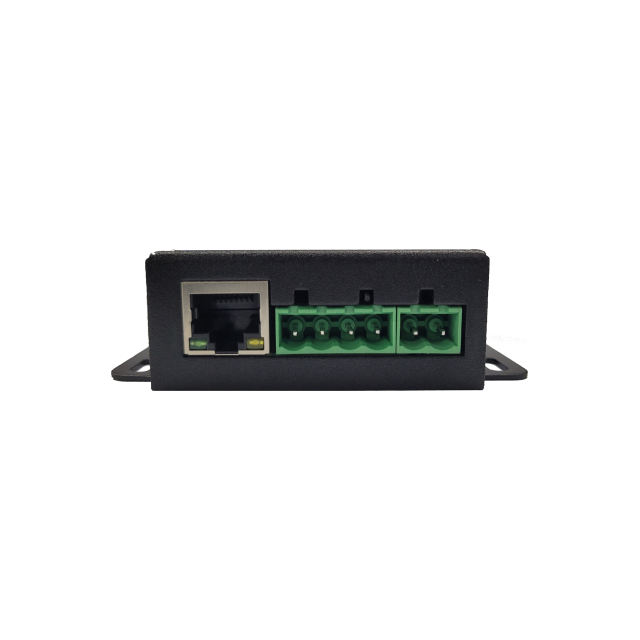

Serial Device Server
VSL- RJ45 module
VSL- RJ45 module is a TCP serial device server suitable for solar controller, inverter, and inverter/charger. Connect the VSL- RJ45 module to the device through the RS485 interface or COM port; it can transmit the device data and realize the remote monitoring, parameter setting, and data viewing of the field device. The connections and operations are simple and convenient.
- Support TCP communication with the solar controller, inverter, and inverter/charger
- Support remotely monitoring by the cloud platform
- Designed with low power consumption, fast running speed, and high efficiency
- Adopt standard network cable interface
- High compatibility without any drivers
- Unlimited communication distance
- Flexible power supply for the communication interface, suitable for various applications
- 10M/100M adaptive Ethernet port
Product Specifications
Input voltage
|
DC5V±0.3V (XTRA-N needs an extra power supply); other devices do not need an extra power supply.
|
Standby consumption
|
Standby consumption
|
Working power consumption
|
0.91W
|
Communication distance
|
Unlimited communication distance
|
Ethernet port
|
10M/100M adaptive Ethernet port
|
Serial port baud rate
|
9600bps~115200bps(default 115200bps, 8N1)
|
Communication port
|
RS485 standard
|
Bus standard
|
RS485
|
Dimensions
|
80.5 x 73.5 x 26.4mm
|
Mounting hole size
|
Φ 4.2
|
Working temperature
|
-20~70℃
|
Enclosure
|
IP30
|
Net Weight
|
107.7g
|
