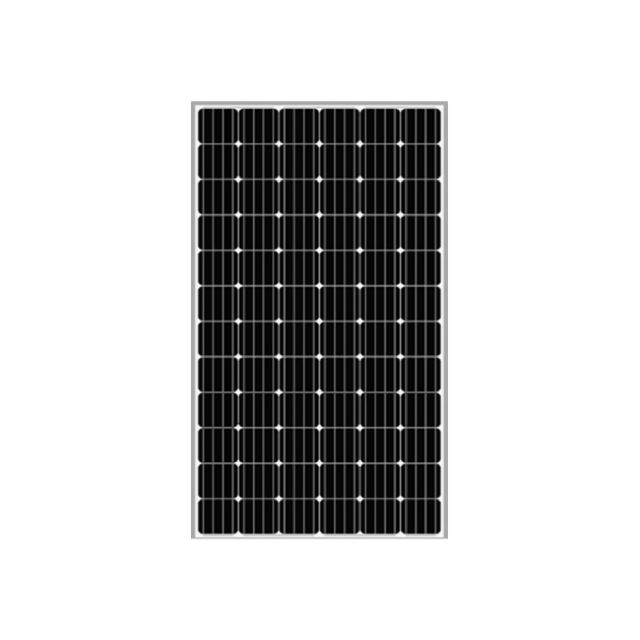

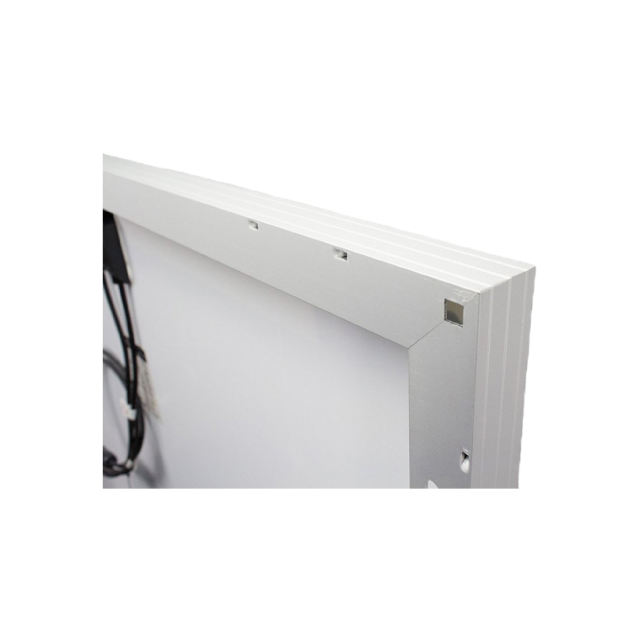

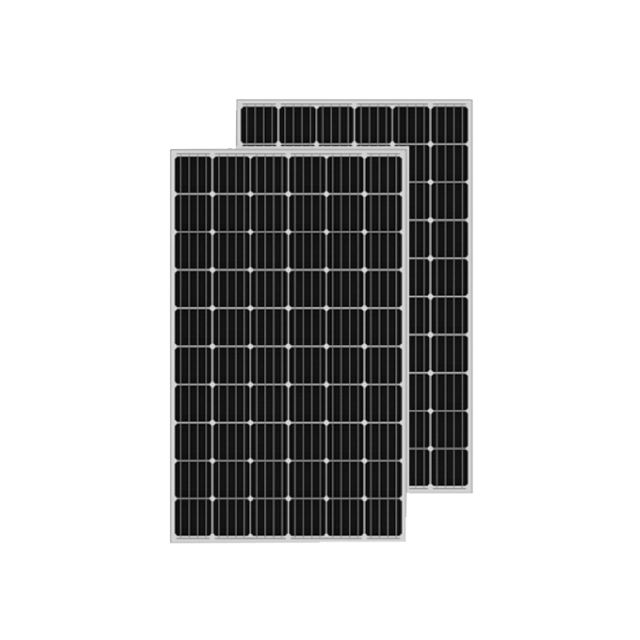

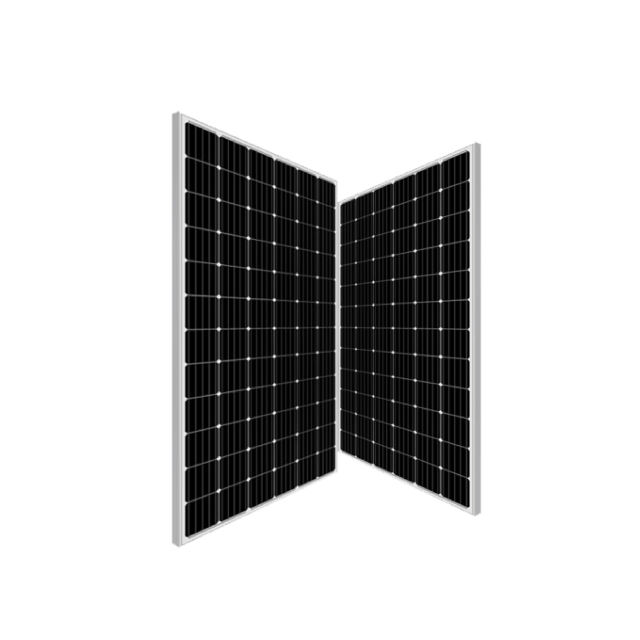

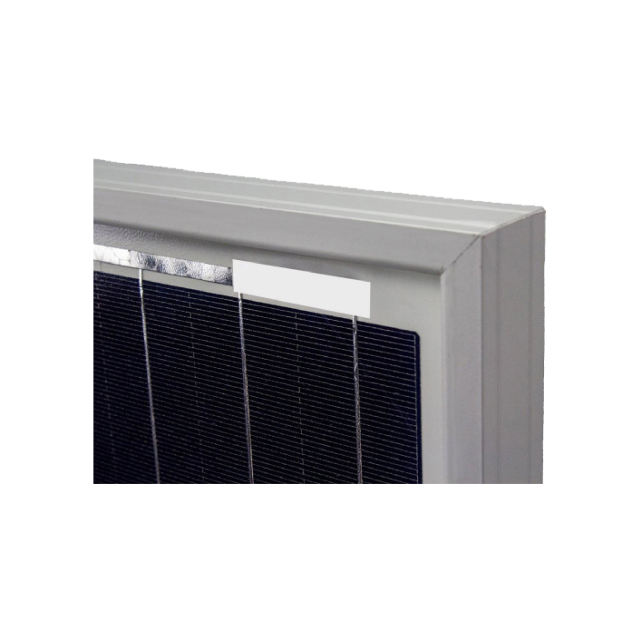

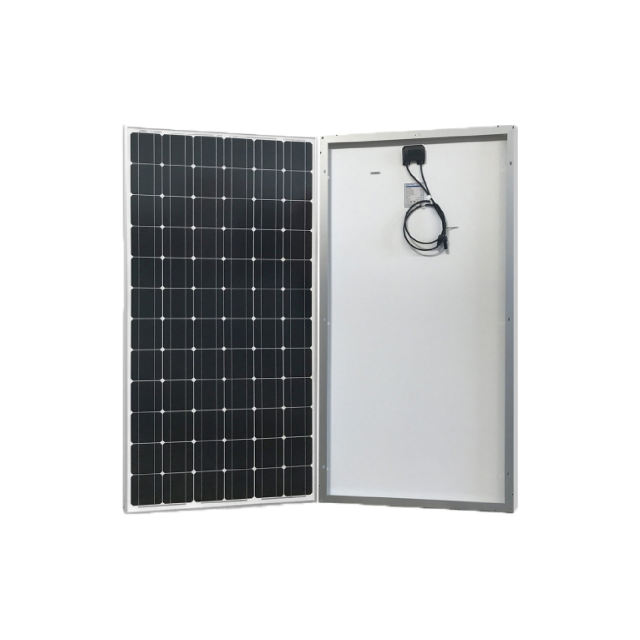

Monocrystalline Solar Panel
- 100W Dimensions: 970 x 530 x 30mm
- 100W Version B Dimensions : 950 x 530 x 30mm
- 200W Dimensions: 1390 x 700 x 30mm
Electrical Parameters |
||
Solar Panel Type |
SWM100W |
SWM200W |
Maximum Power |
100W |
200W |
Voltage at Pmax |
18.68V |
18.68V |
Current at Pmax |
5.35A |
10.16A |
Open-Circuit Voltage |
22.30V |
22.30V |
Short-Circuit Current |
5.63A |
10.67A |
Solar Cell Efficiency |
20%-22% |
20%-22% |
Power Tolerance |
±5% |
±5% |
Working Temperature |
-40°C-+80°C |
-40°C-+80°C |
Power Temperature Coefficient |
-0.43%°C |
-0.43%°C |
|
|
|
Mechanical Parameters |
||
Solar Cell Type |
Monocrystalline |
Monocrystalline |
Cell Main Line |
9BB/12BB |
9BB/12BB |
Cell Width |
158.75/161.75/166/182 |
158.75/161.75/166/182 |
Cell Array |
36pcs 3*12 |
36pcs 4*9 |
Panel Size |
- 100W : 970 x 530 x 30mm
|
1390 x 700 x 30mm |
Weight |
6.2KG |
11.5KG |
IP Injunction Box |
IP65 |
IP65 |
Cable |
PV2.5 90CM+MC4 |
PV4.0 90CM+MC4 |
Plastic Holder |
4pcs*25*20mm |
4pcs*25*20mm |
Diode Protect |
2*10A Diode |
4*10A Diode |
Maximum System Voltage |
1000 VDC |
1000 VDC |
Wind Coefficient Protection |
60m/s(200kg/sq.m) |
60m/s(200kg/sq.m) |
Laminated Structure |
3.2mm
|
3.2mm Glass+EVA+Cell+EVA+Backsheet+Frame |
Package |
Plastic+Foam+Carton,2pc/carton |
Plastic+Foam+Carton,2pc/carton |
