KD8 Series Pro Modular Door Station | DS-KD-KK

DS-KD-KK
- Modular door station Nametag unit, needs mounting bracket
- 6 call buttons, including 4 button covers
- Dial the resident at one-touch
- Backlight compensation
- IP65
S$84.00 S$153.00
(Excluding GST)
Quantity
-
+
20 In Stock 2 In Stock, Bukit batok Warehouse
4 In Stock, Ubi Warehouse
0 In Stock, RU Warehouse
0 In Stock, SG Warehouse
0 In Stock, AU Warehouse
14 In Stock, Tuas
, Tuas
4 In Stock, Ubi
2 In Stock, Bukit batok
14 In Stock, Tuas
  • Description
DS-KD-KK
KD8 Series Pro Modular Door Station
  • Dial the resident at one touch
  • Backlight compensation
  • Easy to and extend

Product Specifications

Processor
Embedded MCU Processor
Module-connecting
2 (1 input, 1 output)
Debug
1
Physical button
6
DIP switch
8
Power supply
Powered by DS-KD8003-IME1
Power consumption
0.8 W
Working temperature
-40° C to +55° C(-40° F to 131° F)
Working humidity
10% to 95%
IP protection level
IP65
Installation
Flush mounting, surface mounting

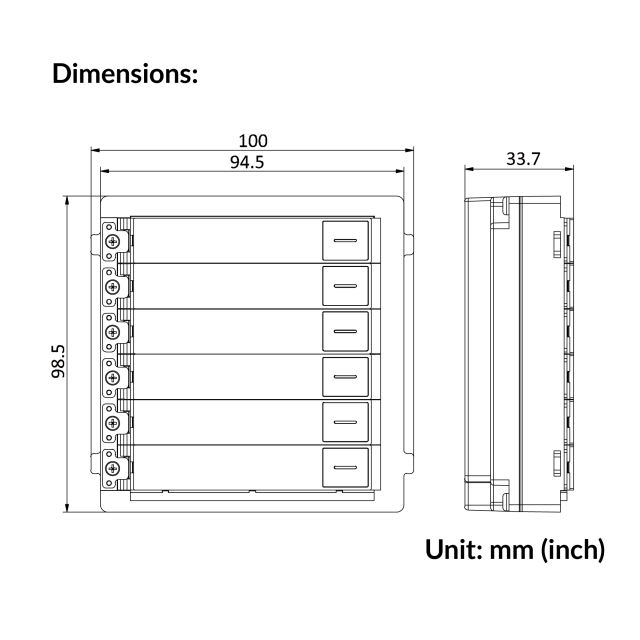

Dimension
98.2 mm × 100.2 mm × 33.7 mm (3.87" × 3.95" × 1.33")
Weight
438 g (with packaging)
190 g (without packaging)

Datasheet

Download Datasheet
