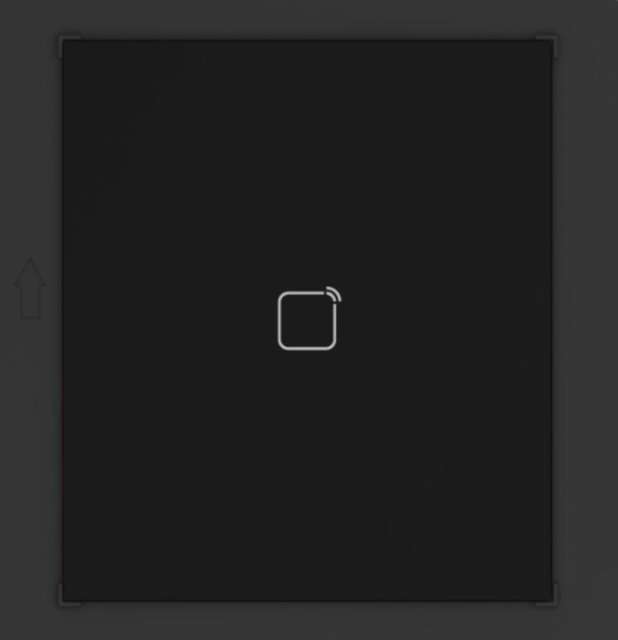

KD8 Series Pro Modular Door Station

DS-KD-M
- M1 card reader module of modular door station
- Support unlock door via swiping card, issuing cards
- IP65 protection level
- Backlight compensation behind the module
- Easy to use and extend
S$110.00 S$220.00
(Excluding GST)
Quantity
-
+
Asia
Ubi:
Bukit batok:
Tuas:
Please contact sales for latest stock quantities
  • Description
KD8 Series Pro Modular Door Station
DS-KD-M
  • M1 card reader module of modular door station
  • Support unlock door via swiping card, issuing cards
  • IP65 protection level
  • Backlight compensation behind the module
  • Easy to use and extend


Product Specifications
Operation Systems
Linux
Processor
Embedded high performance processor

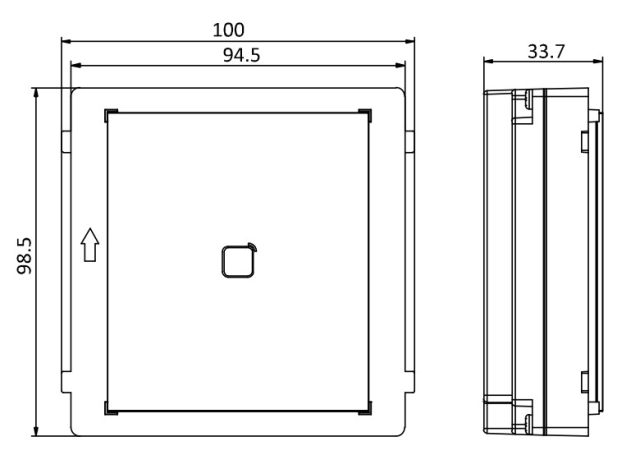

Dimensions (W × H × D)
98.5 mm × 100 mm × 33.7 mm (3.87" × 3.95" × 1.33")
Installation
Flush mounting, surface mounting
Weight
Net weight: 160 g
Gross weight: 421 g
Protective level
IP65
Power consumption
0.8 W
Working temperature
-40 °C to 55 °C (-40 °F to 131 °F)
Working humidity
10% to 95% (no-condensing)



Datasheet
Download Datasheet
