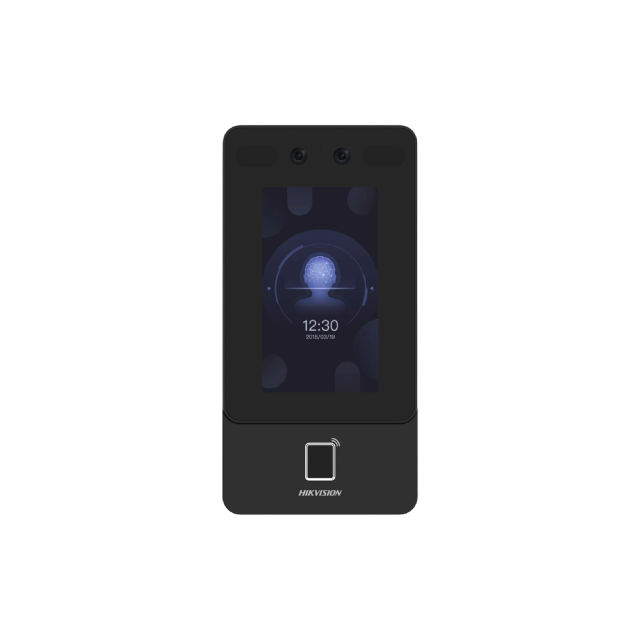

DS-K1T342MFX-E1
Face Recognition Terminal
Face recognition terminal adopts deep learning algorithm, which helps to recognize the face faster with higher accuracy. It also supports multiple authentication modes: face/card/fingerprint authentication, etc. It can be applied in multiple scenarios, such as buildings, enterprises, financial industries, and other important areas.
Specification
| Operation System |
Linux |
| Dimensions |
4.3-inch |
| Resolution |
272 × 480 |
| Type |
LCD |
| Operation Method |
Capacitive touch screen |
| Pixel |
2 MP |
| Lens |
× 2 |
| Video Standard |
PAL (Default) and NTSC |
| Wired Network |
10 M/100 M self-adaptive |
| PoE |
Standard, AT |
| Card Capacity |
3,000 |
| Face Capacity |
1,500 |
| Fingerprint Capacity |
3,000 |
| Event Capacity |
150,000 |
| Card Type |
M1 card |
| Card Reading Frequency |
13.56 MHz |
| Face Recognition Duration |
＜ 0.2 s |
| Face Recognition Accuracy Rate |
＞99% |
| Face Recognition Distance |
0.3 to 1.5 m |
| Power Supply |
Power input: Power interface (power adapter included, 12 VDC/1 A) or PoE (37 to 57 VDC/0.6 A)
Power output: Power supply for door lock, 12 VDC/1 A (only when the device is powered by PoE supporting powering supply for door lock) |
| Working Temperature |
-30 °C to 60 °C (-22 °F to 140 °F) |

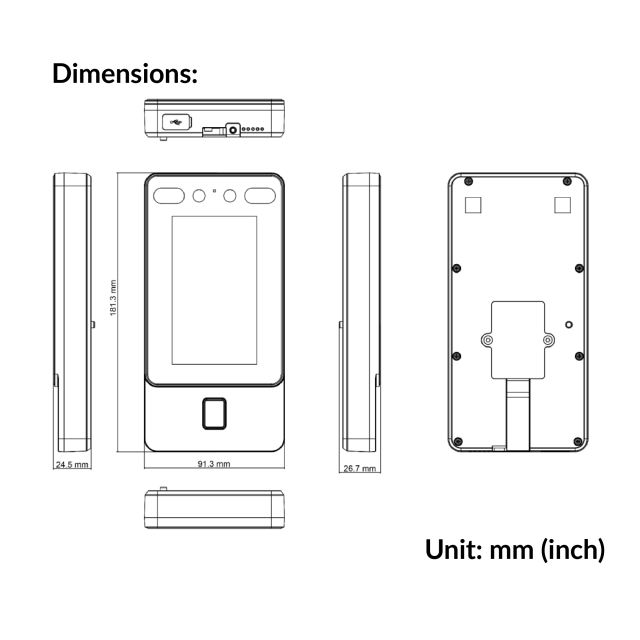

| Dimensions |
91.3 mm × 181.3 mm × 24.5 mm (3.59" × 7.14" × 0.96") |
| Weight |
Net weight: 0.36 kg (0.79 lbs) |
| Face Anti-Spoofing |
Support |
| Audio Prompt |
Support |
| Time Synchronization |
Support |
