Operating system
|
Linux
|
Screen size
|
2.4-inch
|
Resolution
|
440 × 320
|
Type
|
TFT
|
Operation method
|
Non touchable
|
Wired network
|
10/100 Mbps self adaptive
|
Wi-Fi
|
Support
|
PoE
|
IEEE802.3at, standard PoE
|
Card type
|
M1 card,M1 card content,CPU card No
|
Card reading frequency
|
13.56 MHz
|
Button
|
1 physical call button
|
Power supply
|
12 VDC, 1 A, standard PoE
|
Working temperature
|
-30 °C to 65 °C (-22 °F to 149 °F)
|
Working humidity
|
0 to 90% (No condensing)
|

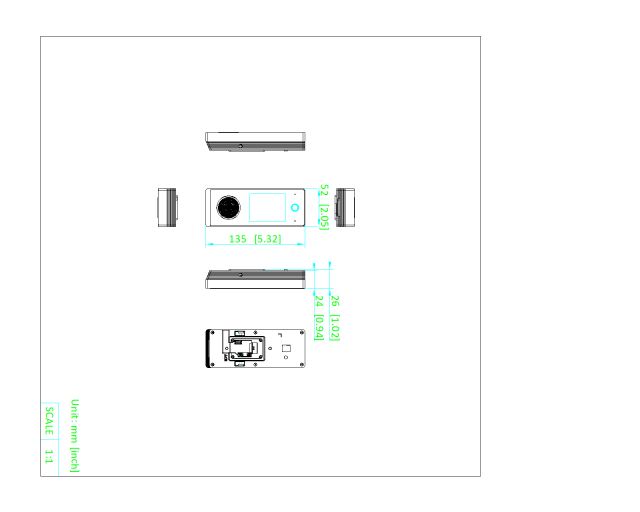

Product Dimensions (W × H × D)
|
135 mm × 52 mm × 26 mm (5.32" × 2.05" × 1.02")
|
Installation
|
Wall mounting
|
Protective level
|
IP65
|
Weight
|
Net weight: 0.19 kg (0.42 lb)
Rough weight: 0.59 kg (1.3 lb)
|
