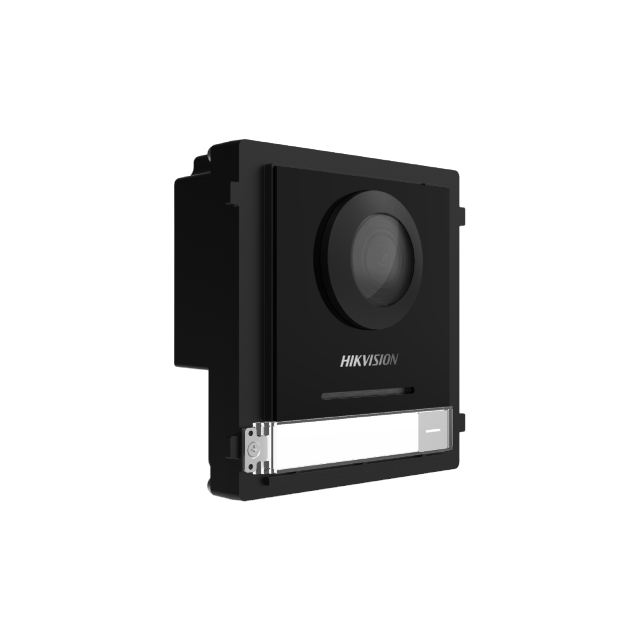

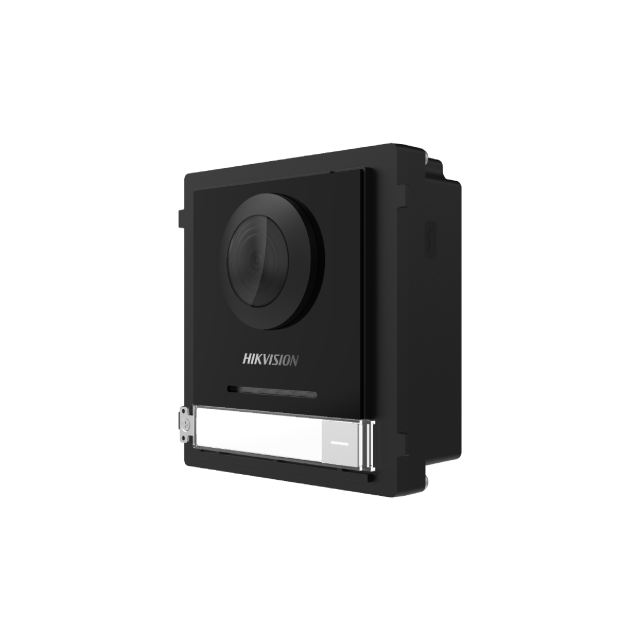

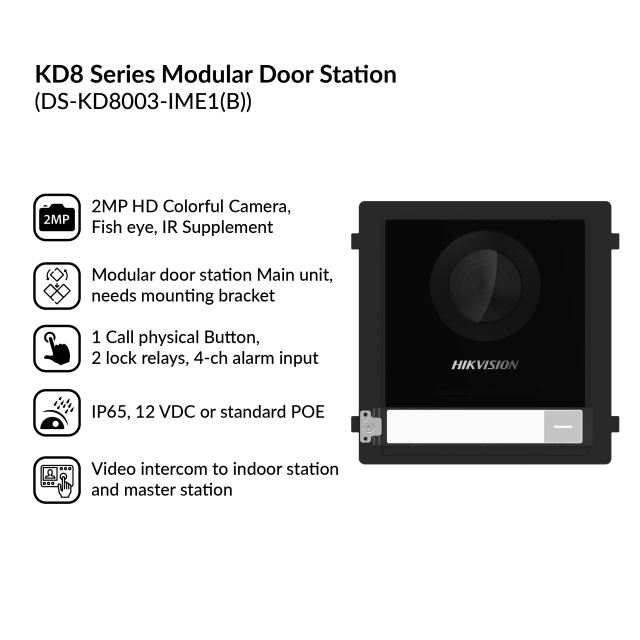

KD8 Series Pro Modular Door Station | DS-KD8003-IME1(B)

Name: KD8 Series Pro Modular Door Station | DS-KD8003-IME1(B)
Brand: Viskou E-Shop
SKU: 305303026
Price: 248 SGD
Availability: InStock

DS-KD8003-IME1(B)

- 2MP HD Colorful Camera, Fish eye, IR Supplement
- 1 Call physical Button, 2 lock relays, 4-ch alarm input
- Video intercom to indoor station and master station
- WEB Configuration
- IP65, 12 VDC or standard PoE

S$248.00 ~~S$451.00~~

(Excluding GST)

Quantity

-

+

11 In Stock, Ubi

6 In Stock, Bukit batok

27 In Stock, Tuas

Add to Favorite Items

Description

DS-KD8003-IME1
Video Intercom Module Door Station

2 MP HD video intercom function
1 Call physical Button, 2 lock relays, 4-ch alarm input
Video intercom to indoor station and master station
WEB Configuration
IP65, 12 VDC or standard PoE
Power output for electronic lock, max to 12 V, 500 mA

Product Specifications

Processor	Embedded Processor
Operation system	Embedded Linux operation system
Video Compression Standard	H.264
Resolution	2MP
Anti-flicker	50 Hz, 60 Hz
Field of view	Horizontal: 146° Vertical: 82°
Audio input	Built-in omnidirectional microphone
Alarm Input	4 (2 exit butttons and 2 door contacts by default)
Wired Network	10/100 Mbps self-adaptive Ethernet
Network protocol	TCP/IP, RSTP
Card capacity	Max. 6000
User capacity	Max. 2000
Linked Indoor Station Capacity	500
Sub Door Station Capacity	16
Power supply	12 VDC/PoE (IEEE 802.3af)
Working temperature	-40° C to +60° C (-40° F to 140° F)
Dimension	98 mm × 100mm × 42 mm (3.86" × 3.94" × 1.65")
Weight	380 g (without packaging)

Datasheet

Download Datasheet
