Four-Door Access Controller (Hikvision) | DS-K2604T

Name: Four-Door Access Controller (Hikvision) | DS-K2604T
Brand: Viskou E-Shop
SKU: 302913800
Price: 580 SGD
Availability: InStock

DS-K2604T

- Four-Door Access Controller
- Supports adding various user types: normal user, visitor, and user in blocklist
- Supports recognition and storage of card No. with maximum length of 20

S$580.00 ~~S$1,055.00~~

(Excluding GST)

Quantity

1 In Stock, Ubi

2 In Stock, Bukit batok

26 In Stock, Tuas

Add to Favorite Items

Description

The DS-K2600T series access controller contains network and RS-485 interface, which supports TCP/IP and RS-485 communication protocols. The communication data is encrypted to improve the security of the system. The controller also supports offline operation and is designed with tamper-proof switch.

DS-K2604T (Four-Door Access Controller)

32-bit high-speed processor
User-centered design. Supports adding various user types: normal user, visitor, and user in blocklist
Supports up to 100,000 cards (including 97,000 non visitor cards and 3,000 visitor cards) and 300,000 card presenting records
Various indicators to show different status
Backup battery design, watchdog design and tamper-proof function
Data can be permanently saved after the access controller is powered off

Product Specifications

Power supply (with Load)	≤ 100 W
Power supply (Without Load)	≤ 4 W
Processor	32-bit
Storage	32 M
Communication	TCP/IP, RS-485, Wiegand (W26/W34)
Capacity	100,000 cards 300,000 events
LED Indicator	Power supply status, communication status, and work status
Accessible Card Reader	8 card readers (RS-485 interface), and 4 card readers (Wiegand interface)
Input interface	Alarm input × 4 Door contact × 4 Exit button × 4 Case input × 8 Tamper alarm × 1
Output interface	Lock relay × 4 Alarm relay × 4
Working temperature	-20 °C to +65 °C (-4 °F to +149 °F)
Working humidity	10% to 90% (Non-condensing)

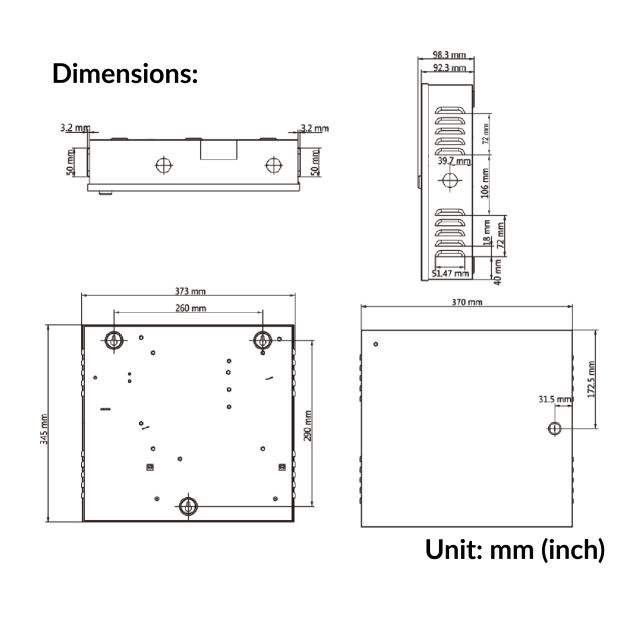

Dimensions (L × W × H)	373 mm × 345 mm × 98 mm (14.7" × 13.6" × 3.6")
