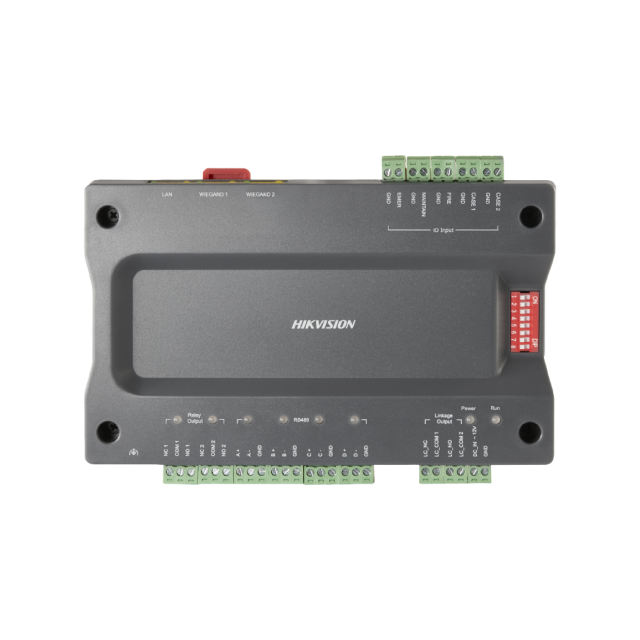

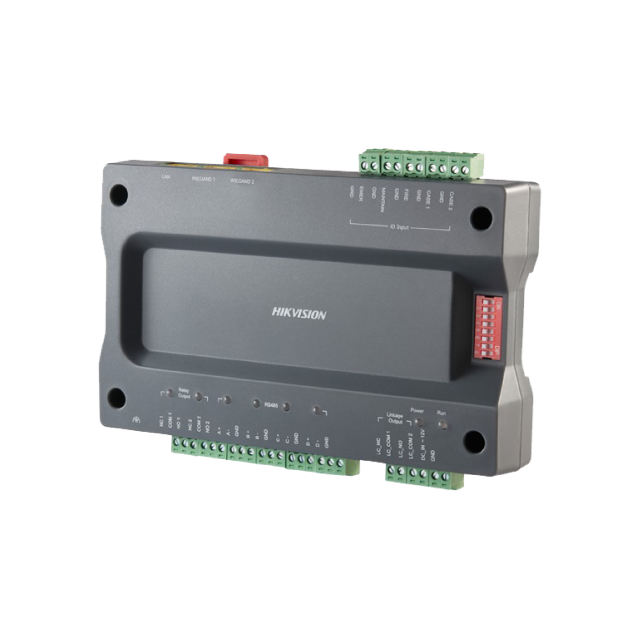

Elevator Master Controller | DS-K2210
- Multiple authentication modes
- Control 128 floors' permissions
- Watchdog and tamper-proof function
- 20,000 cards and 50,000 events storage
- Configure and manage device via web client and client software
Processor |
32 bit |
Communication protocol |
TCP/IP |
Alarm input |
1 Panic Button; 1 Fire Alarm Button; 1 Maintenance Button |
Alarm output |
4 Relay Outputs |
RS-485 |
2 |
Wiegand |
2 |
Power supply |
12 VDC±15% |
Working temperature |
-40°F to 158°F |
Working humidity |
0% to 90% (No Condensation) |
Dimensions |
167(L)mm*105(W)mm*30(H)mm |
Installation |
Guide Rail Installation |
