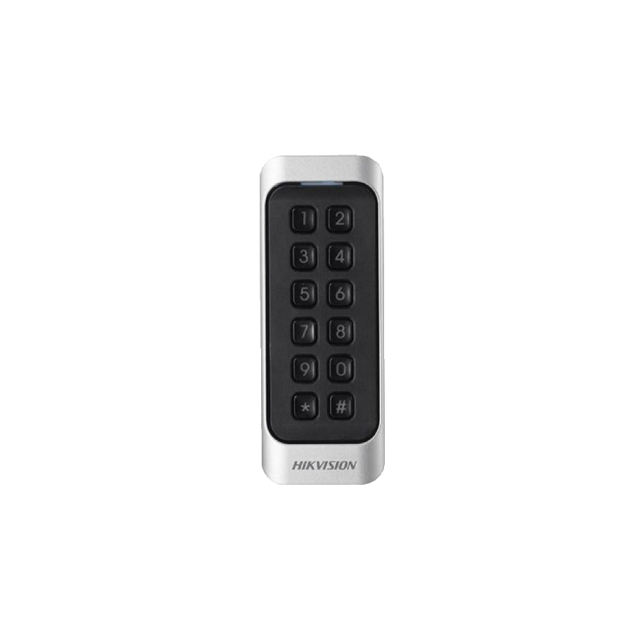

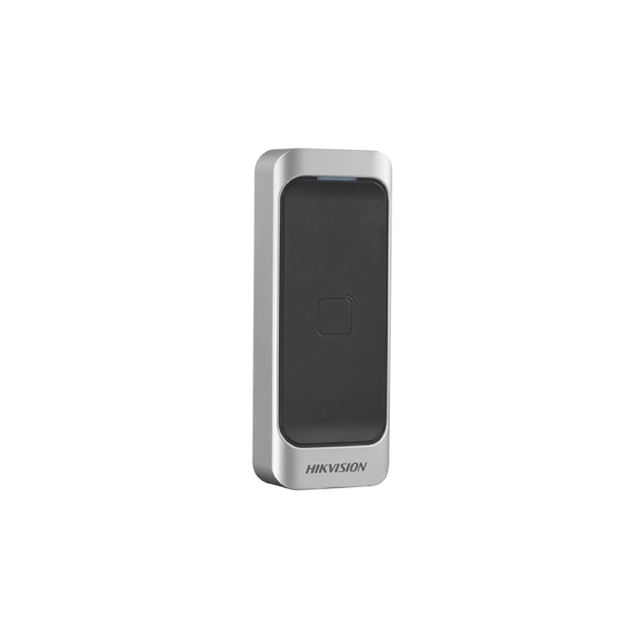

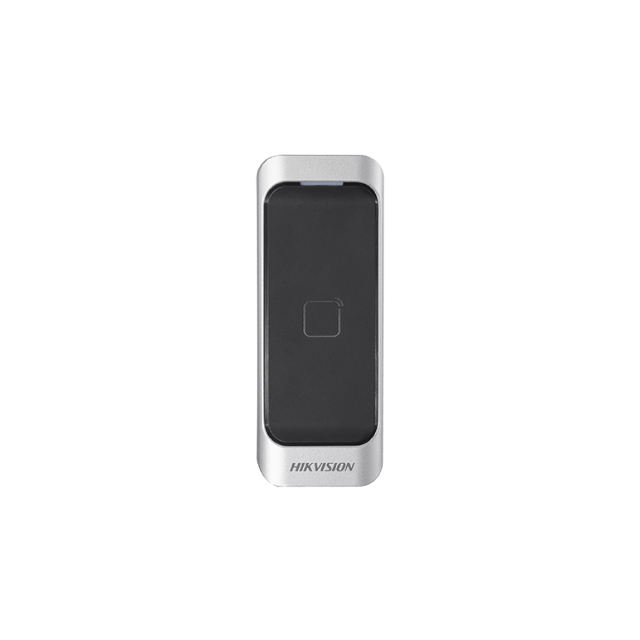

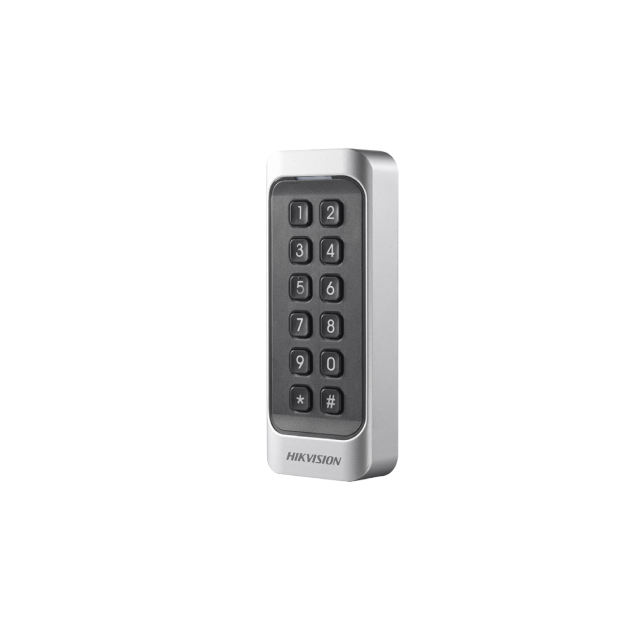

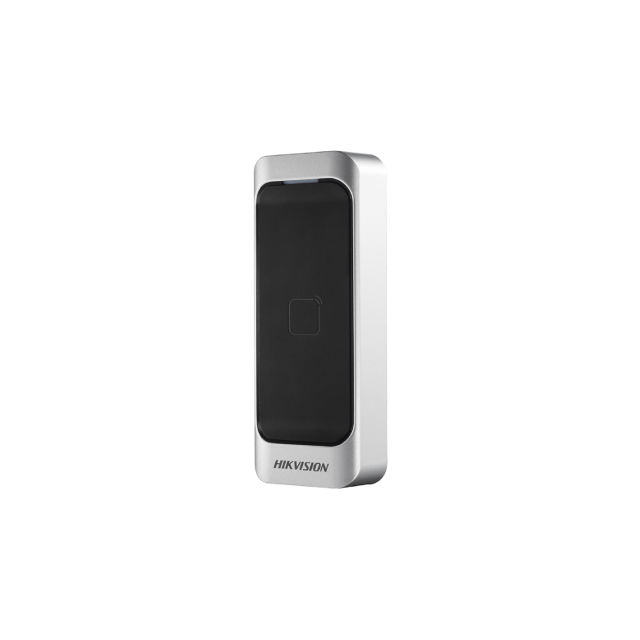

Pro 1107 Series Card Reader | DS-K1107AM, DS-K1107AMK

DS-K1107AM, DS-K1107AMK
- Mifare Card Reader
- Keypad with 12 Keys
- Built-in audible beeper
- RS-485, Wiegand (W26/W34) protocol, and OSDP protocol
- IP65
S$64.00 S$116.00
(Excluding GST)
    Please select the information you wantX
  • Model:
    DS-K1107AM
    DS-K1107AMK
Quantity
-
+
27 In Stock 1 In Stock, Bukit batok Warehouse
9 In Stock, Ubi Warehouse
0 In Stock, RU Warehouse
0 In Stock, SG Warehouse
0 In Stock, AU Warehouse
32 In Stock, Tuas
, Tuas
9 In Stock, Ubi
1 In Stock, Bukit batok
32 In Stock, Tuas
  • Description
DS-K1107AMK
Mifare Card Reader
  • Equipped with the 32-bit high-speed processor
  • RS-485 and Wiegand (W26/W34) protocol, and OSDP protocol
  • Build-in Mifare card reading module (Frequency: 13.56MHz). Meets the standard of ISO 14443-A. Supports reading Mifare card No (DS-K1107M/DS-K1107MK)
  • Supports tampering alarm
  • Built-in buzzer for identifying the reading status
  • Online upgrade function
  • Watchdog design for repairing itself in case that exception occurs, to ensure the long service life of the reader

Product Specifications

Power Supply
12V DC
Processor
32-bit
Reading Range
≤50mm (≤1.97")
Communication Interface
RS-485/Wiegand (Set via DIP Switch)
Audio Alert
Beeper
Keypad
Keypad with 12 Keys (0~9, *, #)
LED Indicator
Power Indicator, Status Indicator
Working Temperature
-20°C to +65°C
Dimensions
115mm × 44mm × 22mm (4.53” × 1.73” × 0.87”)
Tamper Alarm
Support
Protection Level
IP65
Installation
Wall Mounting with Screws; Do Not Support Gang Box

Datasheet

Download Datasheet
