Pro 1101 Series Card Reader

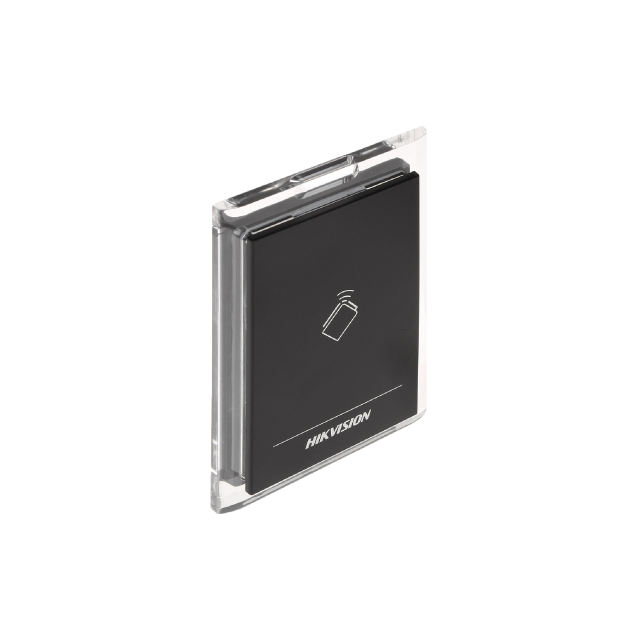

Name: Pro 1101 Series Card Reader
Brand: Viskou E-Shop
SKU: 302900507
Price: 50 SGD
Availability: InStock

DS-K1101M / DS-K1101MK

- Mifare Card Reader with Keypad
- Built-in audible beeper
- RS-485 and Wiegand interface
- IP64

S$50.00 ~~S$91.00~~

(Excluding GST)

0 In Stock, Ubi

0 In Stock, Bukit batok

0 In Stock, Tuas

DS-K1101MK
Mifare Card Reader with Keypad

PC+ABS material shell with PMMA panel design
Equipped with the 32-bit high-speed processor
Built-in audible beeper
Display the reader status with LED indicator
DIP switch
RS485 and Wiegand(W26/W34) protocol
Tamper-proof alarm
Online upgrade function(under the 485 communication mode), and card reader can degrade to pre-upgrade status in case of upgrading failed
Watchdog design for repairing itself in case that exception occurs, to ensure the long service life of the reader
Dust-proof and water-proof design
Read Mifare card and obtain the card No.

Product Specifications

Power Supply	12V DC
Processor	32-bit
Reading Range	≤50mm (≤1.97")
ID Settings	via DIP Switch
Audio Alert	Beeper
Keypad	Keypad with 12 Keys (0 to 9, *, #)
LED Indicator	Power Indicator; Status LED Indicator
Working Temperature	-20°C to +65°C
Dimensions	132.0mm × 92.3mm × 20.5mm (5.20” × 3.63” × 0.81")
Weight	≤0.14Kg
Protection Level	IP 64
Installation	Applied for 120 Gang Box Only
