Image Sensor
|
1/2.7" Progressive Scan CMOS
|
Min. Illumination
|
Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
|
Day & Night
|
IR Cut Filter
|
Angle Adjustment
|
Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°
|
Field of Vision
|
2.8 mm: 111.6° (H), 59.1° (V), 133.9° (D)
4 mm: 91.5° (H), 46.1° (V), 109.8° (D)
6 mm: 56° (H), 29.8° (V), 65.3° (D)
|
IR Distance
|
Up to 30 m
|
Video Compression
|
H.265+/H.265/H.264+/H.264
|
Max. Resolution
|
1920 × 1080
|
Max. Frame
|
50 Hz: 25 fps (1920 × 1080, 1280 × 720)
60 Hz: 30 fps (1920 × 1080, 1280 × 720)
|
Power
|
12 VDC ± 25%, 0.4 A, max. 5 W, Ø 5.5 mm coaxial power plug PoE: 802.3af, Class 3, 36 V to 57 V, 0.20 A to 0.15 A, max. 6.5 W
|
Working Temperature
|
-30 °C to 60 °C (-22 °F to 140 °F). Humidity: 95% or less (non-condensing)
|
Protection
|
IP67 (IEC 60529-2013) IK10 (IEC 62262: 2002)
|

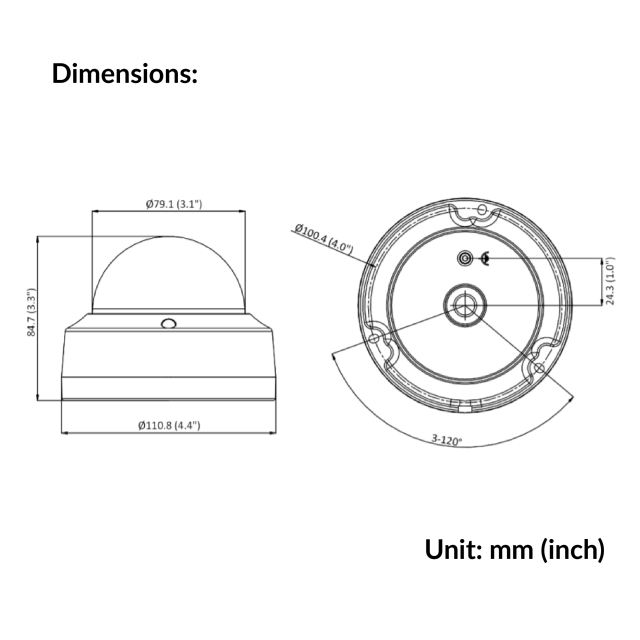

Dimensions
|
Ø 110.8 mm × 84.7 mm (Ø 4.4" × 3.3")
|
Weight
|
Approx. 497 g (1.1 lb.)
|
