Image Sensor
|
1/3" Progressive Scan CMOS
|
Max. Resolution
|
1920 × 1080
|
Day & Night
|
IR cut filter
|
Angle Adjustment
|
Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°
|
Lens Type
|
Fixed focal lens, 2.8, 4, and 6 mm optional
|
Focal Length & FOV
|
2.8 mm, horizontal FOV 101°, vertical FOV 56°, diagonal FOV 118°
4 mm, horizontal FOV 78°, vertical FOV 42°, diagonal FOV 92°
6 mm, horizontal FOV 49°, vertical FOV 28°, diagonal FOV 56°
|
Supplement Light Range
|
Up to 30 m
|
Main Stream
|
50 Hz: 25 fps (1920 × 1080, 1280 × 720, 768 x 432)
60 Hz: 30 fps (1920 × 1080, 1280 × 720, 768 x 432)
|
Wi-Fi Protocol
|
IEEE802.11b, IEEE802.11g, IEEE802.11n
|
Frequency Range
|
2.4 GHz to 2.4835 GHz
|
Wide Dynamic Range (WDR)
|
Digital WDR
|
Material
|
Plastic
|

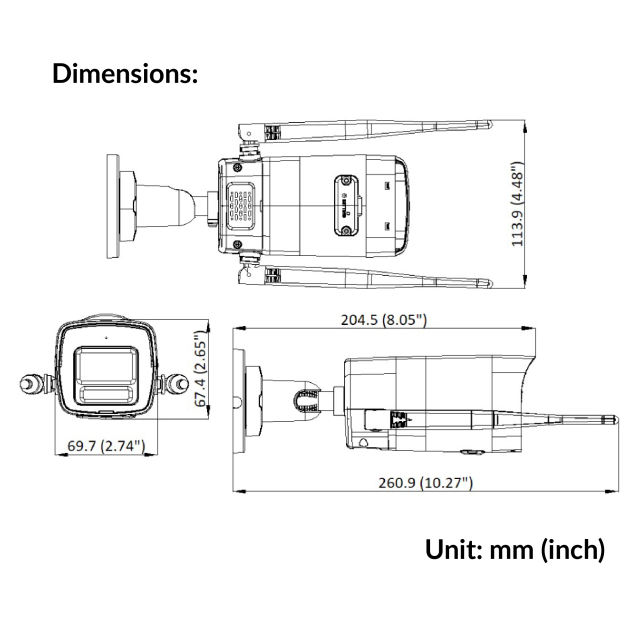

Dimension
|
260.9 mm × 113.9 mm × 67.4 mm (10.3" × 4.5" × 2.7")
|
Weight
|
Approx. 310 g (0.68 lb.)
|
Protection
|
IP66: IEC 60529-2013
|
