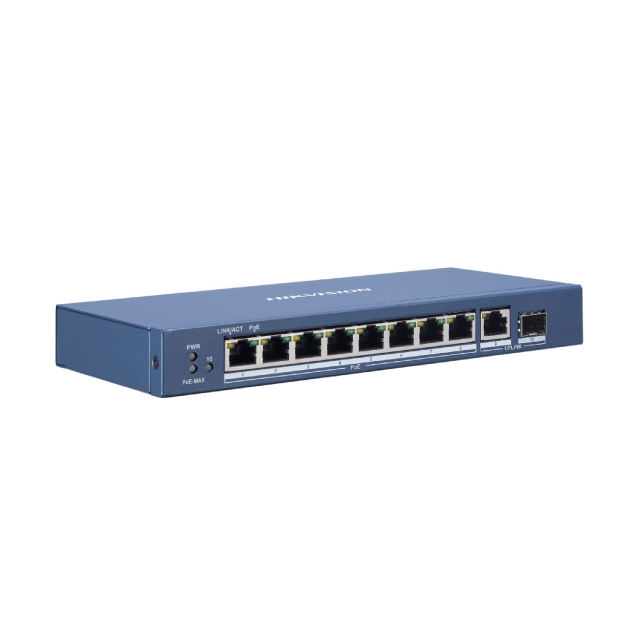

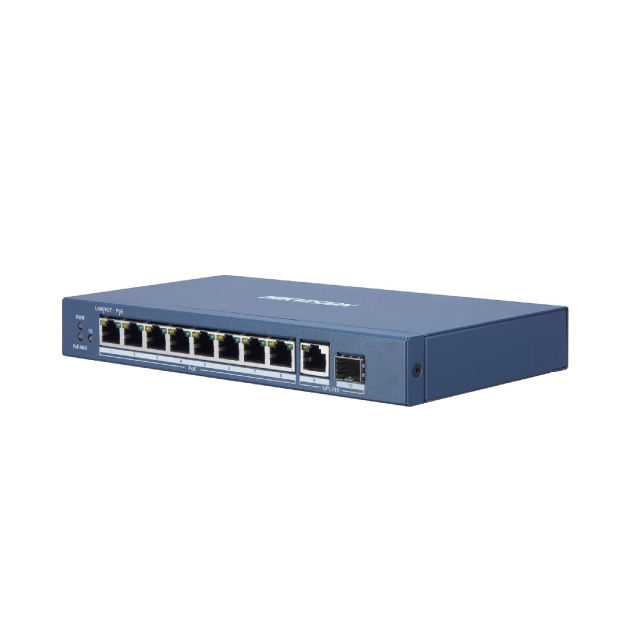

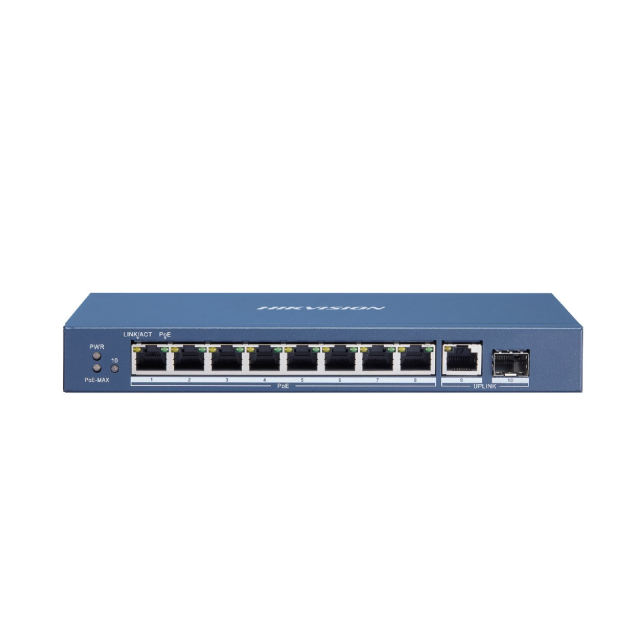

8 Port Gigabit Unmanaged PoE Switch | DS-3E0510P-E/M(B)

Name: 8 Port Gigabit Unmanaged PoE Switch | DS-3E0510P-E/M(B)
Brand: Viskou – Connecting Intelligence, Powering The Future
SKU: 301803377
Price: 193 SGD
Availability: InStock

DS-3E0510P-E/M(B)

- 8× Gigabit PoE
- 80W PoE Budget
- 802.3af/at Compatible
- 6kV Surge Protection
- Fanless & Metal Design

S$193.00 ~~S$400.00~~

(Excluding GST)

Add to Favorite Items

Description

Pro Face Access Terminal
DS-3E0510P-E/M(B)

- 8× Gigabit PoE
- 80W PoE Budget
- 802.3af/at Compatible
- 6kV Surge Protection
- Fanless & Metal Design

Product Specifications

Net Weight	0.635 kg (1.40 lb)
Dimensions (W × H × D)	217.6 mm × 27.8 mm × 108.55 mm (8.6'' × 1.1'' × 4.3'')
Surge Protection	6 kV
Operating Temperature	0 °C to 40 °C (32 °F to 104 °F)
Shell	Metal material
Power Supply	48 V DC, 1.35 A
Max. Power Consumption	65 W
Ports	8 × Gigabit PoE ports, 1 × Gigabit RJ45 port, 1 × Gigabit SFP fibre optical port
PoE standard	IEEE 802.3af, IEEE 802.3at
PoE power pin	End-span: 1/2(+), 3/6(-)
PoE port number	Ports 1 to 8
Max. port power	30 W
Forwarding mode	14.88 Mpps
MAC address table	4 K
Switching capacity	20 Gbps
