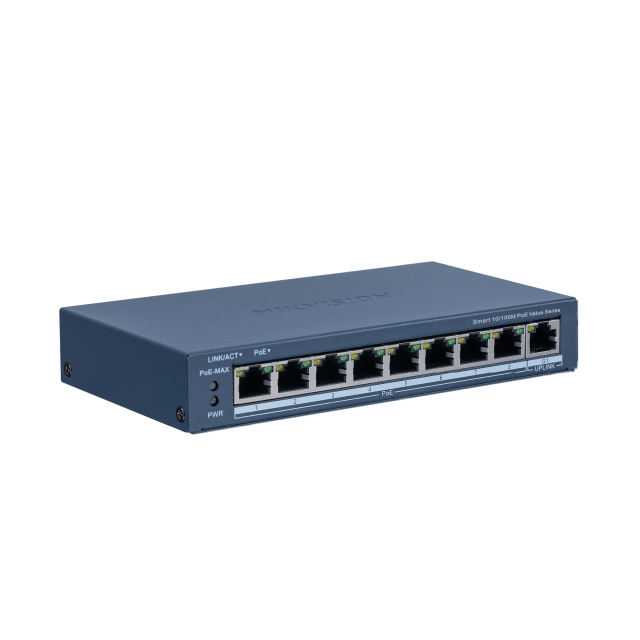

8 Port Fast Ethernet Smart POE Switch | DS-3E1309P-EI/M

Name: 8 Port Fast Ethernet Smart POE Switch | DS-3E1309P-EI/M
Brand: Viskou – Connecting Intelligence, Powering The Future
SKU: 301803563
Price: 171 SGD
Availability: InStock

DS-3E1309P-EI/M (B)

- 8 × 10/100 Mbps PoE Ports + Gigabit RJ45 port
- 60 W Total PoE Power Budget
- Up to 300 m Long-Range PoE Transmission
- PoE Watchdog for Automatic Camera Recovery
- 6 kV Surge Protection

S$171.00 ~~S$354.00~~

(Excluding GST)

Add to Favorite Items

Description

8 Port Fast Ethernet Smart POE Switch
DS-3E1309P-EI/M (B)

8 × 10/100 Mbps PoE ports, 1 × Gigabit RJ45 port
Total PoE Power Budget 80 W
Support 802.1Q VLAN
Support PoE watchdog to detect and restart the cameras that do not respond
Support STP/RSTP loop prevention
Support cable detection to locate failure
Up to 300 m Long Range PoE Transmission
6 kV Surge Protection

Product Specifications

Ports	8 × 10/100 Mbps PoE port, 1 × Gigabit RJ45 port
Switching Capacity	Whole-Device Performance: 5.6 Gbps Port Performance: 3.6 Gbps
Packet Forwarding Rate	Whole-Device Performance: 4.17 Mpps Port Performance: 2.68 Mpp
PoE Standard	IEEE 802.3af,IEEE 802.3at
PoE Power Pin	8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-)
PoE Port	PoE: Ports 1 to 8
