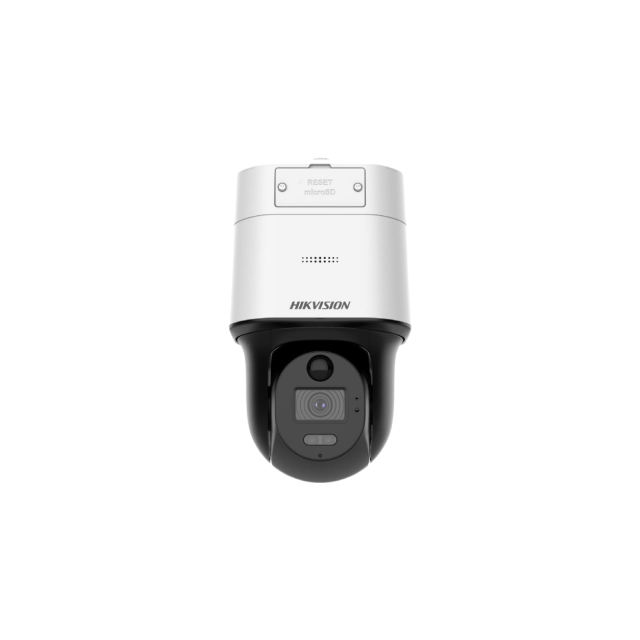

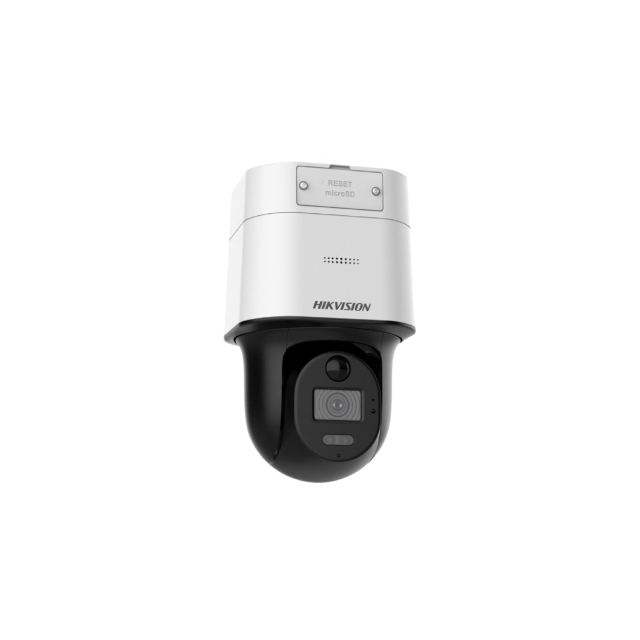

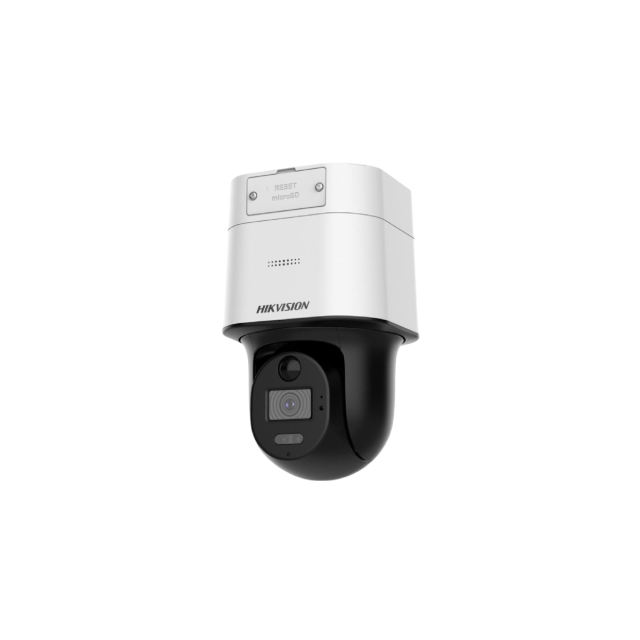

4MP ColorVu Solar-Powered Security PT Camera Setup | DS-2XS3Q47G1-LDWH/C18S40(4mm)(O-STD)/EU

Name: 4MP ColorVu Solar-Powered Security PT Camera Setup | DS-2XS3Q47G1-LDWH/C18S40(4mm)(O-STD)/EU
Brand: Viskou – Connecting Intelligence, Powering The Future
SKU: 311324442
Price: 2982 SGD
Availability: OutOfStock

DS-2XS3Q47G1-LDWH/C18S40(4mm)(O-STD)/EU

- 4 MP resolution
- 24/7 colorful imaging
- Support Network Bridge P2P communication

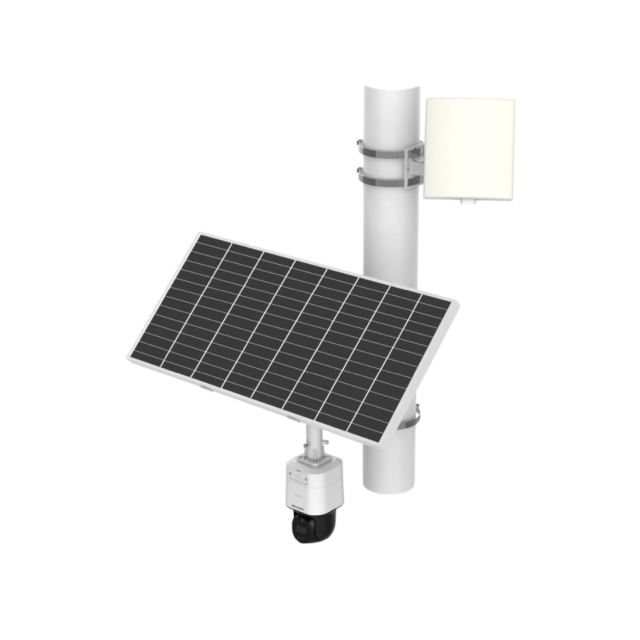

- Standalone with solar panel and built-in battery
- Provide real-time security via built-in two-way audio

S$2,982.00 ~~S$6,177.00~~

(Excluding GST)

Add to Favorite Items

Description

DS-2XS3Q47G1-LDWH/C18S40(4mm)(O-STD)/EU
4MP ColorVu Solar-powered Security PT Camera Setup

Product Specifications

Image Sensor	1/3" Progressive Scan CMOS
Max. Resolution	2560 × 1440
Day & Night	24/7 color imaging
Angle Adjustment	Solar panel: pan: 0° to 358°, tilt: -40° to 0°; camera: pan: 0° to 340°, tilt: -5° to 105°
Focal Length & FOV	4 mm, horizontal FOV 76°, vertical FOV 41°, diagonal FOV 89°
Movement Range (Pan)	0° to 340°
Movement Range (Tilt)	-5° to 105°
Main Stream	50 Hz: 12.5 fps (2560 × 1440, 1920 × 1080, 1280 × 720) 60 Hz: 15 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
Wide Dynamic Range (WDR)	Digital WDR

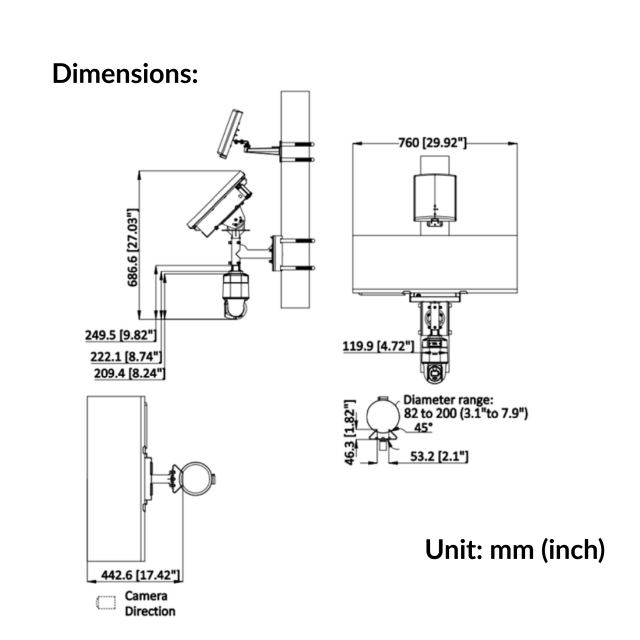

Dimension	686.6 mm × 442.6 mm × 760 mm (27.03" × 17.42" × 29.92")
Weight	Approx. 13.30 kg (29.3 lb.)
Battery Type	Lithium
Capacity	8.4 Ah × 2 packs
Cycle Lifetime	Performance mode: 3.6 days, Proactive mode: 6 days, Standby mode: 30 days
Battery Life	More than 500 cycles
Battery Weight	Approx. 1400 g (3.1 lb.)
Extended Dimension	84 mm × 221 mm × 37.3 mm (3.31" × 8.70" × 1.47")
Protection	IP65: IEC 60529-2013

Datasheet
