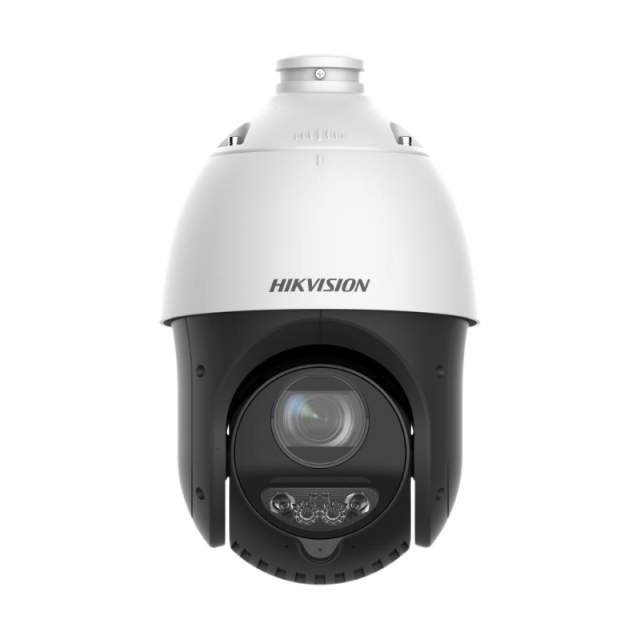

DS-2DE4425IWG1-E
4MP 25X Powered by DarkFighter IR Acusense Network Speed Dome
- HIK AI-ISP for excellent noise reduction effect
- High focus speed with self-learning focus technology keep the picture clear every single second
- High quality imaging with 4 MP resolution
- 1/2.8" progressive scan CMOS
- 25× optical zoom and 16× digital zoom provide close up views over expansive areas
- Focuses on human and vehicle targets classification based on deep learning
- Support face capture. Up to 5 faces captured at the same time
- Support link to hikvision network speakers and network microphones to play audio
- Improve playback efficiency and be compatible with the AcuSeek and AcuSearch technologies of NVR for combined use
- Expansive night view with up to 100 m IR distance
- Active strobe light and audio alarm to warn intruders off
- Built-in arrayed dual-microphone for real-time high quality audio security
Product Specifications
Image Sensor
|
1/2.8” progressive scan CMOS
|
Min. Illumination
|
Color: 0.005 Lux @ (F1.6, AGC ON); B/W: 0.001 Lux @ (F1.6, AGC ON), 0 Lux with IR
|
WDR
|
120 dB WDR
|
Focal Length
|
4.8 mm to 120 mm
|
Field of View
|
Horizontal field of view: 55° to 2.4° (wide-tele),
Vertical field of view: 33° to 1.4° (wide-tele),
Diagonal field of view: 61.5° to 2.8° (wide-tele)
|
Aperture Range
|
MAX. F1.6
|
IR Distance
|
IR Distance: up to 100 m
|
Video Compression
|
Main stream: H.265+/H.265/H.264+/H.264
Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264/MJPEG
|
Max. Resolution
|
2560 × 1440
|
ZOOM
|
25 × optical, 16 × digital
|
Power
|
12 VDC, max. 18 W, including max. 1.6 W for heater and 9 W for IR; PoE (802.3at)
|
Working Temperature
|
-30 °C to 65 °C (-22 °F to 149 °F). Humidity 90% or less (non-condensing)
|
Protection Level
|
IP67 (IEC 60529-2013),TVS 6000 V lightning protection, surge protection and voltage transient protection
|
Material
|
ADC 12
|

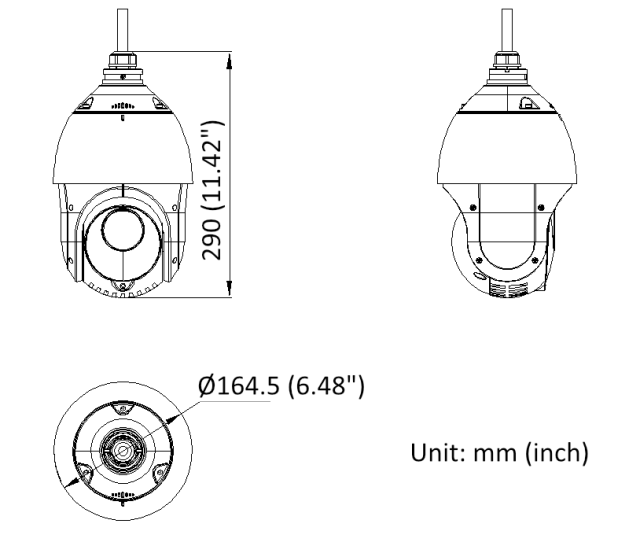

Dimensions
|
Φ 164.5 mm × 290 mm (Φ 6.48" × 11.42")
|
Weight
|
Approx. 2 kg (4.41 lb)
|
Datasheet
Download Datasheet
