Image Sensor
|
1/2.7" Progressive Scan CMOS
|
Min. Illumination
|
0.028 Lux @ (F2.0, AGC ON), 0 Lux with IR
|
Day & Night
|
ICR Cut
|
WDR
|
120 dB
|
Angle Adjustment
|
Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°
|
Field of Vision
|
180° (H), 101°(V), 180° (D)
|
IR Distance
|
20 m
|
Video Compression
|
H.265+/H.265/H.264+/H.264
|
Max. Resolution
|
2688 × 1520
|
Max. Frame
|
50Hz: 25fps (2688 × 1520, 2304 × 1296, 1920 × 1080, 1280 × 720)
60Hz: 24fps (2688 × 1520), 30fps (2304 × 1296, 1920 × 1080, 1280 × 720)
|
Power
|
12 VDC ± 25%; PoE (802.3at, class 4)
|
Working Temperature
|
-30 °C to 60 °C (-22 °F to 140 °F), humidity 95% or less (non-condensing)
|
Material
|
Metal
|
Protection
|
IP67
|

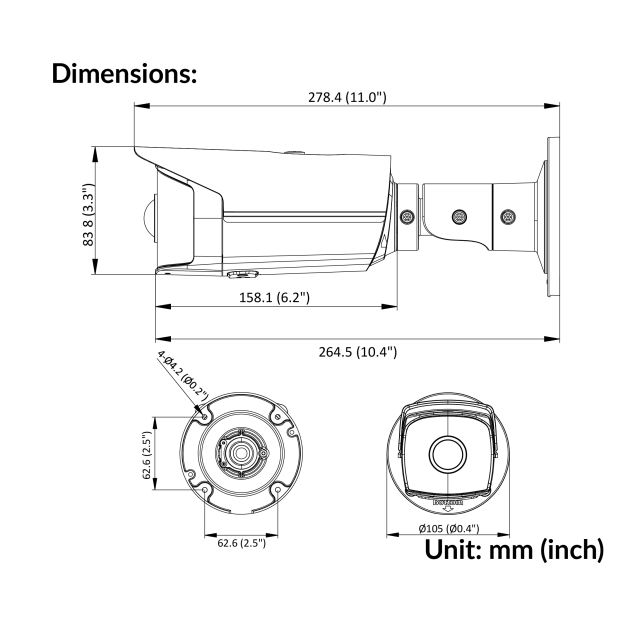

Dimensions
|
Φ105 × 278 mm (Φ4.1″ × 10.9″)
|
Weight
|
570 g (1.26 lb.)
|
