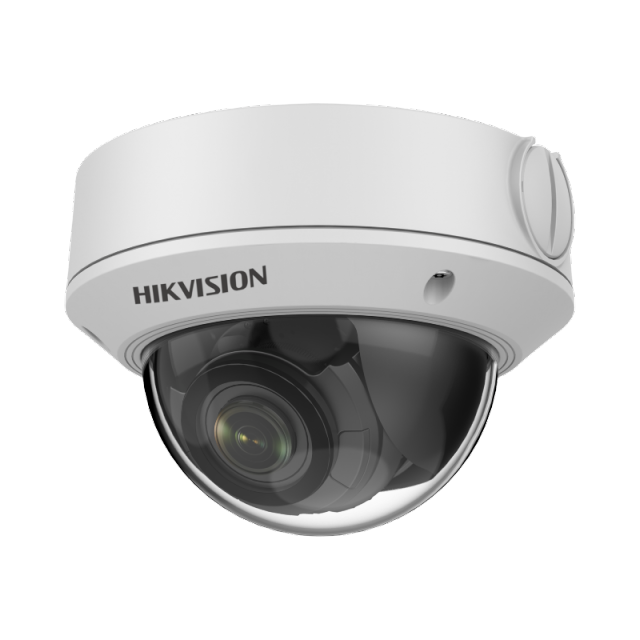

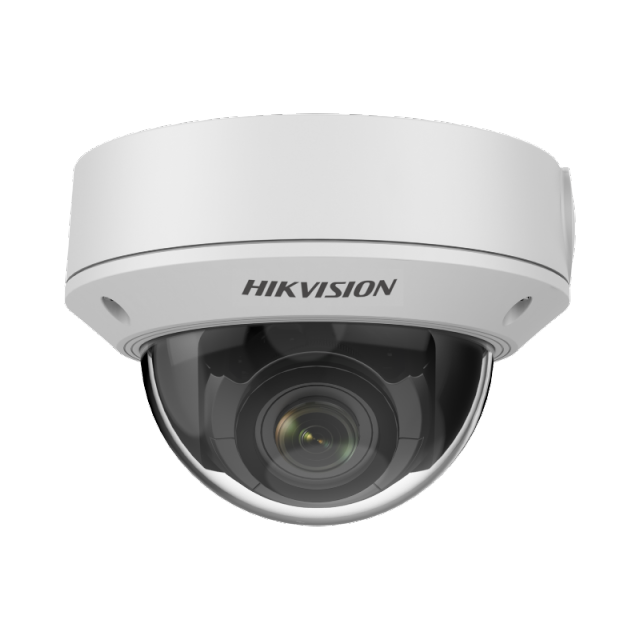

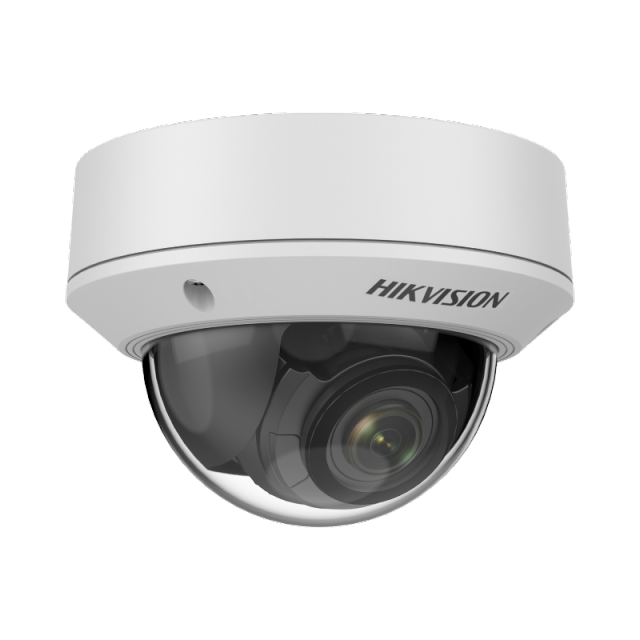

2MP MD 2.0 Varifocal Dome Network Camera | DS-2CD1723G2-IZ

Name: 2MP MD 2.0 Varifocal Dome Network Camera | DS-2CD1723G2-IZ
Brand: Viskou – Connecting Intelligence, Powering The Future
SKU: 311320817
Price: 330.4 SGD
Availability: InStock

DS-2CD1723G2-IZ(2.8-12mm)

- 2MP resolution
- 2.8 to 12 mm motorized varifocal lens
- Up to 256 GB SD card slot
- IP67 ， IK10
- EXIR 2.0: advanced infrared technology with long IR range
- Efficient H.265+ compression technology

S$330.40 ~~S$684.40~~

(Excluding GST)

Add to Favorite Items

Description

DS-2CD1723G2-IZ(2.8-12mm)
2MP MD 2.0 Varifocal Dome Network Camera

High quality imaging with 2 MP resolution
Support human detection
2.8 to 12 mm motorized varifocal lens for easy installation and monitoring
Up to 256 GB SD card slot for storage
Water and dust resistant (IP67), vandal proof (IK10)
EXIR 2.0: advanced infrared technology with long IR range
Clear imaging even with strong back lighting due to DWDR technology
Efficient H.265+ compression technology

Product Specifications

Image Sensor	1/2.9" Progressive Scan CMOS
Min. Illumination	Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
Angle Adjustment	Pan: 0° to 355°, tilt: 0° to 70°, rotate: 0° to 355°
Wide Dynamic Range	Digital WDR
Day & Night	IR cut filter
Focal Length & FOV	2.8 to 12 mm, horizontal FOV 102.4° to 31.2°, vertical FOV 54.4° to 17.5°, diagonal FOV 121.8° to 35.7°
IR Distance	Up to 30 m
Video Compression	Main stream: H.265+/H.265/H.264+/H.264, Sub-stream: H.265/H.264/MJPEG
Max. Resolution	1920 × 1080
Main Stream	50 Hz: 25 fps (1920 × 1080, 1280 × 720) 60 Hz: 30 fps (1920 × 1080, 1280 × 720)
On-Board Storage	Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB
Power	12 VDC ± 25%, 0.8 A, max. 9.6 W, Ø 5.5 mm coaxial power plug, reverse polarity protection, PoE: 802.3af, Class 3, 36 V to 57 V, 0.32 A to 0.2 A, max. 11.5 W
Storage Conditions	-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Material	Metal
Protection	IP67: IEC 60529-2013,IK10: IEC 62262:2002
Dimensions	Ø 141 mm × 99.9 mm (Ø 5.6" × 3.9")
Weight	Approx. 820 g (1.8 lb.)

Datasheet

Download Datasheet

Customer Reviews

Write a review

Sign In With:

2MP MD 2.0 Varifocal Dome Network Camera | DS-2CD1723G2-IZ

Quantity

Image Sensor

1/2.9" Progressive Scan CMOS

Min. Illumination

Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR

Angle Adjustment

Pan: 0° to 355°, tilt: 0° to 70°, rotate: 0° to 355°

Wide Dynamic Range

Digital WDR

Day & Night

IR cut filter

Focal Length & FOV

2.8 to 12 mm, horizontal FOV 102.4° to 31.2°, vertical FOV 54.4° to 17.5°, diagonal FOV 121.8° to 35.7°

IR Distance

Up to 30 m

Video Compression

Main stream: H.265+/H.265/H.264+/H.264, Sub-stream: H.265/H.264/MJPEG

Max. Resolution

1920 × 1080

Main Stream

50 Hz: 25 fps (1920 × 1080, 1280 × 720) 60 Hz: 30 fps (1920 × 1080, 1280 × 720)

On-Board Storage

Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB

Power

12 VDC ± 25%, 0.8 A, max. 9.6 W, Ø 5.5 mm coaxial power plug, reverse polarity protection, PoE: 802.3af, Class 3, 36 V to 57 V, 0.32 A to 0.2 A, max. 11.5 W

Storage Conditions

-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

Material

Metal

Protection

IP67: IEC 60529-2013,IK10: IEC 62262:2002

Dimensions

Ø 141 mm × 99.9 mm (Ø 5.6" × 3.9")

Weight

Approx. 820 g (1.8 lb.)

2.8 to 12 mm,
horizontal FOV 102.4° to 31.2°,
vertical FOV 54.4° to 17.5°,
diagonal FOV 121.8° to 35.7°

Main stream: H.265+/H.265/H.264+/H.264,
Sub-stream: H.265/H.264/MJPEG

50 Hz: 25 fps (1920 × 1080, 1280 × 720)
60 Hz: 30 fps (1920 × 1080, 1280 × 720)

12 VDC ± 25%, 0.8 A, max. 9.6 W, Ø 5.5 mm coaxial power plug, reverse polarity protection,
PoE: 802.3af, Class 3, 36 V to 57 V, 0.32 A to 0.2 A, max. 11.5 W
