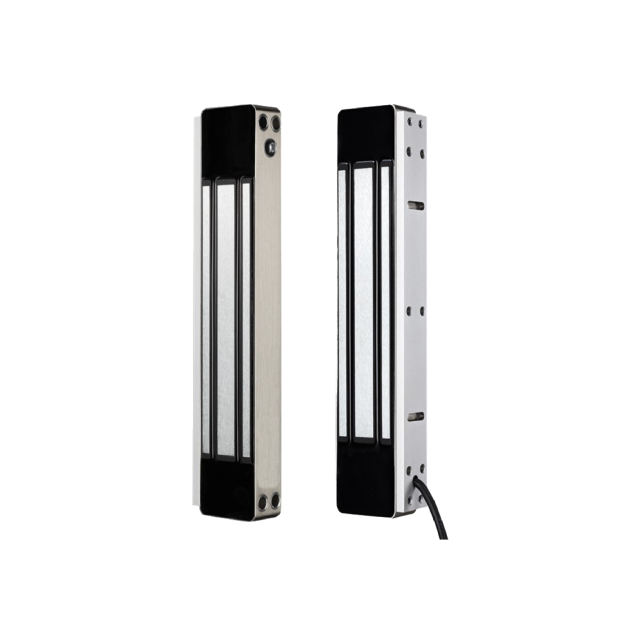

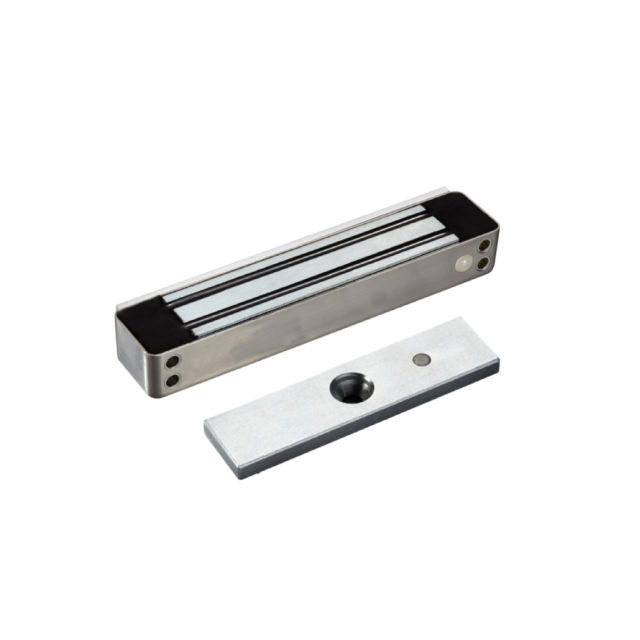

Waterproof Single Door Magnetic Lock with Signal (600lbs)
- Stainless steel finish
- Dual Voltage 12 or 24 VDC
- Suitable for wooden, glass, metal, fireproof doors
Dimensions |
235 (L) x 47.5 (W) x 25.5 (H) mm |
Armature Plate Dimensions |
180 (L) x 38.8 (W) x 13.2 (H) mm |
Input Voltage |
DC12V (Customizable DC24V) |
Current |
12V/500mA (±10%); 24V/250mA (±10%) |
LED |
Green Light indicates unlocked; Red Light indicates locked |
Signal Output |
Lock Signal NO/COM |
Holding Force |
280kg (600lbs) ±10% direct pull |
Surface Temperature |
Within 20°C above ambient temperature |
Durability Test |
1,000,000 cycles* |
Housing Treatment |
Anodized hard plating |
Shell Finish |
SUS304 Stainless Steel |
Suitability |
Wooden Door/Glass Door/Metal Door/Fireproof Door |
Waterproof Rating |
IP68 |
Weight |
2kg |
