| Items |
UTP3-GSW1604TS-P200 |
UTP3-GSW2404TS-P420 |
| Ethernet Ports |
| Downlink Ports |
16*10/100/1000 Base-T PoE RJ-45 (Auto-MDI/MDI-X) |
24*10/100/1000 Base-T PoE RJ-45(Auto-MDI/MDI-X) |
| 2*1000 Base-X SFP |
|
| PoE |
| PoE Standard |
IEEE 802.3af/at (PSE) |
IEEE 802.3af/at (PSE) |
| PoE Power Supply Type |
End-span |
End-span |
| PoE Pin Assignment |
1/2(+)，3/6(-) |
1/2(+)，3/6(-) |
| PoE Power Output |
53.5V DC |
54.5V DC |
| PoE Power |
30W max for each port, 175W max |
30W max for each port, 390W max |
| Switch Property |
| Standards |
IEEE802.3 , IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE802.3X |
| Forwarding Modes |
Store and Forward |
| Packet Buffer |
4Mbyte |
| MAC Table |
8k, support auto learning |
| Switching Capacity |
40Gbps / non-blocking |
56Gbps / non-blocking |
| Packet Forwarding Rate |
29.8Mpps |
41.7Mpps |
| Power Supply |
| Input Voltage |
100~240VAC 50/60Hz |
100~240VAC 50/60Hz |
| Power Consumption |
200W (Including PoE) |
420W (Including PoE) |
| Reliability |
| Surge Immunity |
6kV, Standard: IEC6000-4-5 |
| ESD Protection |
6kV Contact Discharge, 8kV Air Discharge, standard: IEC61000-4-2 |
| Operating Temperature |
-10℃~50℃ |
| Storage Temperature |
-40℃~85℃ |
| Operating Humidity |
5%~95% (Non-condensation) |
| Physical Parameter |
| Led Indicators |
1*PWR Indicator |
1*PWR Indicator |
| 16*Downlink Port Link Indicators |
24*Downlink Port Link Indicator |
| 16*Downlink Port PoE Indicators |
24*Downlink Port PoE Indicator |
| 4*Uplink Port Link Indicator |
4*Uplink Port Link Indicator |
| DIP Switch |
Default: all ports are free to communicate. |
| VLAN: downlink ports are isolated from each other, but can communicate with uplink ports. |

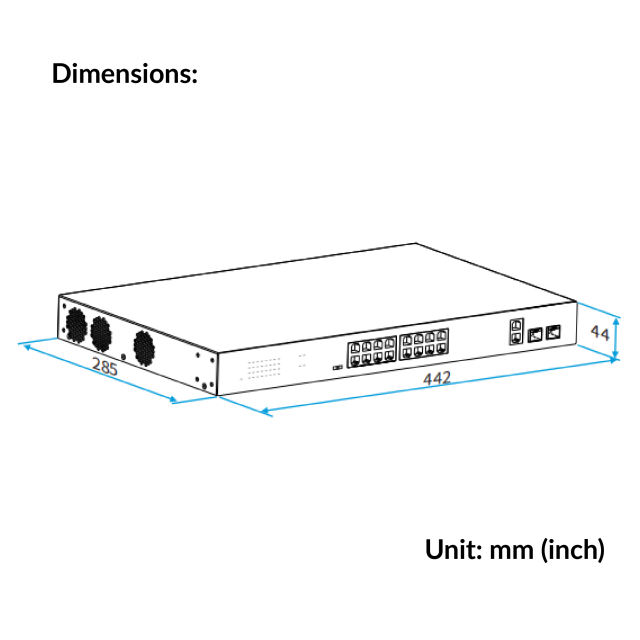

| Dimensions (W*D*H) |
442mm*285mm*44mm |
| Gross Weight |
5000g±60g |
| Net Weight |
3800g±40g |
4150g±50g |
| Material |
Metal shell |
| Installation |
Rack mounted/desktop/wall mounted |
| Certifications |
| Certifications |
CE, FCC |
