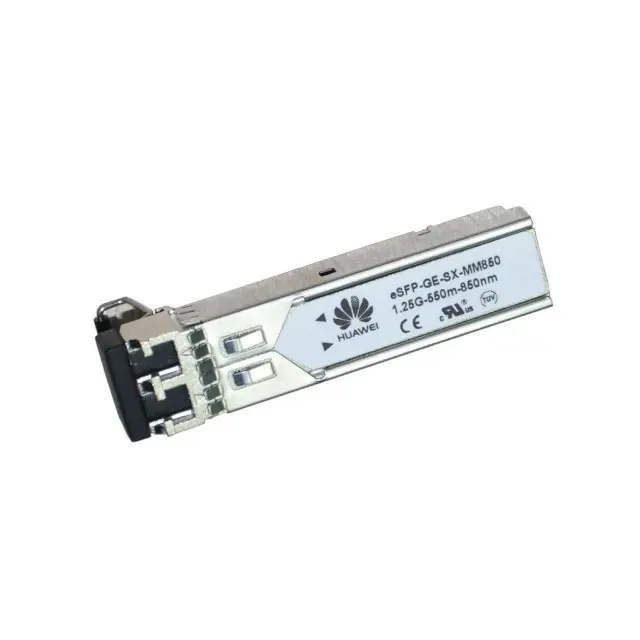

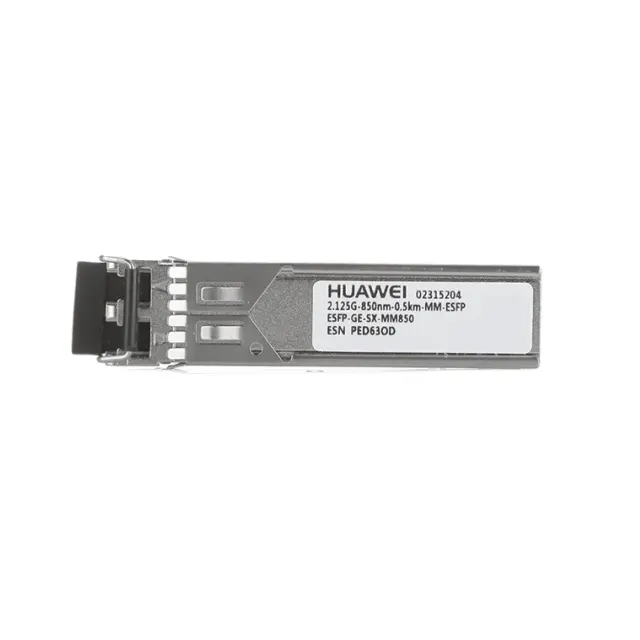

SFP Module 1G MM Duplex 550M | eSFP-GE-SX-MM850

eSFP-GE-SX-MM850
-  Extinction ratio (dB) is   ≥ 9
- Transmit power (dBm) is -9.5 to -2.5
- Maximum receiver sensitivity (dBm) is -17
S$65.00 S$130.00
(Excluding GST)
Quantity
-
+
Asia
Ubi:
Bukit batok:
Tuas:
Please contact sales for latest stock quantities
  • Description
 eSFP-GE-SX-MM850
 SFP Module 1G MM Duplex 550M
  • Extinction ratio (dB) is   ≥ 9
  • Transmit power (dBm) is -9.5 to -2.5
  • Maximum receiver sensitivity (dBm) is -17

Product Specifications
Part number 02315204
Version support Supported in V100R001C00 and later versions
Transceiver form factor eSFP
Transmission speed GE
Center wavelength (nm) 850
Standards compliance 1000BASE-SX
Connector type LC
Applicable cable and maximum transmission distance
  • Multimode fiber (with diameter of 62.5 μm): 220 m
  • Multimode fiber (OM1) (with diameter of 62.5 μm): 275 m
  • Multimode fiber (with diameter of 50 μm): 500 m
  • Multimode fiber (OM2) (with diameter of 50 μm): 550 m


Datasheet

Download Datasheet
