Model
|
RG-RAP2260(G)
|
RG-RAP2260(E)
|
Hardware Specifications
|
Radio
|
Dual-stream dual-band
|
Dual-stream dual-band
|
Protocol
|
Concurrent 802.11ax, 802.11ac wave2/wave1, 802.11a/b/g/n
|
Concurrent 802.11ax, 802.11ac wave2/wave1, 802.11a/b/g/n
|
Operating Bands
|
802.11b/g/n/ax ：2.4G ~ 2.4835GHz
802.11a/n/ac/ax ： 5G：5.150～5.350GHz，5.725～5.850GHz (country specific)
|
802.11b/g/n ：2.4G ~ 2.4835GHz
802.11a/n/ac/ax ： 5G：5.150～5.350GHz，5.725～5.850GHz (country specific)
|
Antenna
|
Internal antennas(2.4G: 3dBi，5G: 3dBi)
|
Internal antennas(2.4G: 3dBi，5G: 3dBi)
|
Spatial Streams
|
2.4G 2x2MIMO 5G 2x2MIMO
|
2.4G 4x4MIMO 5G 4x4MIMO
|
Max Throughput
|
Up to 574Mbps at 2.4G
Up to 1201Mbps at 5G
1.775Gbp per AP
|
Up to 800Mbps at 2.4G
Up to 2402Mbps at 5G
3.202Gbp per AP
|
Maximum output power of the transmitter
(single stream)
|
2.4GHz(2.4~2.4835GHz)：23dBm
5GHz(5.150~5.250GHz,5.725~5.850GHz)：23dBm
(country-specific，comply with local laws)
|
2.4GHz(2.4~2.4835GHz)：23dBm
5GHz(5.150~5.250GHz,5.725~5.850GHz)：23dBm
(country-specific，comply with local laws)
|
Adjustable Power
|
1dBm
|
1dBm
|
Dimensions
|
194mm×194mm×35mm (excluding mounting kits)
|
220mm×220mm×35mm (excluding mounting kits)
|
Weight
|
0.56kg (excluding mounting kits)
|
1.05kg (excluding mounting kits)
|

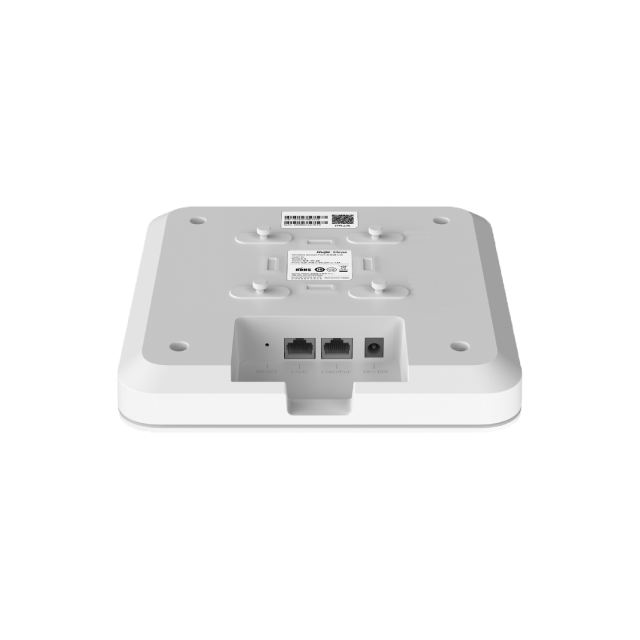

Service Ports
|
2 10/100/1000M Base-T Ethernet ports, PoE/LAN1 port supports PoE
|
1 10/100/1000M/2.5G Base-T Ethernet ports supports PoE;
1 10/100/1000M Base-T ,Ethernet ports
|
Management Port
|
NA
|
NA
|
LED Indicator
|
Single indicator (green light)
|
Single indicator (green light)
|
Power Supply
|
Local power supply, DC 12V/1.5A (Note: The power adapter is sold as an optional accessory), 802.3at PoE (Warning：802.3af or non-standard POE adapter may cause unknown issues. Please use Ruijie POE+ switch or 802.3at POE adapter as power supplier)
|
Power Consumption
|
≤ 15.3W
|
≤ 25.4W
|
Environment
|
Operating temperature: 0°C～40°C
|
Operating temperature: 0°C～40°C
|
Storage temperature: -40°C～70°C
|
Storage temperature: -40°C～70°C
|
Operating humidity: 5％～95％
(non-condensing)
|
Operating humidity: 5％～95％
(non-condensing)
|
Storage humidity: 5％～95％
(non-condensing)
|
Storage humidity: 5％～95％
(non-condensing)
|

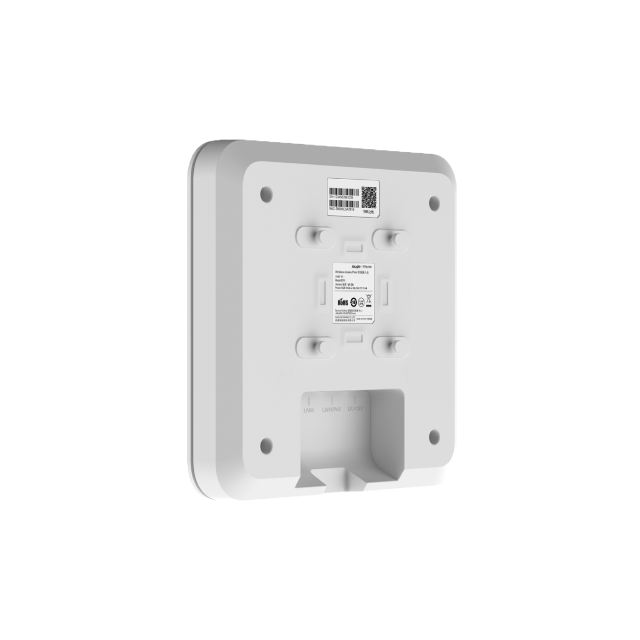

Installation
|
Ceiling/wall-mountable
|
Ceiling/wall-mountable
|
