AC1300 Dual Band Ceiling Mount Access Point (Ruijie) | RG-RAP2200(E)

Name: AC1300 Dual Band Ceiling Mount Access Point (Ruijie) | RG-RAP2200(E)
Brand: Viskou – Connecting Intelligence, Powering The Future
SKU: TEMP113654
Price: 229.6 SGD
Availability: InStock

RG-RAP2200(E)

- Dual Band Ceiling Mount Access Point
- 867Mbps at 5GHz + 400Mbps at 2.4GHz
- 2 10/100/1000base-t Ethernet uplink port
- Internal Antennas
- Support 802.11a/b/g/n/ac Wave1/Wave2

S$229.60 ~~S$475.60~~

(Excluding GST)

Add to Favorite Items

Description

RG-RAP2200 Series dual-band ceiling mount AP

This is a high-performance ceiling mount AP for indoor large-area Wi-Fi coverage scenarios. The device supports 802.3af/at PoE and 12V DC local power supply. The dual LAN ports design facilitates the expansion of third-party devices to meet the needs of more networking scenarios. Compliant with 802.11a/b/g/n/ac Wave1/Wave2 Wi-Fi protocol, RG-RAP2200 supports MU-MIMO dual-stream technology and offers built-in omnidirectional antennas. It can operate concurrently at 2.4GHz and 5GHz, providing high-speed wireless access of 400Mbps at 2.4GHz, 867Mbps at 5GHz and up to 1267Mbps per AP. Its coverage of over 20 meters makes it an ideal choice for many wireless scenarios, especially in offices, commercial industry, hotels, service scenarios, etc.

Model	RG-RAP2200(E)	RG-RAP2200(F)
Hardware specifications
Radio	Dual-stream dual-band
Protocol	Concurrent 802.11ac wave2, wave1, 802.11a/b/g/n
Operating Bands	802.11b/g/n : 2.4G ~ 2.4835GHz 802.11a/n/ac : 5G : 5.150 ~ 5.350GHz , 5.725 ~ 5.850GHz
Antenna	Array antennas ( 2.4G: 2dBi , 5G: 2dBi )
Spatial Streams	2.4G 2x2MIMO 5G 2x2MIMO
Max Throughput	Up to 400Mbps at 2.4G Up to 867Mbps at 5G 1.267Gbp per AP
Modulation	OFDM: BPSK@6/9Mbps, QPSK@12/18Mbps, 16-QAM@24Mbps, 64-QAM@48/54Mbps DSSS: DBPSK@1Mbps, DQPSK@2Mbps, and CCK@5.5/11Mbps MIMO-OFDM: BPSK, QPSK , 16QAM, 64QAM and 256QAM
Receive Sensitivity	11b: -91dBm (1Mbps), -88dBm (5Mbps), -85dBm (11Mbps) 11a/g: -89dBm (6Mbps), -80dBm (24Mbps), -76dBm (36Mbps), -71dBm (54Mbps) 11n: -83dBm@MCS0, -65dBm@MCS7, -83dBm@MCS8, -65dBm@MCS15 11ac HT20: -83dBm (MCS0), -57dBm (MCS9) 11ac HT40: -79dBm (MCS0), -57dBm (MCS9) 11ac HT80: -76dBm (MCS0), -51dBm (MCS9)
Maximum Transmit Power	5.725 ～5.850GHz : ≤20dBm (EIRP) 5.150 ～5.350GHz : ≤20dBm (EIRP) 2.4 ～2.4835GHz : ≤20dBm (EIRP)
Adjustable Power	1dBm	1dBm
Dimensions	194mm×194mm×35mm (excluding mounting kits)	194mm×194mm×35mm (excluding mounting kits)
Weight	0.45kg (excluding mounting kits)	0.45kg (excluding mounting kits)

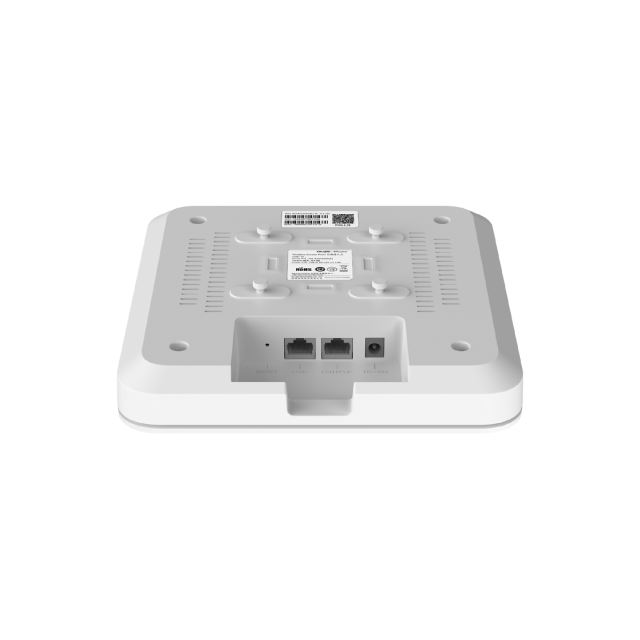

Service Ports	2 10/100/1000Base-T Ethernet ports, PoE/LAN1 port supports PoE	2 10/100Base-T Ethernet ports, PoE/LAN1 port supports PoE
Management Port	NA	NA
Power Supply	Power Supply Single indicator (green light)
Power Consumption	Local power supply, DC 12V/1.5A (Note: The power adapter is sold as an optional accessory) 802.3af/802.3at PoE
Environment	≤ 12.95W
	Operating temperature: 0°C ~ 40°C
	Storage temperature: -40°C ～70°C
	Operating humidity: 5 %～95 %（non-condensing ）
Installation	Storage humidity: 5 %～95 %（non-condensing ）
Safety Standard	GB4943, IEC 60950-1
EMC Standard	GB9254 , EN301 489 , EN50155 , EN50121 , EN55032 , EN61000 , EN55035
Vibration Standard	IEC61373
Radio Standard	SRRC certification, EN300 328, EN301 893
MTBF	>400000H	>400000H
