Hardware specifications
|
Radio
|
Dual-stream dual-band
|
Protocol
|
Concurrent 802.11ac wave2, wave1, 802.11a/b/g/n
|
Operating Bands
|
802.11b/g/n: 2.4G ~ 2.4835GHz
802.11a/n/ac: 5G: 5.150~5.350GHz, 5.725~5.850GHz
|
Antenna
|
PF antenna(2.4G: 2dBi, 5G: 2dBi)
|
Spatial Streams
|
2.4G 2x2MIMO 5G 2x2MIMO
|
Max Throughput
|
2.4G: up to 400Mbps
5G: up to 867Mbps
Access rate per AP: 1.267Gbps
|
Modulation
|
OFDM: BPSK@6/9Mbps, QPSK@12/18Mbps, 16-QAM@24Mbps, 64-QAM@48/54Mbps
DSSS: DBPSK@1Mbps, DQPSK@2Mbps, and [email protected]/11Mbps
MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM and 256QAM
|
Receive Sensitivity
|
11b: -91dBm(1Mbps), -88dBm(5Mbps), -85dBm(11Mbps)
11a/g: -89dBm(6Mbps), -80dBm(24Mbps), -76dBm(36Mbps), -71dBm(54Mbps)
11n: -83dBm@MCS0, -65dBm@MCS7, -83dBm@MCS8, -65dBm@MCS15
11ac HT20: -83dBm(MCS0), -57dBm(MCS9)
11ac HT40: -79dBm(MCS0), -57dBm(MCS9)
11ac HT80: -76dBm(MCS0), -51dBm(MCS9)
|
Maximum Transmit Power
|
5.725~5.850GHz: ≤18dBm (EIRP)
5.150~5.350GHz: ≤18dBm (EIRP)
2.4~2.4835GHz: ≤18dBm (EIRP)
|
Adjustable Power
|
1dBm
|
Dimensions
|
126mm×86mm×50mm
|
Weight
|
0.24kg
|
Service Ports
|

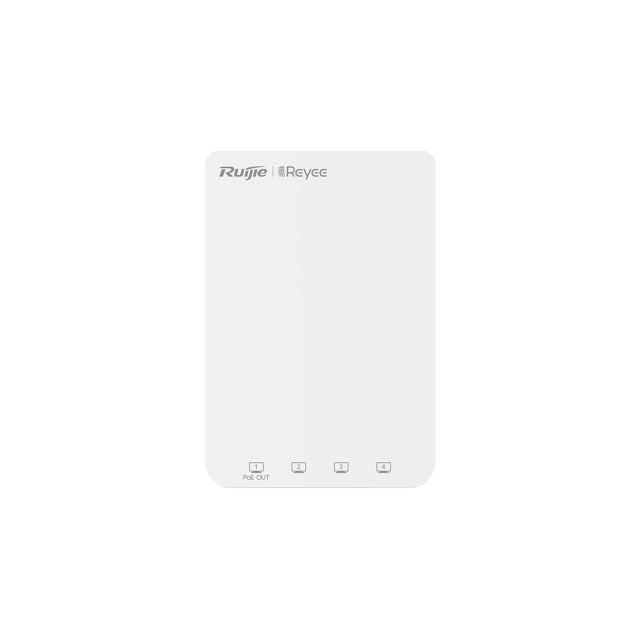

Front: 4 10/100/1000Base-T Ethernet ports

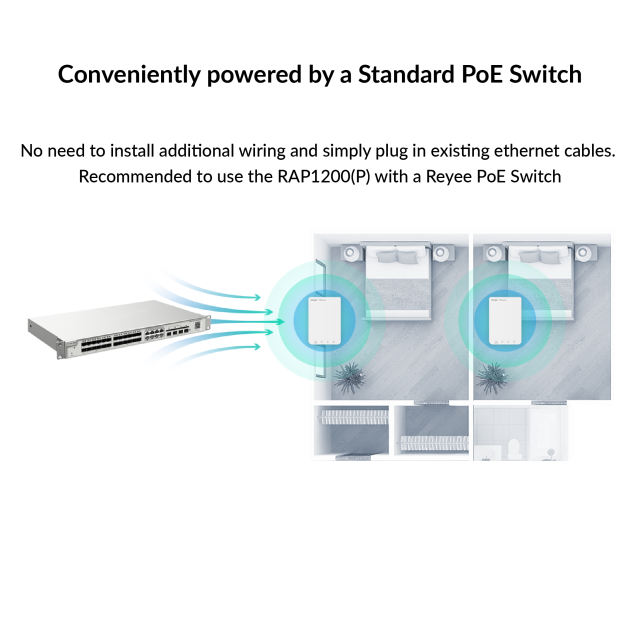

LAN1 port supports IEEE.802.3af PoE OUT

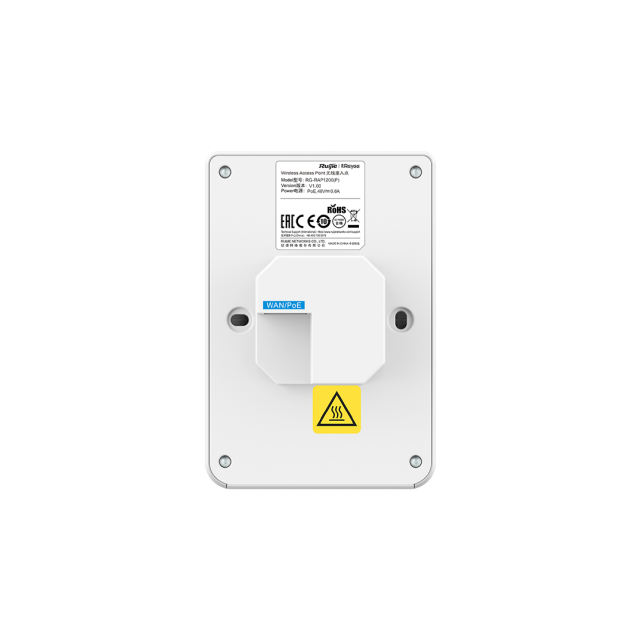

Rear: 1 10/100/1000Base-T Ethernet port
|
Management Port
|
N/A
|
LED Indicator
|
1 LED indicator
|
Power Supply
|
1dBm
|
Power Consumption
|
≤8W
|
Environment
|
Operating temperature: 0°C~40°C
Storage temperature: -40°C~70°C
Operating humidity: 0%~100%(non-condensing)
Storage humidity: 0%~100%(non-condensing)
|
Installation
|
Wall plate installation
|
Safety Standard
|
GB4943, IEC 62368-1
|
EMC Standard
|
GB9254,EN301 489, EN50155, EN50121, EN55032, EN61000, EN55035
|
Vibration Standard
|
IEC61373
|
Radio Standard
|
SRRC certification, EN300 328, EN301 893
|
MTBF
|
>250000H
|
Software Features
|
Operating Mode
|
AP mode and routing mode
|
WLAN
|
Maximum number of clients: 110
Recommended number of clients: 80
Up to 8 SSIDs
Support SSID hiding Configuring the authentication mode, encryption mechanism, and VLAN attributes for each SSID
SSID-based and radio-based STA limit
Support Layer 2 user isolation
|
Roaming
|
Support Layer 2 and Layer 3 roaming
|
Security
|
Support PSK authentication
Support static blacklist and whitelist
Support WPA (TKIP), WPA2 (AES), and WPA-PSK data encryption
|
Routing
|
Support static IP address, DHCP, PPPoE Dial Up
|
Management and maintenance
|
Support unified networking of all network equipment
Support local or remote management with Ruijie Cloud app
Support local management with web
Support remote management with Ruijie Cloud platform
|
