AC1300 Dual Band Wall-plate Access Point (Ruijie) | RG-RAP1200(F)

RG-RAP1200(F)
- Dual-band FE wall plate AP
- 867Mbps at 5GHz + 400Mbps at 2.4GHz
- 2 10/100base-t Ethernet port  include 1 uplink port
- Internal Antennas
- Support 802.11a/b/g/n/ac Wave1/Wave2
S$91.00 S$165.00
(Excluding GST)
Quantity
-
+
30 In Stock 5 In Stock, Bukit batok Warehouse
2 In Stock, Ubi Warehouse
0 In Stock, RU Warehouse
0 In Stock, SG Warehouse
0 In Stock, AU Warehouse
23 In Stock, Tuas
, Tuas
2 In Stock, Ubi
5 In Stock, Bukit batok
23 In Stock, Tuas
  • Description

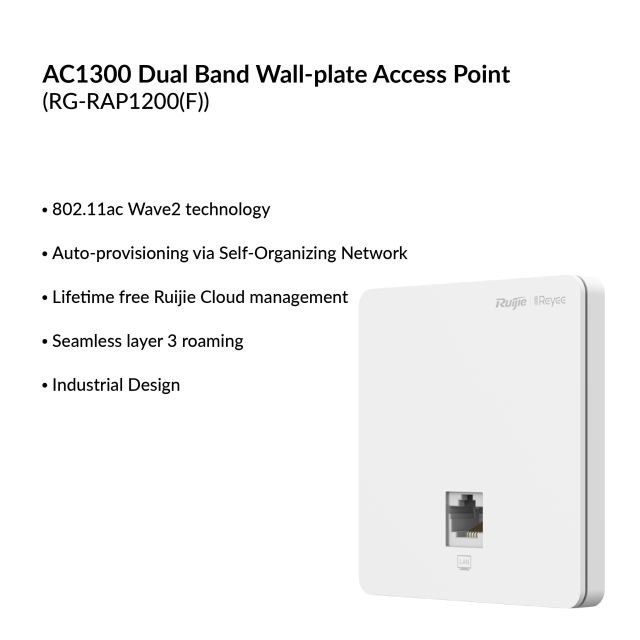

Ruijie Reyee Series RG-RAP1200(F) dual-band FE wall plate AP

This is a high-performance wall plate AP. With 802.3af/at PoE support, the AP provides a LAN port at the front to facilitate the expansion of IPTV, IP phone, etc. Compliant with 802.11a/b/g/n/ac Wave1/Wave2 Wi-Fi protocol, the AP supports MU-MIMO dual-stream technology and offers built-in omnidirectional antennas. It can operate concurrently at 2.4GHz and 5GHz, providing high-speed wireless access of 400Mbps at 2.4GHz, 867Mbps at 5GHz and up to 1267Mbps per AP. Its compact 86mm wall plate installation design facilitates quick installation directly into a standard 86mm wall junction box, which is an ideal choice for deployment such as offices, commercial industry, hotels, service scenarios, etc.


Radio
Dual-stream dual-band
Protocol
Concurrent 802.11b/g/n/ac
Operating Bands
802.11b/g/n 2.4G ~ 2.4835GHz
802.11a/n/ac 5G5.1505.350GHz5.475.7255.7255.850GHz
(Note: The operating bands vary according to different countries)
Antenna
PCB antenna
Spatial Streams
2.4G: 2 Spatial Streams,2x2 MIMO
5G: 2 Spatial Streams,2x2 MIMO
Max Throughput
2.4G: up to 400Mbps
5G: up to 866.7Mbps
Modulation
OFDM: BPSK@6/9Mbps, QPSK@12/18Mbps, 16-QAM@24Mbps, 64-QAM@48/54Mbps
DSSS: DBPSK@1Mbps, DQPSK@2Mbps, and [email protected]/11Mbps
MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM and 256QAM
Receive Sensitivity
11b-97dBm(1Mbps) -92dBm(5Mbps) -89dBm(11Mbps)
11a/g-94dBm6Mbps),-85dBm24Mbps),-82dBm36Mbps),-76.5dBm54Mbps
11n-93.5dBm@MCS0-74dBm@MCS7-74dBm@MCS15
11acHT20-92.5dBmMCS0, -68.5dBmMCS8
11acHT40-89dBmMCS0, -64dBmMCS9
11acHT80-86dBmMCS0, -60.5dBmMCS8
Maximum Transmit Power
20dBm (adjustable)
Adjustable Power
1dBm
Dimensions
86*86*29.3
Weight
<0.25kg
Service Ports
Front
1 10/100Mbps Ethernet port
Rear

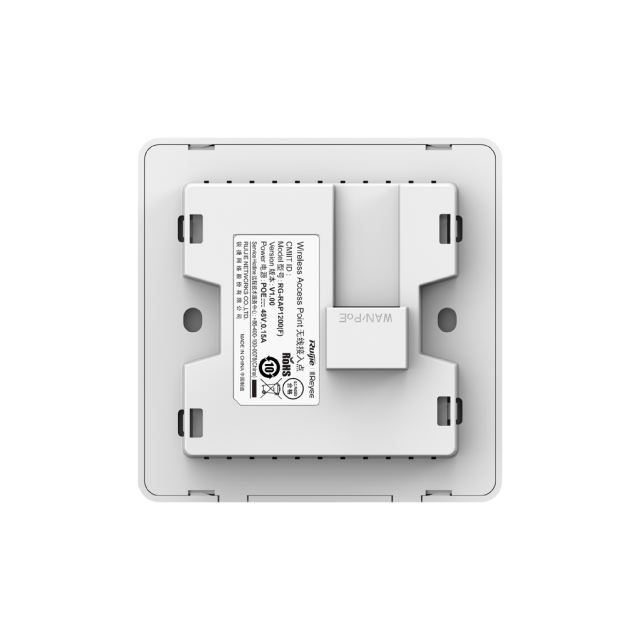

1 10/100Mbps PoE Ethernet port
Management Port
N/A
LED Indicator
Support
Power Supply
Support 802.3af power supply
Power Consumption
8W
Environment
Operating temperature: 0°C40°C
Storage temperature: -40°C70°C
Operating humidity: 5%~95%(non-condensing
Storage humidity: 5%~95%(non-condensing
Installation
86mm wall plate installation
IP Rating
IP41
Safety Standard
GB4943, IEC62368-1
EMC Standard
GB9254EN301 489EN50155EN50121EN55032EN61000EN55035
Vibration Standard
IEC61373
Radio Standard
EN300 328, EN301 893
Software Features
Operating Mode
AP mode and routing mode
WLAN
Maximum number of clients: 110
Recommended number of clients: 40 (8 at 2.4GHz, 32 at 5GHz)
Up to 8 SSIDs
Support SSID hiding
Configuring the authentication mode, encryption mechanism, and VLAN attributes for each SSID
SSID-based and radio-based STA limit
Support Layer 2 user isolation
Roaming
Support Layer 2 and Layer 3 roaming
Security
Support PSK authentication
Support static blacklist and whitelist
Support WPA (TKIP), WPA2 (AES), and WPA-PSK data encryption
Routing
Support static IP address, DHCP, PPPoE Dial Up
Management and maintenance
Support unified networking of all network equipment
Support local or remote management with Ruijie Cloud app
Support local management with web
Support remote management with Ruijie Cloud platform
Platform management features
Automatic RF adjustment via the platform
Unified configuration via the platform
Unified monitoring via the platform


Datasheet

Download Datasheet
