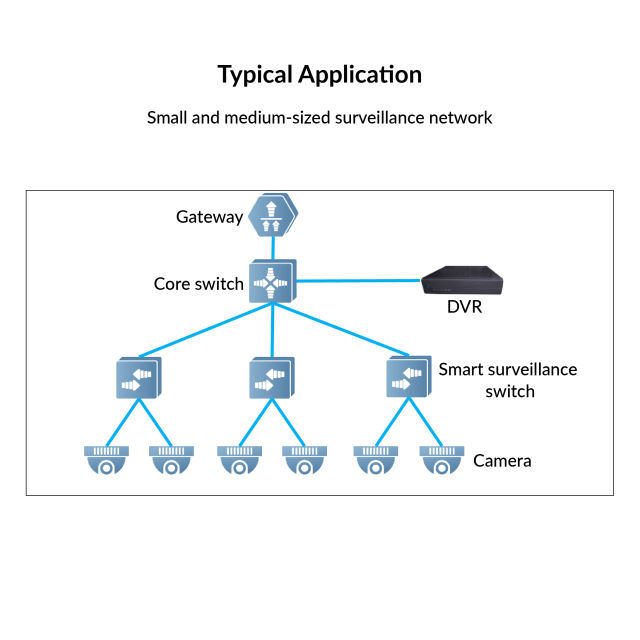

Ruijie Reyee smart surveillance switches offer a variety of port options to meet the needs of video surveillance networks of different scales. Ruijie Reyee smart surveillance switches support full-power PoE output to ensure that all cameras can be powered simultaneously when connected to the switch at maximum capacity. In addition, Ruijie Real-easy Series smart surveillance switches provide simple and easy-to-use management features while offering plug and play with default factory configuration, which can quickly locate the surveillance network faults, initiate PoE port restart, perform VLAN configuration, etc. Ruijie Cloud app and Ruijie Cloud platform remote management is also supported, making the operation and maintenance of the surveillance network easier and more convenient, while reducing operation and maintenance costs.
| Power Consumption |
≤ 60W |
| Power supply |
External power adapter
100-240V |
| Dimensions (W x D x H) |
148mm*78mm*26mm |
| Weight |
0.9 kg (with package) |
| MTBF |
>200K |
| Operating temperature |
0 to 40°C |
| Storage temperature |
-40~70ºC |
| Operating humidity |
10% to 90% RH |
| Storage humidity |
5% to 95% RH |
| Operating Altitude |
-500 ~ 5000 meters |
| FAN |
Fanless |
| Management |
Support management and configuration through web management interface, MACC cloud platform and mobile app |
| Safety Standard Ground Resistance |
GB4943-2011, EN 62638-1 |
| EMC |
GB9254-2008, EN 55032, EN61000-3-2, EN61000-3-3, EN 55035 |
