Face Picture Library
|
Up to 16 face picture libraries
|
Human/Vehicle Analysis
|
Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights; Quick search by object or event type is supported;
|
Human/Vehicle Analysis
|
Up to 4-ch Note: Face picture comparison, motion detection 2.0 and perimeter protection cannot be enabled at the same time. Enable one function will make the other two unavailable
|
Video Compression
|
H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
|
Encoding Resolution
|
When 1080p Lite mode is not enabled: 3K lite/5 MP lite/4 MP lite/1080p/720p/VGA/WD1/4CIF/CIF; When 1080p Lite mode is enabled: 3K lite/5 MP lite/4 MP lite/1080p lite/720p lite/VGA/WD1/4CIF/CIF
|
Frame Rate
|
Main stream:
When 1080p Lite mode not enabled:
For 3K stream access: 3K lite@12fps;4 MP lite/1080p@15fps;720p/WD1/4CIF/VGA/CIF@20fps
For 5 MP stream access: 5 MP lite@12fps ;4 MP lite/1080p@15fps;720p/WD1/
4CIF/VGA/CIF@20fps For 4 MP stream access: 4 MP lite/1080p@15fps;720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)
For 1080p stream access: 1080p/720p@15fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
When 1080p Lite mode enabled: 3K lite/5 MP lite@12fps;4 MP lite@15fps;1080p lite/720p lite/VGA/WD1/ 4CIF/CIF@25fps (P)/30fps (N)
Sub-stream: WD1/4CIF@12fps; CIF@25fps (P)/30fps (N)
|
IP Video Input
|
2-ch (up to 10-ch)
Enhanced IP mode on:
4-ch (up to 12-ch), each up to 4 Mbps
Up to 6 MP resolution Support H.265+/H.265/H.264+ /H.264 IP cameras
|
Analog Video Input
|
8-ch BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
|
SATA
|
1 SATA interface, up to 10 TB capacity for each disk
|
USB Interface
|
Front panel: 1 × USB 2.0; Rear panel: 1 × USB 2.0
|

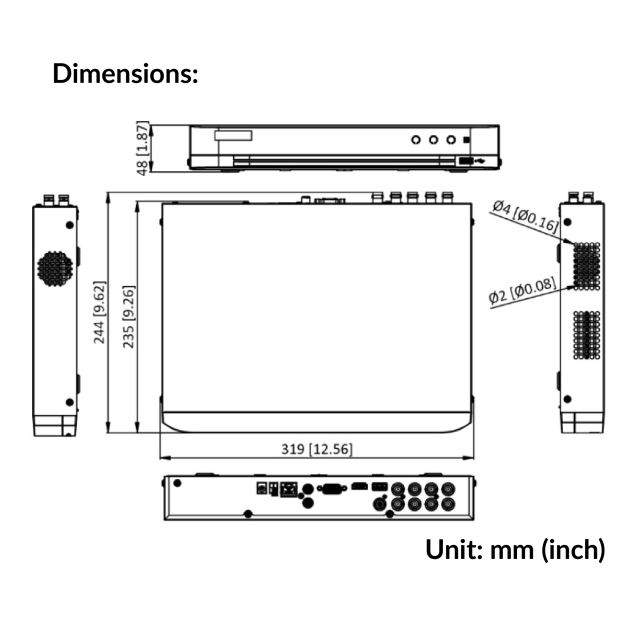

Dimension (W × D × H)
|
315 × 242 × 45 mm (12.4 × 9.5 × 1.8 inches)
|
Weight
|
≤ 1.78 kg (3.9 lb) (without HDD)
|
